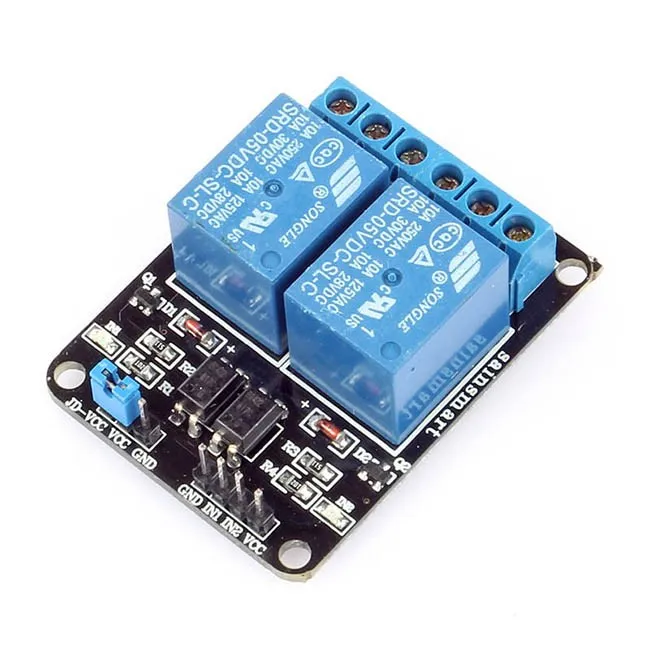

5V Relay 2 Channel

Maximum load: AC 250V/10A, DC 30V/10A

Trigger current: 5mA

Working voltage: 5V

Module size: 50 x 26 x 18.5mm (L x W x H)

Four mounting bolts holes, diameter 3.1mm

DC+: positive power supply (VCC)

DC-: negative power supply (GND)

IN: can be high- or low-level control relay

NO: normally open relay interface

COM: Common Interface Relays

NC: normally closed relay interface

Note: Power must be DC voltage and need to be consistent with the voltage relay
