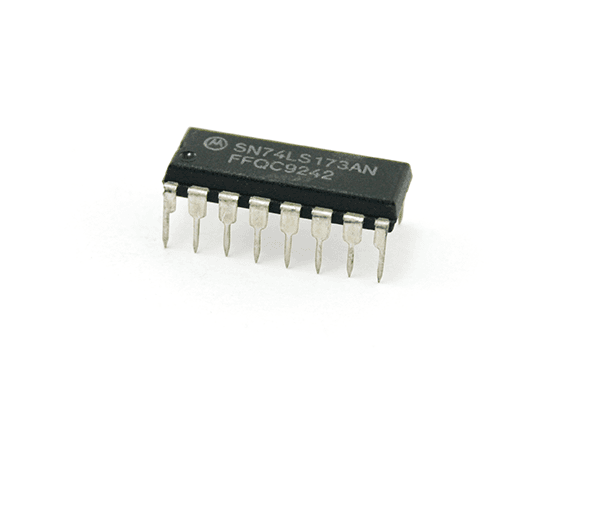

74173 IC 4-Bit D-Type Registers With 3-State Outputs

The ’173 and ’LS173A 4-bit registers include D-type flip-flops featuring totem-pole 3-state outputs capable of driving highly capacitive or relatively low-impedance loads. The high-impedance third state and increased high-logic-level drive provide these flip-flops with the capability of being connected directly to and driving the bus lines in a bus-organized system without the need for interface or pull-up components. Up to 128 of the 74LS173 outputs can be connected to a common bus and still drive two Series 74LS TTL normalized loads, respectively. To minimize the possibility that two outputs will attempt to take a common bus to opposite logic levels, the output control circuitry is designed so that the average output disable times are shorter than the average output enable times. Gated enable inputs are provided on these devices for controlling the entry of data into the flip-flops. When both data-enable (G1, G2) inputs are low, data at the D inputs are loaded into their respective flip-flops on the next positive transition of the buffered clock input. Gate output-control (M, N) inputs also are provided. When both are low, the normal logic states (high or low levels) of the four outputs are available for driving the loads or bus lines. The outputs are disabled independently from the level of the clock by a high logic level at either output-control input. The outputs then present a high impedance and neither load nor drive the bus line. Detailed operation is given in the function table. The 74LS173 is characterized for operation from 0°C to 70°C. This product is known as SN74LS173AN, SN74LS173AD, 74LS173 4-bit D-type Registers with 3-State Output IC, 74LS173 3-State Output IC, 74LS173 D-type Registers with 3-State Output IC
