The Arduino Nano CH340 with USB Type-C: A Comprehensive Overview

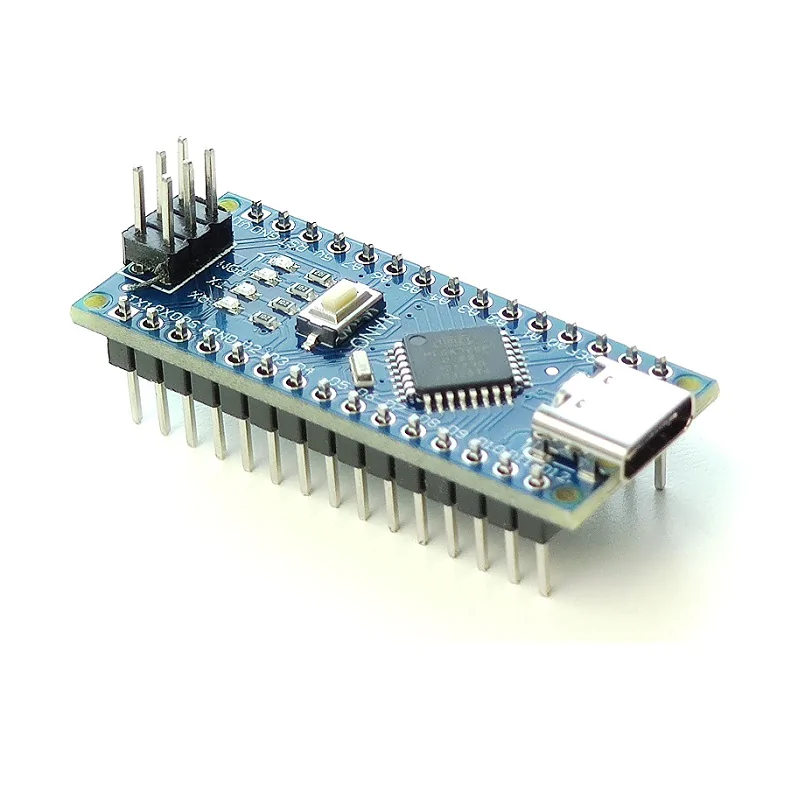

The Arduino Nano CH340 is a compact and versatile development board that embodies the spirit of innovation within the Arduino ecosystem. Based on the robust ATmega328P microcontroller, this board operates at 5V and 16MHz, making it a reliable choice for a wide range of applications. With its USB Type-C connector, the Nano CH340 not only meets the demands of modern connectivity but also enhances its usability for developers and hobbyists alike.

Technical Specifications

The Arduino Nano CH340 is equipped with impressive specifications that make it suitable for various projects:

• Microcontroller: The ATmega328P features:
  • Flash Memory: 32 KB (of which 2 KB is reserved for the bootloader).
  • SRAM: 2 KB for temporary data storage during operation.
  • EEPROM: 1 KB, allowing for data retention even when the power is off.
• Digital I/O Pins: The board includes 14 digital input/output pins, with 6 capable of PWM output, allowing for versatile control of components such as LEDs, motors, and other digital devices.
• Analog Input Pins: Equipped with 8 analog input pins, the Nano can read variable signals from sensors, providing a range of 0 to 5V.
• Communication Interfaces: The board supports multiple protocols:
  • UART: For serial communication with other devices.
  • I2C: For connecting multiple devices using just two wires, ideal for sensor networks.
  • SPI: For high-speed communication with peripherals, such as SD cards and displays.
• Operating Voltage: The Nano operates at a voltage of 5V, with an input voltage range of 7-12V for external power supply, making it adaptable for various power sources.

USB Type-C Connector

The integration of a USB Type-C connector is a significant advancement for the Arduino Nano CH340:

• Reversible Design: The Type-C connector can be plugged in either way, making it user-friendly and eliminating the hassle of incorrect plug orientation.
• Power Delivery: It can support higher power levels, which is beneficial for powering more demanding projects or peripherals, such as motors or sensors that require more energy.

Programming and Development

The Nano CH340 is fully compatible with the Arduino IDE, a user-friendly platform that simplifies coding, uploading, and debugging:

• Ease of Use: The Arduino IDE offers a straightforward interface and a vast library of pre-written code, allowing users to quickly prototype and develop their projects.
• Driver Installation: Users may need to install the CH340 driver on their computers for the USB interface to function properly. This process is typically simple and has extensive community support.

Practical Applications

The versatility of the Arduino Nano CH340 enables it to excel in various applications, including:

• Robotics: Its compact size and diverse I/O options make it ideal for controlling motors and sensors within robotic systems, facilitating projects like autonomous vehicles or robotic arms.
• Home Automation: The board can be employed to create smart home devices, such as automated lighting systems, smart thermostats, and home security systems.
• Wearable Technology: Due to its small form factor, it can be integrated into wearable devices for health monitoring, fitness tracking, or even interactive clothing.
• IoT Projects: With additional modules such as Wi-Fi or Bluetooth, the Nano can be utilized in Internet of Things (IoT) applications, enabling the connection of sensors and devices to the internet for data collection, remote control, and monitoring.

Advanced Features

In addition to its basic functionalities, the Arduino Nano CH340 offers several advanced features:

• Interrupts: The board supports external interrupts on specific pins, allowing for responsive designs that can react to events such as button presses or sensor signals.
• PWM and Analog Output: The ability to generate PWM signals on several pins allows for dimming LEDs or controlling motor speeds, while the analog output functionality can create varying voltage signals for more complex applications.
• Libraries and Community Support: The extensive library ecosystem provided by the Arduino community supports a multitude of sensors, displays, and other components, significantly speeding up development time.

Conclusion

In conclusion, the Arduino Nano CH340 with USB Type-C represents a powerful and versatile tool for both beginners and experienced developers. Its combination of a robust microcontroller, modern connectivity options, and extensive community support makes it an excellent choice for a variety of electronic projects. Whether building a simple prototype or a complex system, the Nano CH340 provides the functionality and flexibility needed to bring innovative ideas to fruition. Embracing both tradition and modernity, this board is a testament to the ever-evolving world of electronics and programming. Its adaptability and user-friendly features make it an essential component for anyone looking to explore and create in the field of technology, pushing the boundaries of what’s possible in DIY electronics and smart systems.
