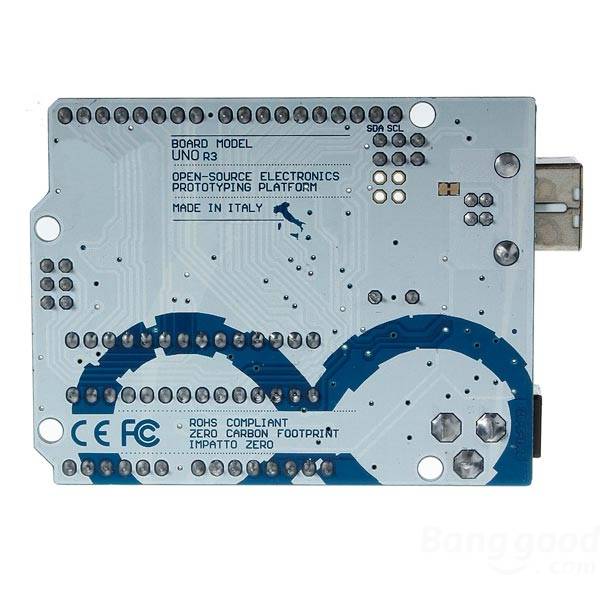

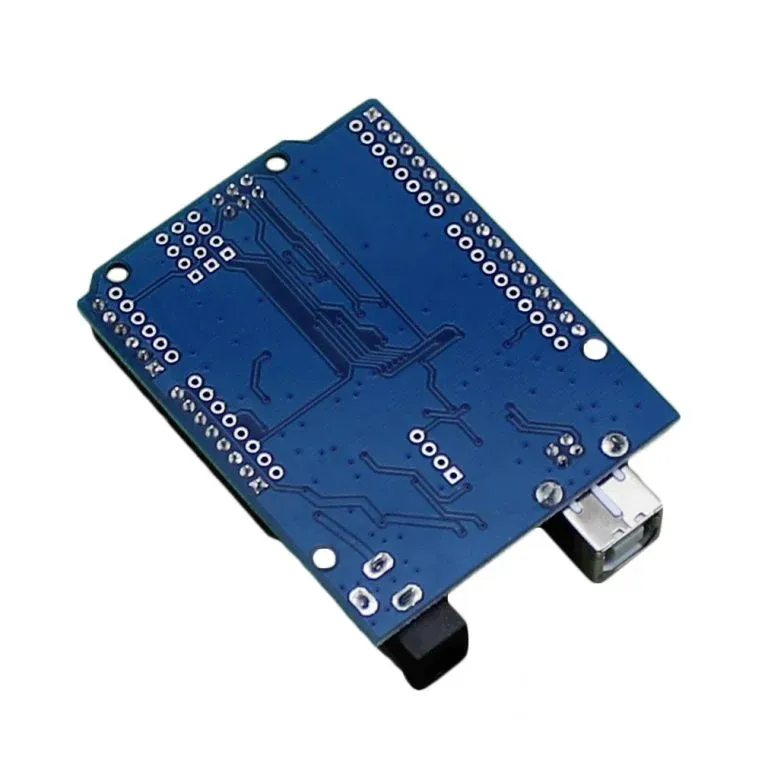

Arduino Uno R3 CH340

Arduino Uno R3 with a CH340 chip refers to a specific variant of the popular Arduino Uno board that uses the CH340 USB-to-serial converter instead of the more common FTDI chip. Here is an overview of the Arduino Uno R3, its features, specifications, and why the CH340 variant might be chosen.

Overview of Arduino Uno R3

The Arduino Uno R3 is one of the most popular microcontroller boards in the Arduino ecosystem, primarily designed for beginners and educational purposes. It provides a platform for building electronic projects and prototypes.

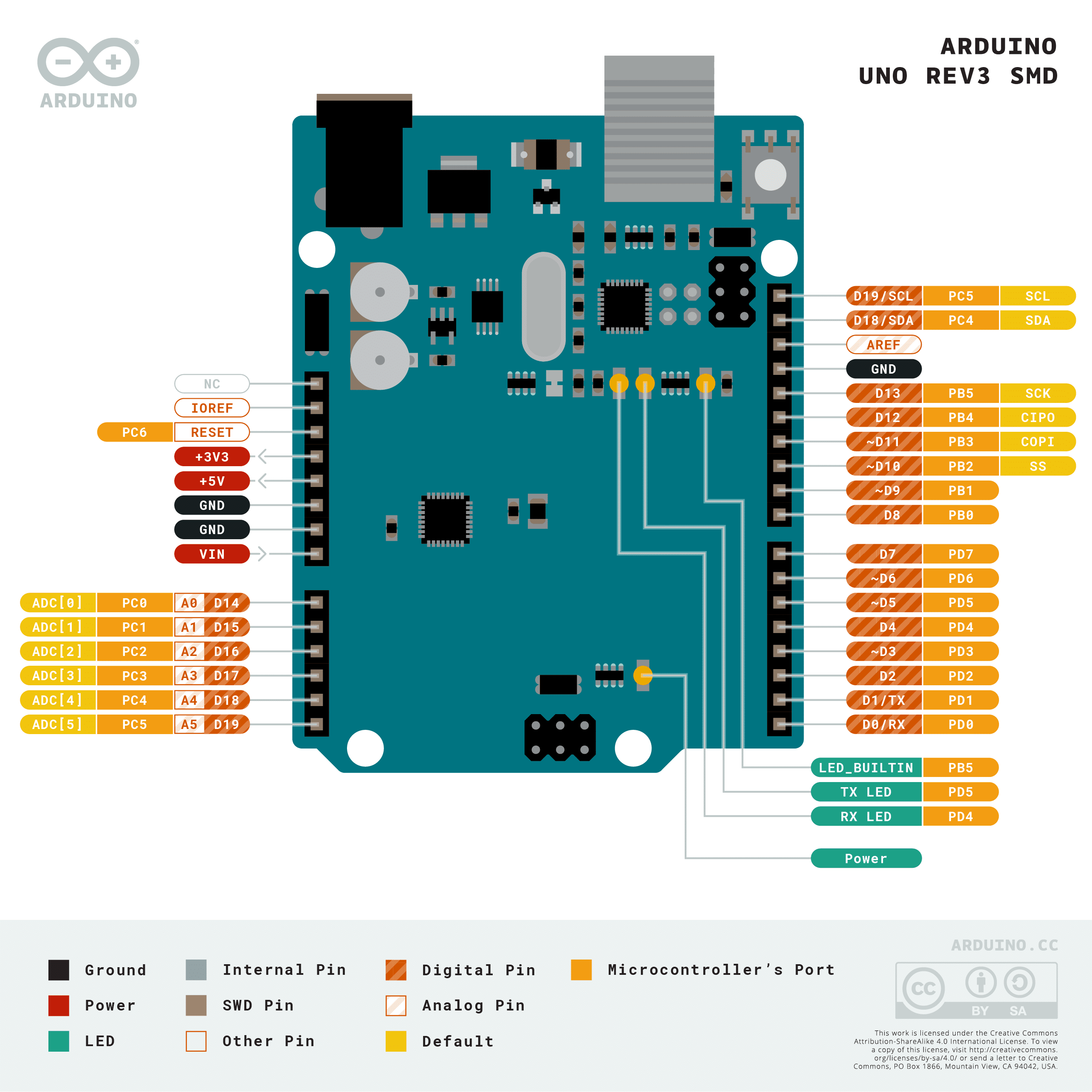

Features

1. Microcontroller:
   • ATmega328P (16 MHz)
2. Digital I/O Pins:
   • 14 digital pins (6 can be used as PWM outputs)
3. Analog Input Pins:
   • 6 analog inputs (10-bit resolution)
4. Flash Memory:
   • 32 KB (of which 0.5 KB is used for the bootloader)
5. SRAM:
   • 2 KB
6. EEPROM:
   • 1 KB
7. Operating Voltage:
   • 5V
8. Input Voltage (recommended):
   • 7-12V (can accept input voltage from 6-20V)
9. USB Interface:
   • The CH340 chip provides USB-to-serial conversion, allowing for programming and serial communication with a computer.
10. LED Indicators:
    • Built-in LED on pin 13 and power indicator LEDs.
11. ICSP Header:
    • For programming the ATmega328P directly, without using the bootloader.
12. Board Dimensions:
    • 68.6mm x 53.4mm

CH340 Chip

• The CH340 is a USB-to-serial converter chip developed by WCH. It serves as an alternative to the FTDI chip and is often used because it is cost-effective and provides similar functionality.
• Driver Support: The CH340 requires drivers to be installed on your computer to enable communication between the Arduino board and the USB port. Drivers are available for Windows, macOS, and Linux, making the boards compatible with multiple operating systems. However, you may need to install the CH340 drivers separately, which are freely available online.

Advantages of Using Arduino Uno R3 CH340

1. Cost-Effective: Devices with the CH340 chip can be cheaper than those using the FTDI chip, making them attractive for hobbyists and budget-oriented projects.
2. Widespread Support: The Arduino community has a lot of resources, libraries, and documentation available for the Uno R3, which is consistent across all versions, including those with CH340.
3. Ease of Use: As with all Arduino boards, the Uno R3 with CH340 maintains the easy programming and circuit integration feature of the Arduino ecosystem.

Applications

The Arduino Uno R3 CH340 can be used in a variety of applications, including but not limited to:

• Robotics: Building controllers for robots and autonomous devices.
• Home Automation: Connecting sensors, lights, and controllers for smart home projects.
• Educational Projects: Used in schools and workshops to teach programming and electronics.
• Prototyping: Designing and testing new electronic products or ideas.
