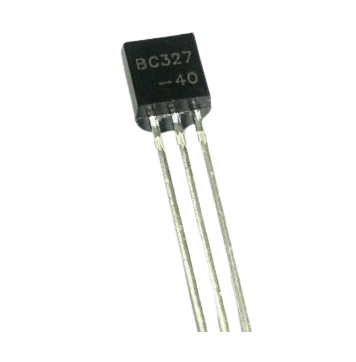

BC327 PNP Transistor 50V 800mA 625mW

Key Features:

• Type: PNP Transistor
• Maximum Collector-Emitter Voltage (Vce): 50V
• Maximum Collector Current (Ic): 800mA
• Power Dissipation (Pd): 625mW
• DC Current Gain (hFE): Typically ranges from 100 to 630, depending on the level of collector current.
• Frequency of Operation: Typically up to several MHz, making it suitable for various RF applications.
• Package Type: Commonly available in TO-220 or TO-92 packages for easy mounting.

Electrical Specifications:

• Collector-Base Voltage (Vcb): 50V
• Emitter-Base Voltage (Veb): 5V
• Operating Junction Temperature (Tj): Up to 150°C
• Thermal Resistance (Junction to Ambient, RθJA): Depending on the package, typically around 150-250 °C/W.

Applications:

• Audio Amplifiers: Used in low-frequency amplification circuits.
• Switching Applications: Suitable for driving loads such as relays, small motors, and LED arrays.
• Signal Processing: Works effectively in analog signal processing applications.
• General Purpose: Ideal for a wide range of electronic circuits requiring reliable switching and amplification.

Important Notes:

• Polarity: Ensure proper connections; as a PNP transistor, it requires the emitter to be connected to a higher voltage than the collector.
• Biasing: Proper biasing is crucial for ensuring the transistor operates in the desired region (cut-off, active, or saturation).
• Heat Dissipation: When operating near its maximum ratings, consider heat dissipation methods such as heat sinks to manage temperature.

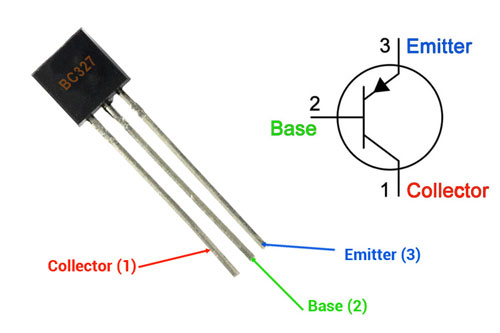

Pin Configuration (TO-92 Package):

1. Emitter (E)
2. Base (B)
3. Collector (C)
