Product Overview

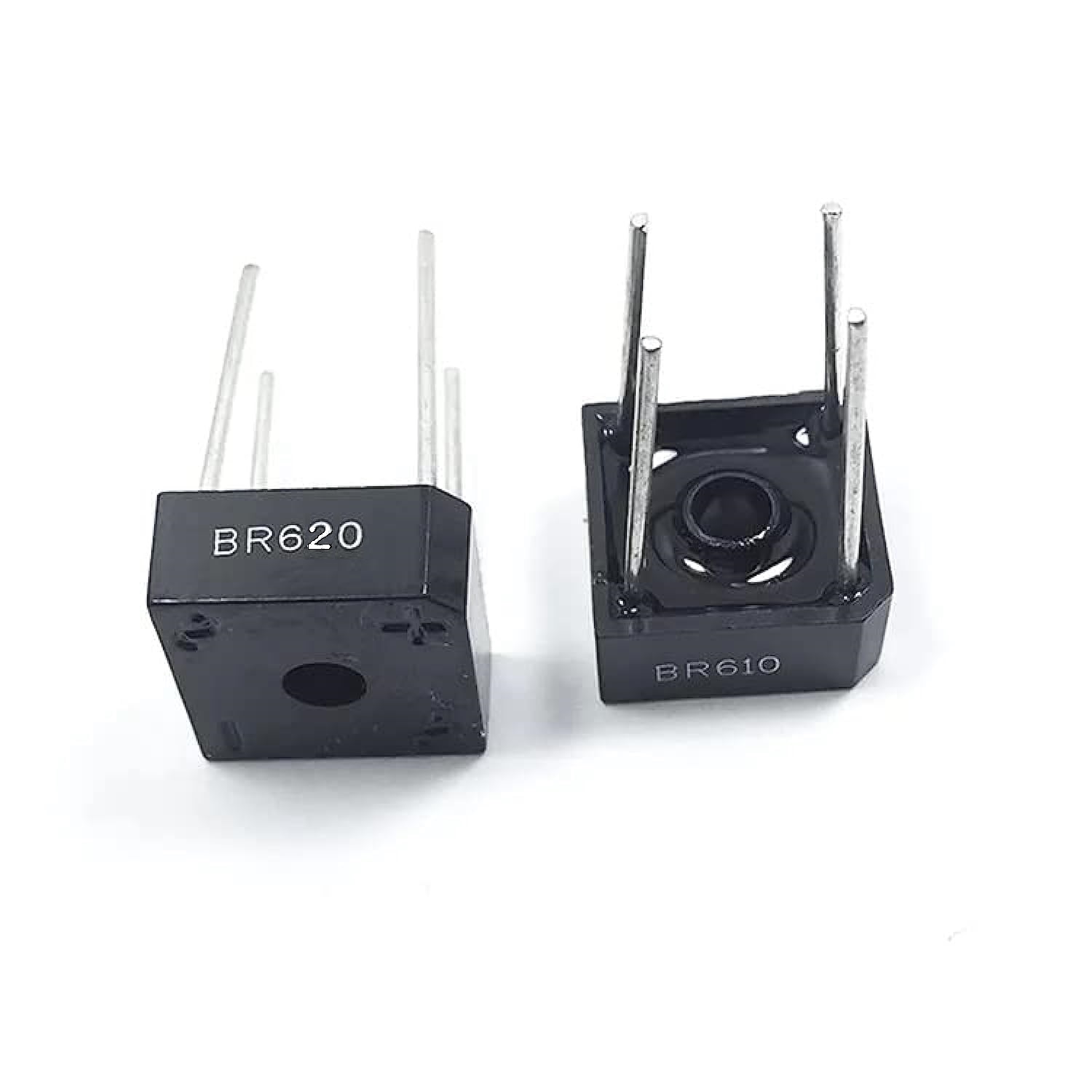

The Bridge Rectifier BR62 is a compact, high-efficiency single-phase rectifier designed for converting AC to DC in low-to-medium power applications. Ideal for consumer electronics, power adapters, and industrial control systems, this rectifier delivers reliable full-wave rectification with minimal power loss. Its epoxy-encapsulated construction ensures durability and thermal stability, making it suitable for environments with moderate heat and vibration.
Key Features
- Current Capacity: 6A average forward current for steady power delivery.
- Peak Reverse Voltage (PRV): Rated for 200V, providing robust performance in low-voltage circuits.
- Surge Current Tolerance: Handles 100A non-repetitive surge current for transient protection.
- Low Forward Voltage Drop: ~1V per diode enhances energy efficiency.
- Compact Design: 4-pin DIP (Dual Inline Package) for easy PCB mounting.
- Temperature Range: Operates reliably from -55°C to +150°C.
- Compliance: RoHS-compliant and UL-recognized for safety and environmental standards.
Electrical Specifications
- Peak Reverse Voltage (PRV): 200V
- Average Forward Current (Io): 6A
- Max Surge Current (Ifsm): 100A
- Forward Voltage Drop (Vf): 1.0V (typical at 3A)
- Operating Temperature: -55°C to +150°C
- Storage Temperature: -55°C to +150°C
Benefits
- Energy Efficiency: Full-wave rectification minimizes heat generation and power loss.
- Space-Saving: Compact DIP package fits densely populated PCBs.
- Durability: Epoxy coating protects against humidity, dust, and minor mechanical stress.
- Cost-Effective: Affordable solution for mass production and prototyping.
- Easy Integration: Compatible with automated soldering processes.
Usage Instructions
- Mounting: Secure the BR62 to the PCB using through-hole terminals.
- Wiring: Connect AC input to pins 1 and 3; DC output is sourced from pins 2 (+) and 4 (-).
- Testing: Verify output voltage and polarity with a multimeter before full operation.
- Thermal Management: Ensure adequate airflow for continuous high-current applications.
- Soldering: Use a soldering iron ≤300°C to avoid damaging the pins.
Safety & Storage
- Handling: Avoid bending pins; use ESD-safe tools during installation.
- Storage: Keep in a dry, cool environment (<40°C) away from direct sunlight.
- Operational Limits: Do not exceed 200V PRV or 6A forward current.
Applications
- Low-power AC/DC converters and adapters
- Battery chargers and LED drivers
- Industrial control panels and automation systems
- Home appliances (e.g., microwaves, fans)
- Automotive auxiliary power systems
- DIY electronics projects and repair kits
Why Choose BR62?
The Bridge Rectifier BR62 balances performance, affordability, and compactness, making it a go-to choice for low-voltage power conversion needs. Its high surge tolerance, RoHS compliance, and robust epoxy design ensure reliable operation in consumer and industrial applications. Whether for prototyping or production, the BR62 delivers efficient, long-lasting rectification in space-constrained environments.
