BTS7960 High Power Motor Driver 43A

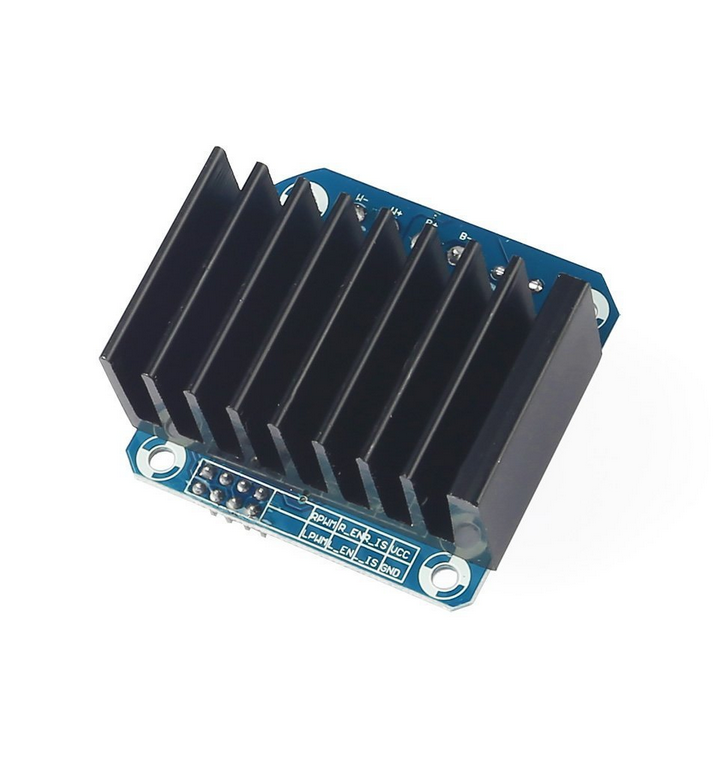

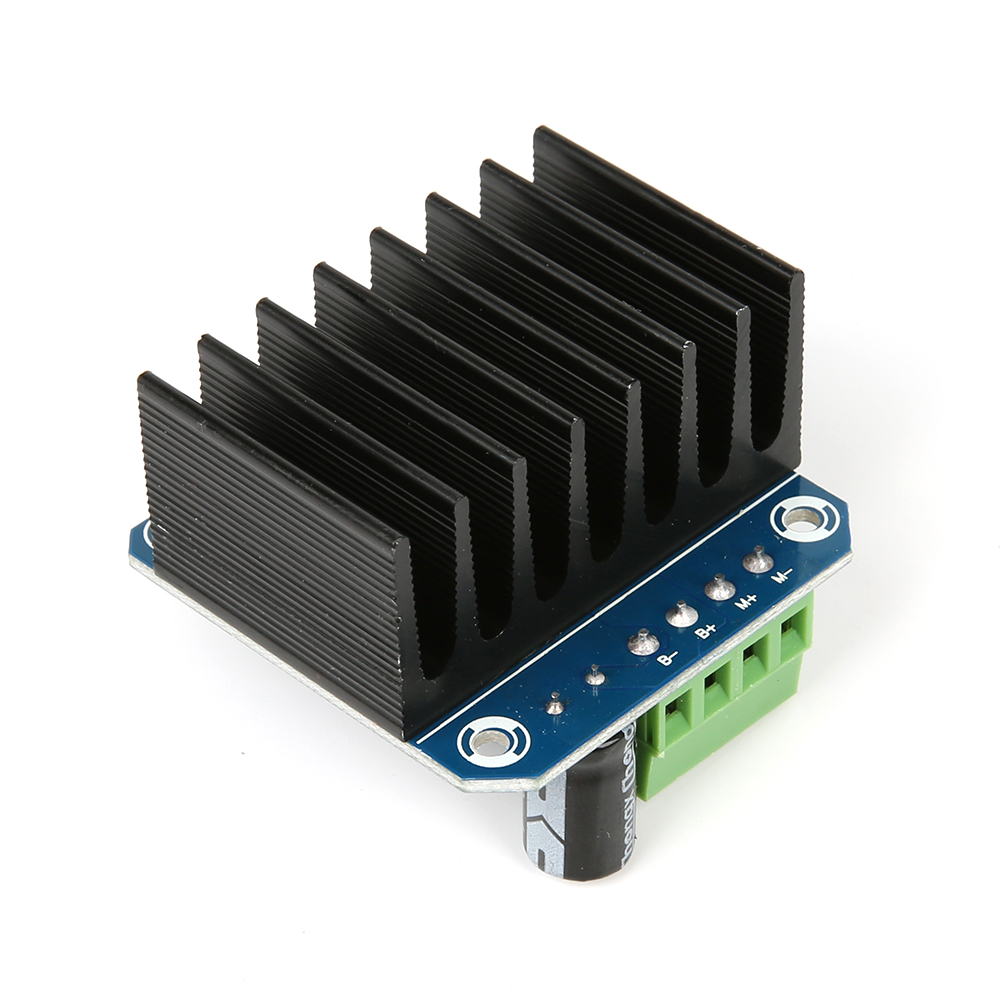

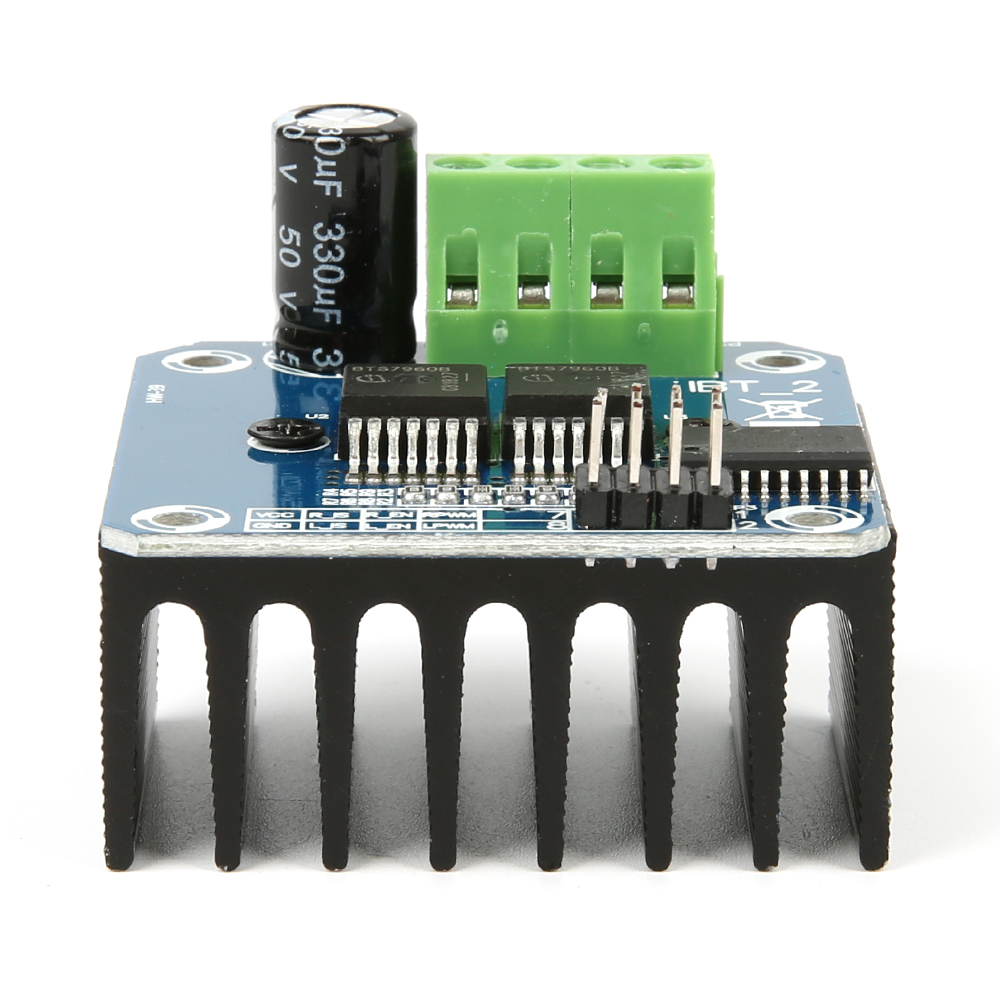

Double BTS7960B DC 43A Stepper Motor Driver H-Bridge PWM For Smart Car Driver

This driver uses Infineon chips BTS7960 composed of high-power drive full H-bridge driver module with thermal over-current protection. Double BTS7960 H-bridge driver circuit, with a strong drive and braking, effectively isolating the microcontroller and motor driver! High-current 43A

Specification:

*Double BTS7960 large current (43 A) H bridge driver;

*5V isolate with MCU, and effectively protect MCU;

*5V power indicator on board;

*voltage indication of motor driver output end;

*can solder heat sink;

*Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2); *isolation chip 5 V power supply (can share with MCU 5 V); *Size: 4 * 5 * 1.2 cm;

*Able to reverse the motor forward, two PWM input frequency up to 25kHZ; two heat flow passing through an error signal output;

*isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply;

*the supply voltage 5.5V to 27V

Package List:

1x Double BTS7960B DC 43A Stepper Motor Driver
