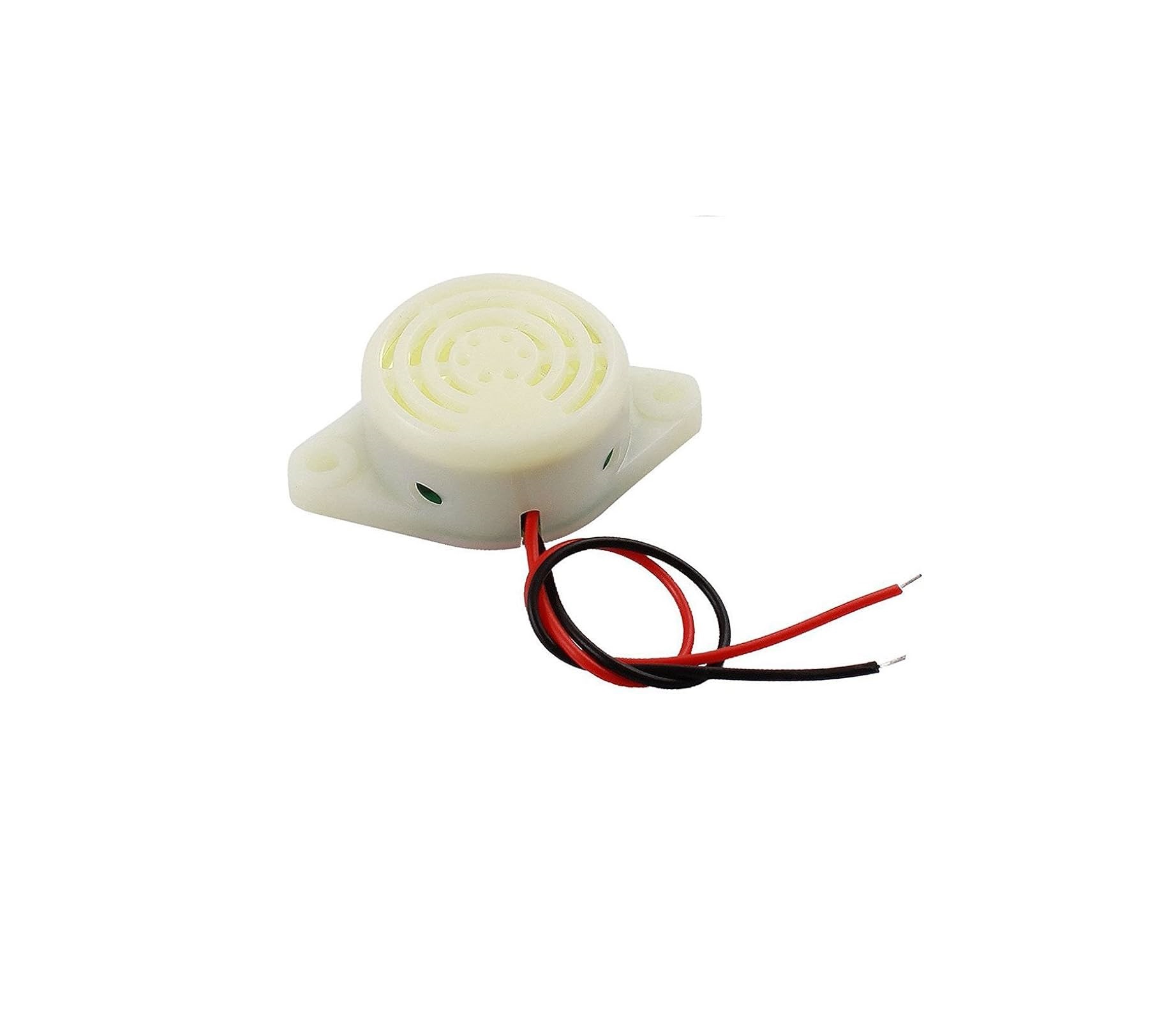

Buzzer alarm 95DB

Product Overview
The Buzzer Alarm 95dB is a high-intensity audible alert device designed for safety, security, and industrial applications. With a piercing 95dB sound output, this buzzer ensures clear and urgent notifications in noisy environments. Its compact, durable design and wide voltage compatibility make it ideal for integration into alarms, timers, vehicles, and automated systems where loud, reliable alerts are critical.

Key Features

• High-Volume Output: 95dB sound pressure level for unmistakable alerts.
• Wide Voltage Range: Operates on 3–24V DC, compatible with most control systems.
• Durable Construction: ABS plastic housing with IP54 dust/water resistance.
• Low Power Consumption: Draws ≤30mA for energy-efficient operation.
• Easy Installation: Pre-wired with 20cm leads for quick connection.
• Versatile Mounting: Includes screw holes and adhesive backing.
• Compliance: RoHS and CE certified for safety and environmental standards.

Technical Specifications

• Sound Frequency: 2.7kHz ±500Hz (adjustable via PWM in some models)
• Operating Voltage: 3–24V DC
• Current Draw: 20–30mA (varies by voltage)
• Dimensions: 35mm (diameter) x 25mm (height)
• Weight: 50g
• Operating Temperature: -20°C to +70°C
• Material: Flame-retardant ABS housing

Benefits

• Immediate Alerts: Ideal for fire alarms, security systems, and emergency signals.
• Space-Saving: Compact size fits into tight spaces.
• Long Lifespan: Non-mechanical design resists wear and tear.
• Cost-Effective: Low power use and minimal maintenance.
• Multi-Application: Suitable for industrial, automotive, and DIY projects.

Usage Instructions

1. Wiring: Connect red wire (+) to power source and black wire (-) to ground.
2. Voltage Check: Ensure power supply matches buzzer’s voltage range (3–24V).
3. Mounting: Secure via screws or adhesive pad in a vibration-free location.
4. Testing: Apply power to verify sound output; adjust PWM (if supported) for tone modulation.
5. Integration: Pair with microcontrollers (e.g., Arduino, PLCs) via relays or transistors.

Safety & Storage

• Handling: Avoid short-circuiting wires; use within rated voltage limits.
• Storage: Keep in a dry, cool environment away from direct sunlight.
• Operational Limits: Do not exceed 24V DC or expose to corrosive substances.
• Hearing Caution: Prolonged exposure to 95dB may harm hearing—use in ventilated areas.

Applications

• Fire and smoke alarm systems
• Industrial machinery fault alerts
• Vehicle reverse alarms and timers
• Home security systems
• DIY electronics and IoT devices
• School/office emergency evacuation signals

Why Choose the 95dB Buzzer Alarm?
This buzzer delivers a powerful, attention-grabbing alert in a compact and energy-efficient package. Its rugged design, broad voltage range, and compliance with international standards make it a go-to solution for safety-critical applications. Whether upgrading industrial equipment or prototyping a security system, this buzzer ensures your alerts are heard loud and clear.



Example Code to Control a Buzzer Alarm

Here’s an example of how to use a 95 dB buzzer with an Arduino to create a basic alarm system. The code below turns the buzzer on for a specified duration.

Required Components:

• 1 x Arduino board (e.g., Arduino Uno)
• 1 x 95 dB buzzer
• 1 x 220-ohm resistor (optional for limiting current)
• Jumper wires
• Breadboard (optional)

Circuit Diagram:

• Buzzer Positive Terminal: Connect to a digital pin on the Arduino (for example, pin 9)
• Buzzer Negative Terminal: Connect to the Arduino GND
• If using a resistor: Connect it in series with the buzzer.

Arduino Code:

Copy// Define the pin for the buzzer
const int buzzerPin = 9;

// Duration the alarm will sound (in milliseconds)
const int alarmDuration = 1000; // 1 second

void setup() {
  // Set the buzzer pin as an output
  pinMode(buzzerPin, OUTPUT);
}

void loop() {
  // Turn the buzzer on
  digitalWrite(buzzerPin, HIGH);

  // Wait for the duration of the alarm
  delay(alarmDuration);

  // Turn the buzzer off
  digitalWrite(buzzerPin, LOW);

  // Wait for a while before restarting (can adjust as needed)
  delay(2000); // Wait for 2 seconds before sounding again
}

Explanation of the Code:

• The buzzer is connected to digital pin 9 of the Arduino.
• The setup() function initializes the buzzer pin as an output.
• In the loop(), the buzzer is turned on for a specified duration (alarmDuration) and then turned off. The loop will keep repeating, sounding the buzzer every 2 seconds.

Conclusion

This implementation showcases how a 95 dB buzzer alarm can be effectively used in conjunction with an Arduino microcontroller. The buzzer can be integrated into various systems and applications, providing a reliable alert system for a wide range of needs. Always consult the specific datasheet for your buzzer model for precise specifications and connection details.
