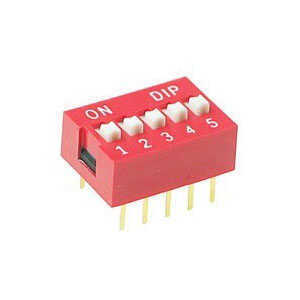

Dip Switch 5 ways

A 5-Way DIP (Dual In-line Package) Switch is a small switch used in electronic circuits for various purposes, including configuration settings, device identification, and mode selection. Here’s a detailed overview of a 5-way DIP switch:

Overview of 5-Way DIP Switch

1. Description

• Form Factor:
  • DIP switches consist of a series of tiny switch components packaged in a single module, resembling a rectangular or square IC. This design makes them easy to mount on PCBs (Printed Circuit Boards) or within devices.
• Switch Configuration:
  • A 5-way DIP switch has five separate switches. Each switch can be toggled between two positions: ON (closed) and OFF (open). The ON position is typically indicated by a switch being pushed down, while the OFF position means the switch is up.
• Contact Type:
  • Each switch in the DIP can connect (or disconnect) a circuit, allowing for configurations where different binary combinations can be set (e.g., ON and OFF states).

2. Typical Uses

5-way DIP switches are commonly used in various applications, including:

• Device Configuration:
  • Used to configure settings such as device IDs, baud rates, or operational modes in electronic devices, allowing users to set preferences before powering on the device.
• Address Selection:
  • Used in networking devices, sensors, and peripherals to set unique addresses in a multi-device setup.
• Mode Selection:
  • Can set operational modes for devices like development boards, enabling or disabling specific features.
• Firmware Configuration:
  • In embedded systems, they can select firmware options or boot modes during startup.
• Testing and Prototyping:
  • Commonly utilized in test setups or prototypes for quick toggling of options without needing to rewire circuits.

3. Pin Configuration

• The DIP switch usually has two rows of pins. Each switch corresponds to a pin, allowing for an easy and organized connection to a PCB or circuit.
• Example of Pin Layout:
  • Each switch’s state can be represented in binary (e.g., 00000 to 11111), resulting in 32 total configurations (2^5).

Example Connection:

CopySwitch      | Pin 1 | Pin 2 | Pin 3 | Pin 4 | Pin 5
------------|-------|-------|-------|-------|-------
Position ON |   1   |   1   |   1   |   1   |   1
Position OFF|   0   |   0   |   0   |   0   |   0

4. Advantages

• Simplicity:
  • DIP switches are straightforward to use and implement, making them ideal for quick configurations.
• Cost-Effective:
  • They are generally inexpensive, making them popular in a wide range of electronic designs.
• Space-Efficient:
  • Their compact size allows for a lot of configurations in a small footprint.
• Reliability:
  • DIP switches can be quite reliable over many cycles of use if treated properly.

5. Installation Considerations

• Mounting:
  • DIP switches are typically mounted by inserting their pins into a PCB. This process requires soldering if a permanent connection is desired.
• Sealing:
  • In environments that need protection from dust and moisture, consider using sealed DIP switches or additional protective housings.
• Accessibility:
  • Ensure that the DIP switch is easily accessible for user adjustments if it’s intended for user configuration.

6. Alternatives

• Rotary Switches:
  • For applications requiring more positions than a DIP switch can provide, rotary switches can be a good alternative.
• Jumpers:
  • Two-pin configurations or jumpers can also replace DIP switches, though they typically require more physical manipulation for changes.
• Software Configuration:
  • Many modern devices now allow for software configuration, reducing the need for physical DIP switches.

Conclusion

A 5-way DIP switch is a versatile and efficient tool for switching applications in electronic circuits. By utilizing the DIP switch, designers can implement user-friendly configurations directly on the device, making it a staple component in many electronic projects and devices. If you need more specific information or have particular questions regarding DIP switches, feel free to ask!
