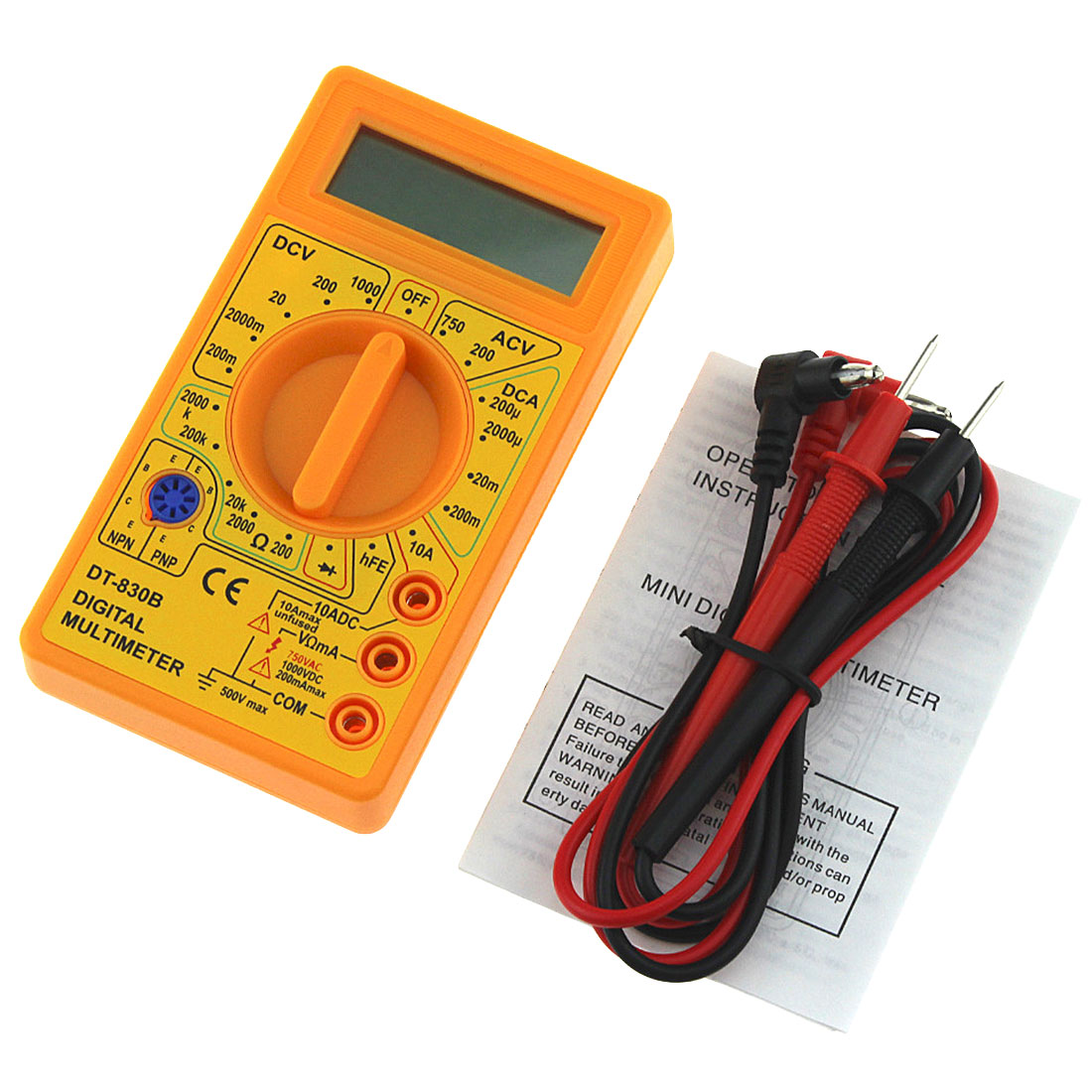

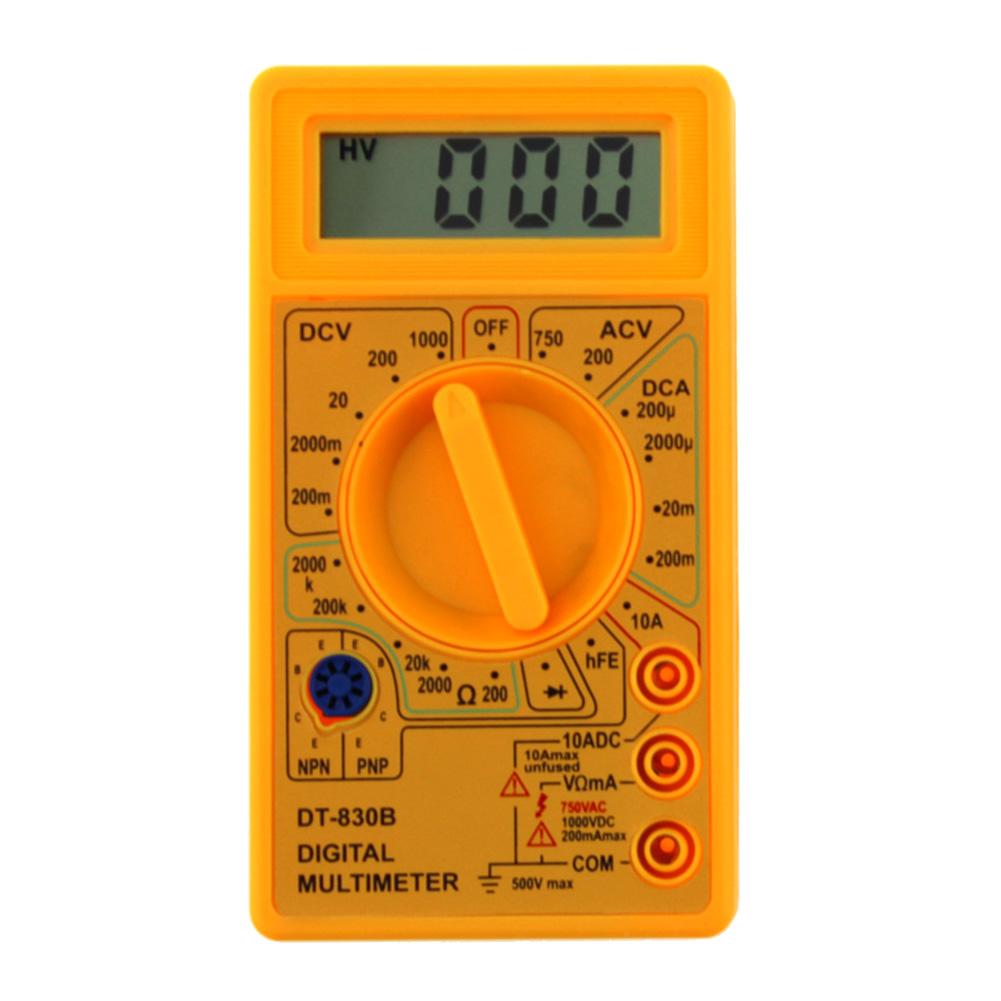

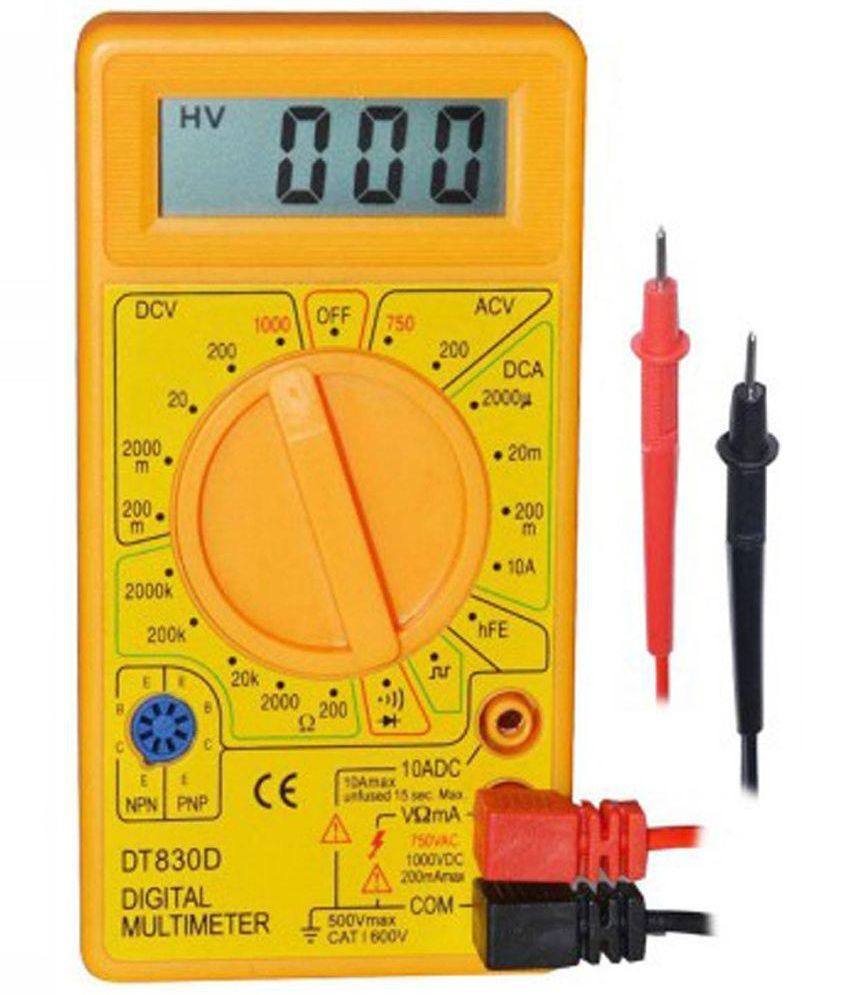

DT830D Digital Multimeter

Digital Multimeter DT830D Yellow Color – 1000V DC/750V AC comes with 1M Ohm Impedance is Standard Diagnostic Tool to Measure Two or More Electrical Values Such as Voltage, Current and Resistance. It uses digital and logic technology using integrated circuit technology to offer additional test capabilities.

They are Widely Used in electrical measurements, AC and DC voltage, AC and DC current, and resistance, voltmeter, ammeter, and ohmmeter, voltages and voltage fluctuations in homes or offices.

Features:

An Easy to Read 3.5 Digit LCD Display.
Ability of Displaying Measured Electrical Values Quickly Without any Computations.
Auto-Polarity for Direct Current Readings.
Auto Ranging which Selects the Correct Range for the Quantity Under Test to Get Most Significant Digits.
Specifications:

Model

DT830D

Type

Digital

Color

Yellow

Voltage Rating

1000VDC/ 750VAC RMS

Impedance

1MOhm

DC Voltage Range

200 mV, 2000mV, 20V, 200V and 1000V

AC Voltage Range

200V and 750V

DC Current Range

200µA, 2000µA, 20mA, 200mA and 10A

Resistance Range

200, 2000, 20, 200 and 2000K Ohms

Probe Length (cm)

60

Display Size

1.5 cm

Battery

9V

Length (mm)

120

Width (mm)

70

Height (mm)

27

Weight (gm)

160
