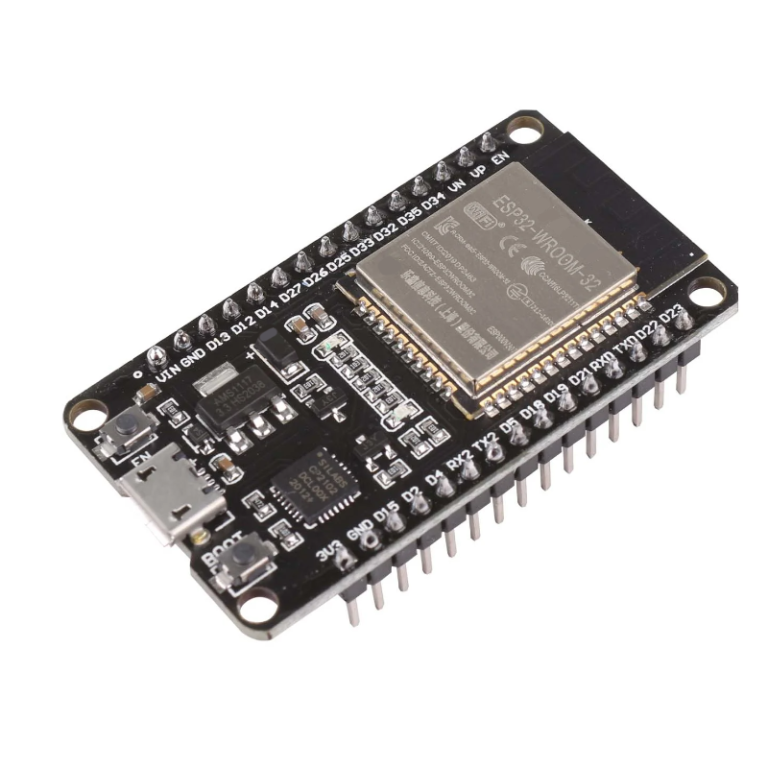

ESP32 Development Board (WIFI and Bluetooth) CH340 chip

Product Overview

The ESP32 Development Board is a powerful, versatile microcontroller designed for Wi-Fi and Bluetooth applications. Based on the ESP32 chip with built-in Wi-Fi and Bluetooth capabilities, this development board is perfect for a wide range of IoT projects, including wireless communication, home automation, sensor networks, and more. The CH340 chip allows for easy USB-to-serial communication for programming and debugging, making this board an excellent choice for both beginners and advanced users.

Key Features

1. Dual-Core Processor: Powered by a 32-bit dual-core CPU (up to 240MHz), providing excellent performance for handling complex tasks and multitasking.
2. Built-In Wi-Fi and Bluetooth: Supports both Wi-Fi (802.11 b/g/n) and Bluetooth (Classic and BLE) for easy wireless communication.
3. Low Power Consumption: Features multiple power modes to optimize energy consumption for battery-powered projects.
4. GPIO Pins: Comes with 34 programmable input/output (I/O) pins for connecting to various sensors and actuators.
5. USB to Serial (CH340): The built-in CH340 USB-to-serial chip allows for simple and reliable communication between the board and your computer for programming and debugging.
6. Integrated Analog-to-Digital Converter (ADC): 12-bit ADC for high-resolution sensor readings.
7. Support for Multiple Communication Protocols: Includes support for I2C, SPI, UART, PWM, and more, allowing you to interface with a wide range of peripherals.
8. Large Memory: Includes 4MB flash memory for storing programs, data, and configurations.
9. Compatible with Arduino IDE: Can be programmed using the Arduino IDE, which makes it easy to get started with your projects.

Technical Specifications

1. Processor: Dual-core 32-bit CPU, up to 240MHz
2. Wi-Fi: 802.11 b/g/n
3. Bluetooth: Bluetooth Classic, Bluetooth Low Energy (BLE)
4. Flash Memory: 4MB
5. GPIO: 34 programmable I/O pins
6. ADC: 12-bit ADC with 18 channels
7. USB-to-Serial: CH340 chip for easy programming and debugging
8. I2C/SPI/UART: Supports I2C, SPI, and UART communication protocols
9. Power Supply: 5V via micro-USB or 3.3V (with regulator)
10. Operating Voltage: 3.3V
11. Dimensions: 55mm x 25mm
12. Weight: Approx. 15g

Benefits

1. Versatile Connectivity: With built-in Wi-Fi and Bluetooth, the ESP32 development board enables seamless communication for IoT and wireless projects.
2. High Performance: The dual-core processor delivers impressive performance, even for tasks that require multitasking or handling multiple sensors.
3. Energy-Efficient: Multiple power-saving modes make it ideal for battery-operated applications where power consumption is a concern.
4. Ease of Use: With support for the Arduino IDE, developers can easily program and test their projects with a familiar platform.
5. Compact and Cost-Effective: Offers a compact form factor and excellent features at an affordable price, making it suitable for a wide range of projects and applications.
6. Rich I/O Options: The numerous I/O pins and support for multiple communication protocols allow easy integration with a variety of sensors, actuators, and external devices.

Usage Instructions

1. Set Up the Board: Connect the ESP32 Development Board to your computer using a micro-USB cable.
2. Install Drivers: Install the necessary drivers for the CH340 USB-to-serial chip if not already installed.
3. Install the Arduino IDE: Download and install the Arduino IDE, then configure it to support the ESP32 board.
4. Program the Board: Write and upload your code using the Arduino IDE to the ESP32 Development Board.
5. Connect to Wi-Fi: Configure the Wi-Fi settings in your code to enable the ESP32 to connect to a wireless network.
6. Test Bluetooth: If you are using Bluetooth, write code to interact with Bluetooth-enabled devices.

Applications

1. IoT Projects: Perfect for building Internet of Things devices that require wireless communication, such as smart home devices, weather stations, and environmental monitoring systems.
2. Wireless Communication: Ideal for projects that involve remote communication between devices over Wi-Fi or Bluetooth, such as home automation and sensor networks.
3. Smart Devices: Use the ESP32 to develop smart appliances, wearables, and other Bluetooth-enabled devices.
4. Robotics: Can be used in robotics for wireless control, sensor integration, and communication between robots.
5. Data Logging: Use the ESP32 for collecting sensor data and transmitting it over Wi-Fi to cloud platforms or local servers.
6. Prototyping: The ESP32 is a great tool for quickly prototyping new ideas for wireless and IoT applications.

Why Choose the ESP32 Development Board (WIFI and Bluetooth)?

The ESP32 Development Board is a highly flexible and affordable solution for a wide range of wireless communication and IoT projects. With its powerful dual-core processor, built-in Wi-Fi and Bluetooth, and extensive connectivity options, it’s ideal for creating connected devices, sensors, and smart systems. Whether you’re working on a personal project, prototyping a new product, or learning about wireless communication, the ESP32 is a reliable and efficient choice for developers at all levels.
