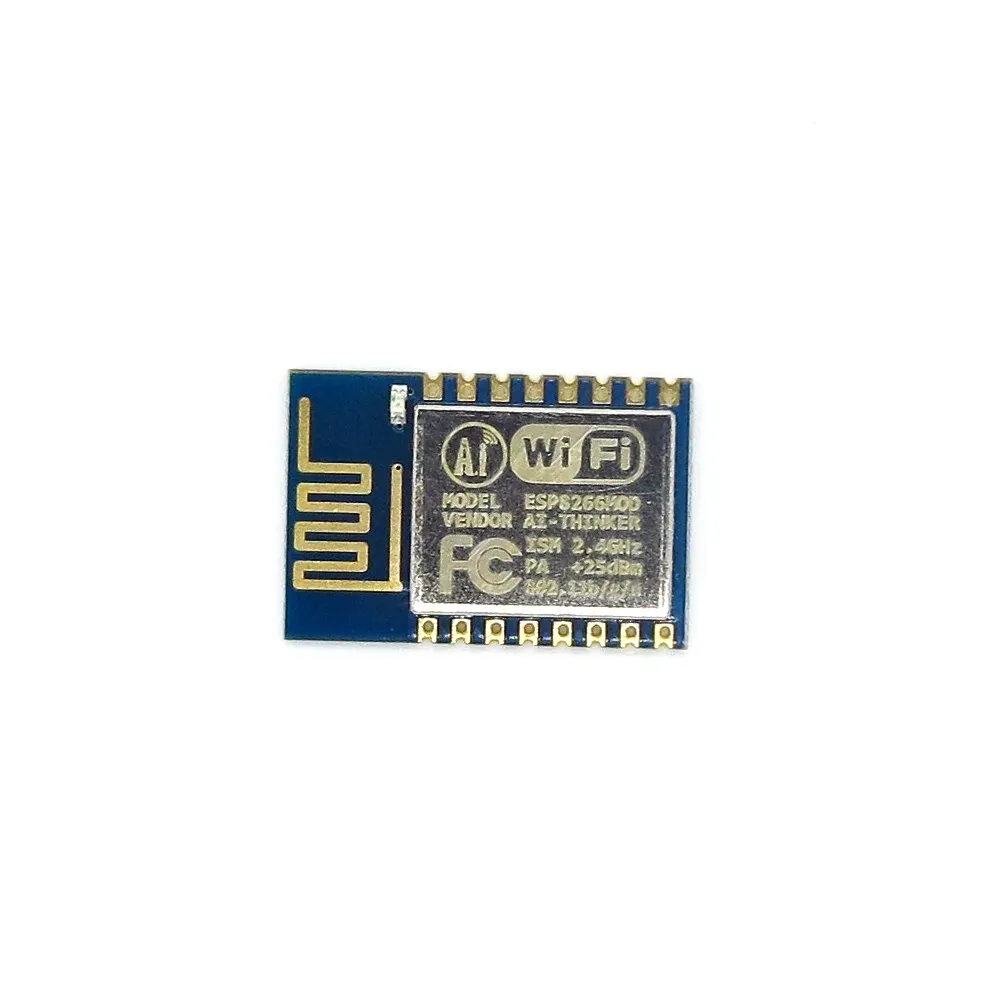

ESP8266 WIFI Module ESP12E

ESP-12 is a low power consumption of the UART-WiFi module, with very competitive price in the industry and ultra low power consumption technology, designed specifically for mobile devices and IOT applications, user’s physical device can be connected to a WiFi wireless network, Internet or intranet communication and networking capabilities.

From 2015/12/28 on, all shippment will be “ESP-12E”, It’s enhanced version of ESP-12 and 100% compatiable with ESP-12.

Specification

Model:ESP8266-12

• 802.11 b/g/n
• Wi-Fi Direct (P2P), soft-AP
• Integrated TCP/IP protocol stack
• Integrated TR switch, balun, LNA, power amplifier and matching network
• Integrated PLLs, regulators, DCXO and power management units
• +19.5dBm output power in 802.11b mode
• Power down leakage current of <10uA
• Integrated low power 32-bit CPU could be used as application processor
• SDIO 1.1/2.0, SPI, UART
• STBC, 1×1 MIMO, 2×1 MIMO
• A-MPDU & A-MSDU aggregation & 0.4μs guard interval
• Wake up and transmit packets in < 2ms
• Standby power consumption of < 1.0mW (DTIM3)
• Identical to adafruit item 2491

Warning

• This module requires a 3.3 volt supply for VCC, and 3.3V logic.
• It is not 5V tolant,Connect RX or TX on 5V Arduino will destroy this module.
• You must use a logic level converter, or a 3.3V Arduino
• The 3.3V supply on the Arduino Uno has inadequate current capabilit to power this module.
• You must provide a separate,higher 3.3V supply(about 300mA or better)
