G1200 LCD Digital Microscope 7-inch 1080P

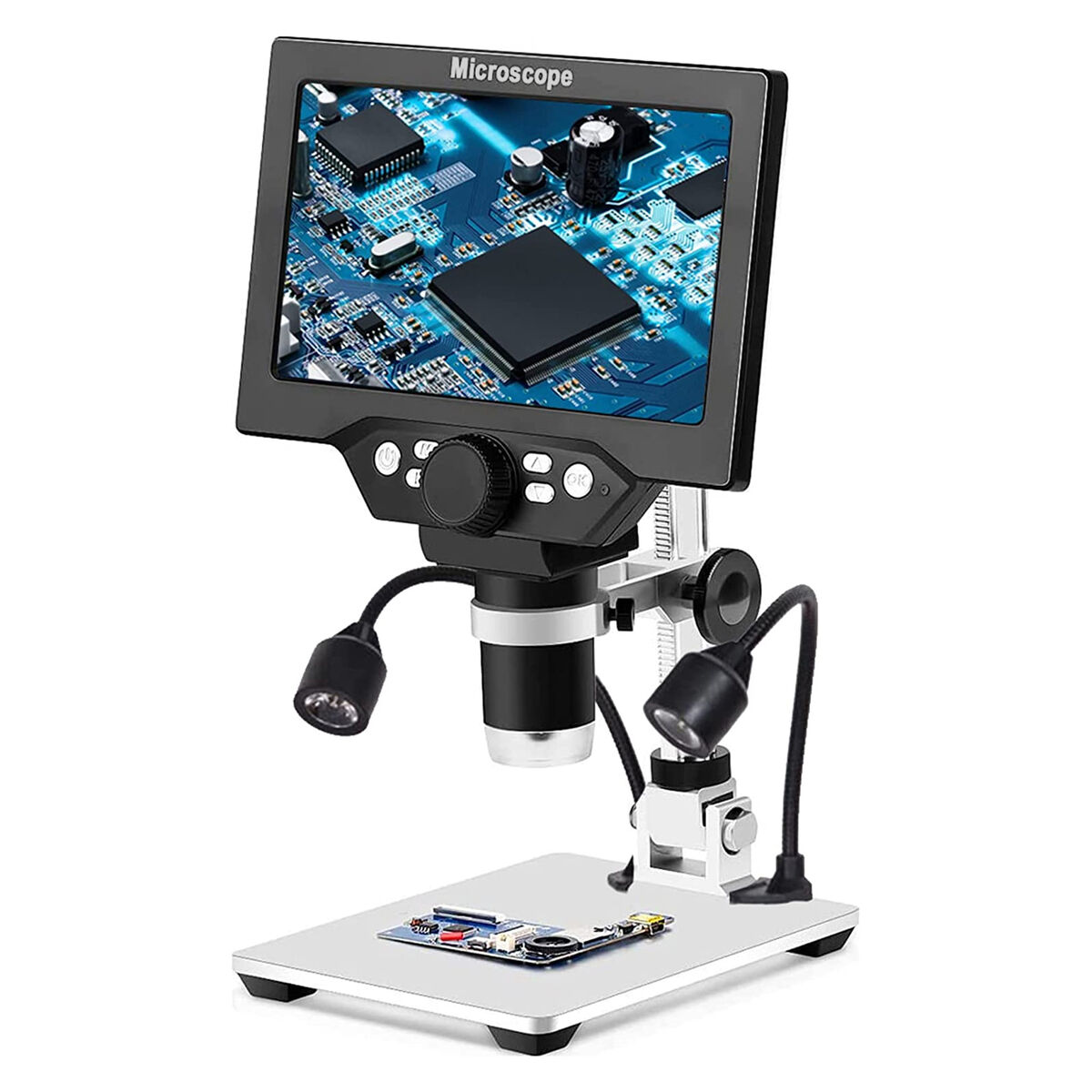

G1200 LCD Digital Microscope – 7-Inch 1080P Display

For Electronics Repair, Soldering, and PCB Inspection

The G1200 LCD Digital Microscope is a high-performance inspection tool designed for electronics technicians, repair professionals, and hobbyists. Featuring a 7-inch HD display, up to 1200× magnification, and an adjustable stand, it’s ideal for inspecting PCBs, diagnosing solder issues, and performing precise repairs on small components.

🔧 Key Features

• 7″ Full-Color LCD Display
  View live magnified images in real time without the need for a computer. The large screen helps reduce eye strain during extended work.

• Up to 1200× Magnification
  See fine details on microchips, solder joints, and circuit traces with adjustable zoom and clear focus.

• 12MP High-Resolution Camera
  Captures crystal-clear still images and records full HD 1080p video directly to a MicroSD card.

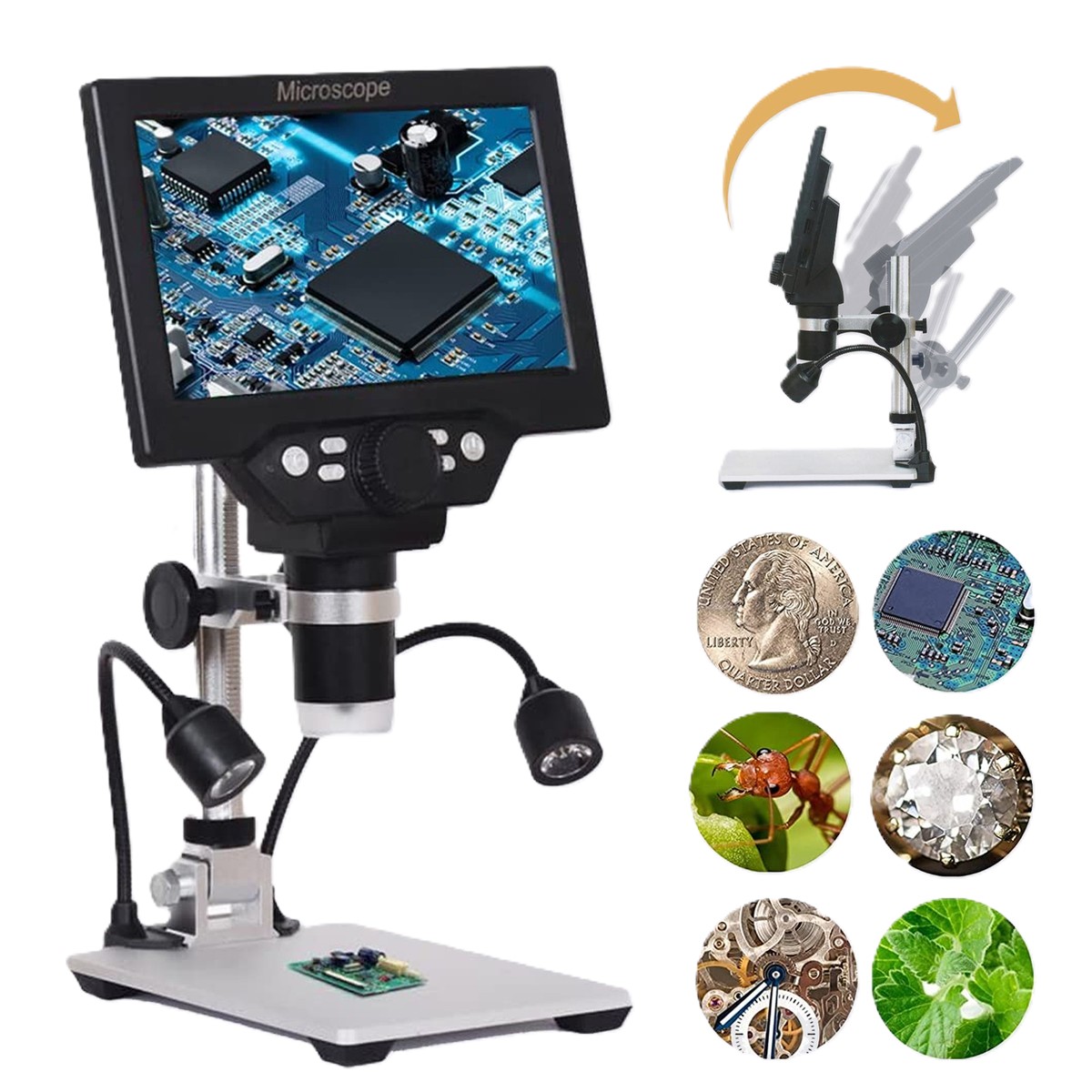

• Flexible Stand with Tilt Angle
  The aluminum alloy stand can tilt forward/backward for better viewing angles and allows tools like tweezers and soldering irons to work underneath the lens.

• 8 Adjustable LED Lights
  Built-in ring of LEDs with brightness control provides consistent, shadow-free lighting.

• On-Screen Measurement Tools
  Supports digital measuring functions such as line length, angle, and radius — great for PCB diagnostics.

• Remote Control Included
  Navigate menus, zoom, and capture images or video hands-free with the included IR remote.

📐 Technical Specifications

• Display: 7-inch IPS LCD, 1024×600 resolution

• Camera Sensor: 12 megapixels

• Magnification: Continuous zoom from 1× to 1200×

• Focus Range: 10 mm to infinity

• Lighting: 8 white LEDs, adjustable brightness

• Video Output: 1080p / 720p / VGA (recorded to SD card)

• Storage: Supports MicroSD cards up to 128 GB (not included)

• Power Supply: Built-in 3.7V rechargeable battery (~3000mAh), USB 5V charging

• Working Time: 4–5 hours on full charge

• Ports: Micro USB for power and data

• Supported Languages: 16 (includes English, Spanish, Arabic, Chinese, etc.)

• Dimensions: Approx. 205 × 160 × 80 mm

• Weight: ~1.2 kg

🛠️ Ideal For

• Electronics Repair & Rework: Easily inspect solder joints, microchips, traces, and connectors on PCBs.

• Soldering Under Magnification: Work hands-free under the lens thanks to the angled stand and open base.

• BGA / SMD Analysis: Examine fine-pitch components for quality control or failure analysis.

• Visual Documentation: Capture and record high-resolution images or video for reports, tutorials, or customer records.

✅ Benefits for Technicians

• Saves time diagnosing faults with enhanced visibility

• Reduces eye fatigue vs. traditional magnifiers

• Makes fine soldering safer and more accurate

• Portable, self-contained design (no PC required)

• Easy to operate via remote or onboard controls
