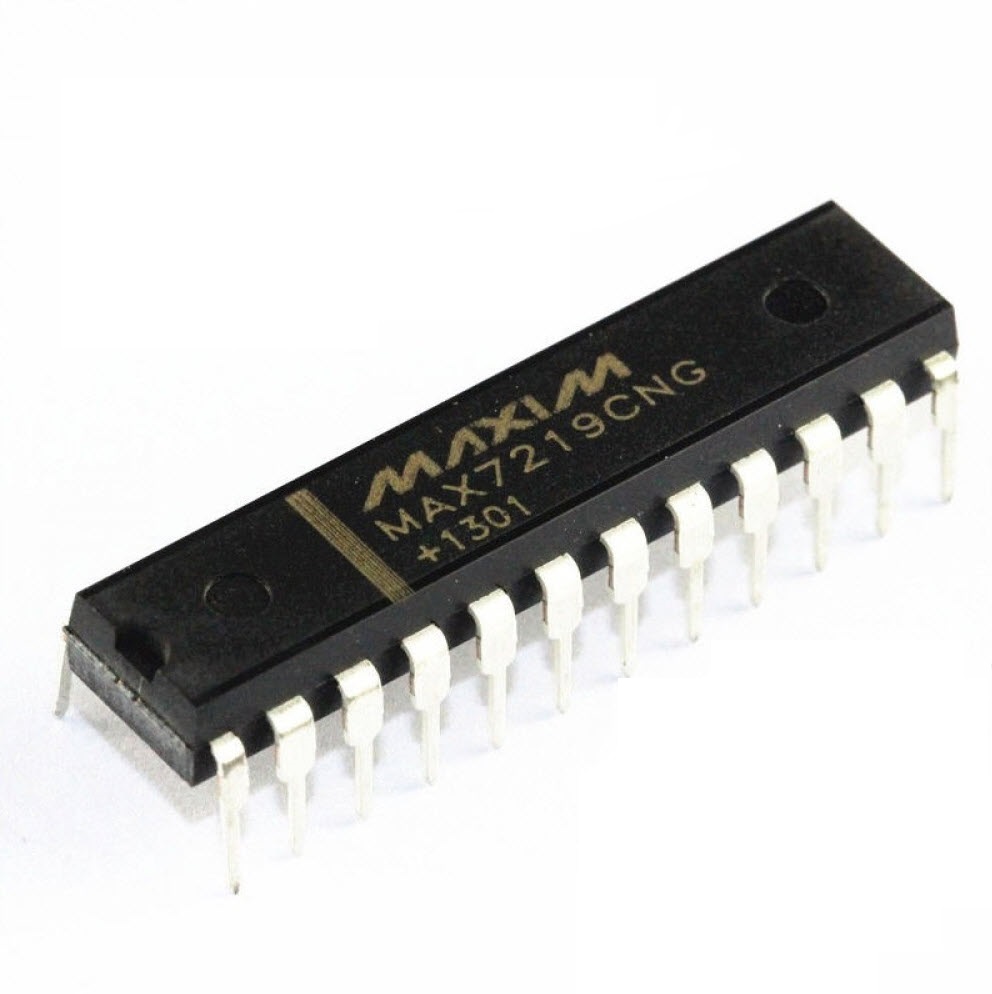

آي سي درايفر شاشة LED تسلسلي MAX7219 8 خانات

Product Overview

The MAX7219 Serially Interfaced 8-Digit LED Display Driver is a compact and versatile IC designed for driving 7-segment LED displays, bar graph displays, or 8x8 LED matrix modules. With an integrated BCD decoder, multiplex scan circuitry, segment and digit drivers, and a serial interface, the MAX7219 simplifies the control of LED displays using minimal microcontroller pins. Its SPI-compatible interface allows for easy integration with Arduino, Raspberry Pi, and other microcontrollers.

Key Features

• 8-Digit LED Display Driver – Supports 7-segment displays, bar graphs, and LED matrices.


• Serial Interface (SPI-Compatible) – Reduces the number of required control pins.


• Built-in BCD Decoder – Simplifies numerical display handling.


• Multiplex Scanning Circuitry – Efficiently manages LED brightness and display refresh.


• Adjustable Brightness Control – Supports software and hardware-controlled intensity levels.


• Low Power Consumption – Uses efficient LED control techniques for minimal energy usage.


• Overvoltage and Overcurrent Protection – Enhances safety and longevity of connected components.

Technical Specifications

• Operating Voltage: 4V to 5.5V


• Current Consumption: 330mA (typical at full load)


• Communication Interface: SPI-Compatible 3-Wire Serial


• LED Support: 8-Digit 7-Segment, Bar Graph, or 8x8 Dot Matrix Displays


• Brightness Control: 16 Levels of Adjustable Intensity


• Package Type: DIP-24 / SOIC-24


• Operating Temperature: -40°C to +85°C

Applications

• 7-Segment Numeric Displays – Ideal for digital clocks, counters, and meters.


• LED Matrix Displays – Can be used for scrolling messages, symbols, and animations.


• Bar Graph Indicators – Suitable for audio level meters and status indicators.


• Embedded Systems & IoT Projects – Compatible with microcontrollers for display applications.


• Industrial Control Panels – Useful for machine interfaces and digital readouts.

Why Choose the MAX7219 LED Display Driver?

The MAX7219 is a highly efficient and user-friendly solution for driving LED displays with minimal wiring and microcontroller resources. Its serial interface, adjustable brightness, and built-in BCD decoder make it a popular choice for projects requiring clear numeric displays, scrolling text, or bar graph indicators.
