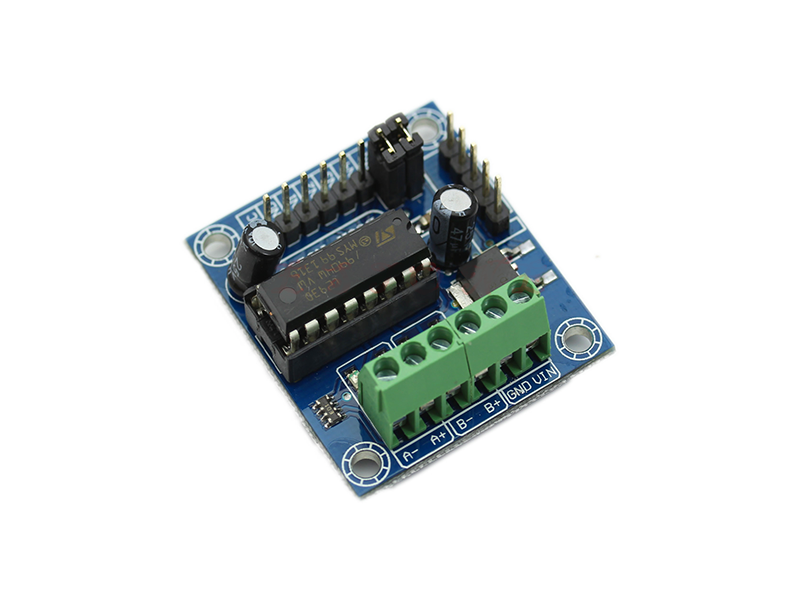

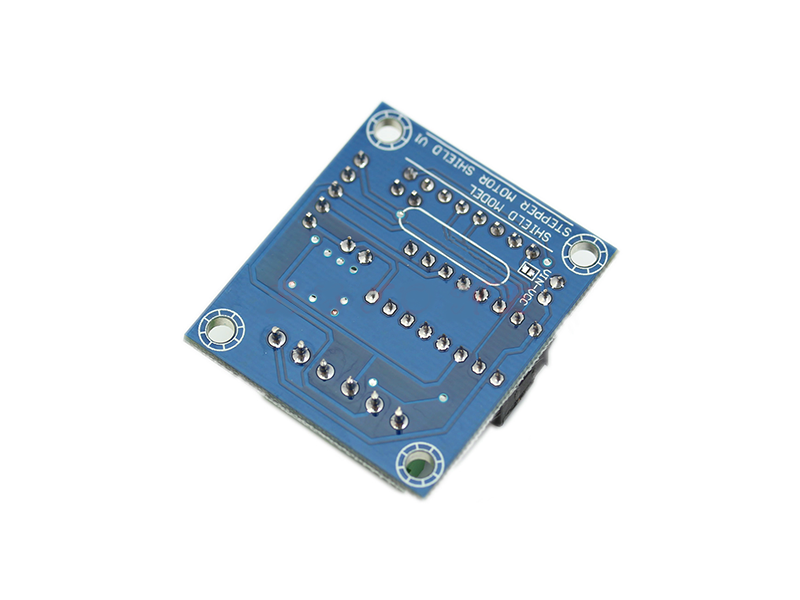

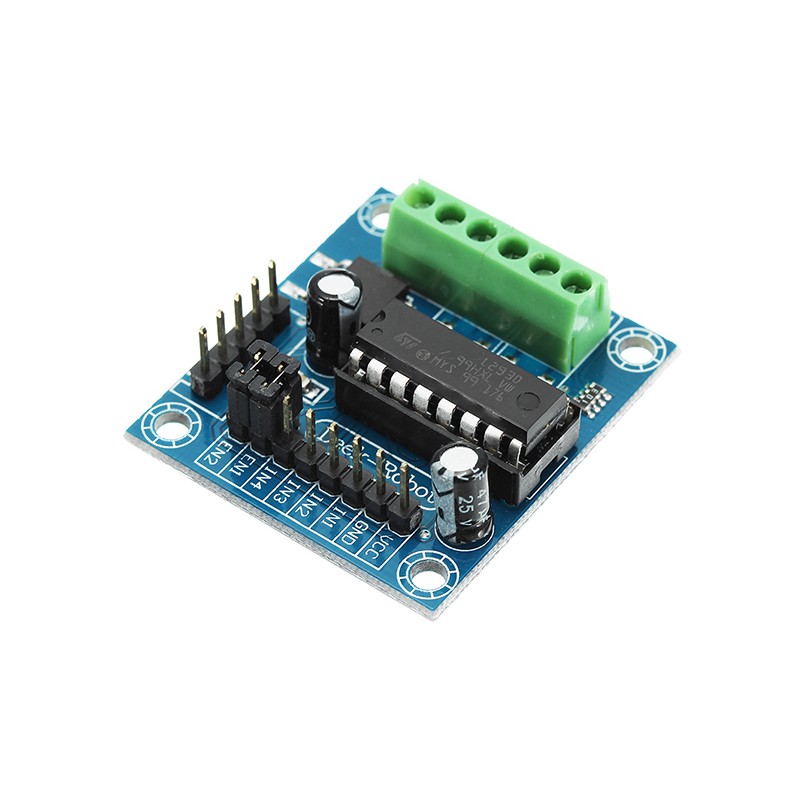

L293D is a monolithic integrated, high voltage, high current, 4-channel driver. With this chip you can control DC motors and power supplies of up to 25 Volts. The L293D chip is also known as H-Bridge. The H-Bridge is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output, e.g. motor.
Specifications
Compatible
2 DC Motors 1 Stepper Motor
Current
Maximum Current of 600mA Peak Output Current 1200mA
Input Voltage
4.5V ~ 25V
Length x Width x Height
38mm x 35mm x 12mm
Motor Controller
L293D
Operating Voltage
5V
Special Features
DC motor Driver + Stepper motor driver LED indicators
