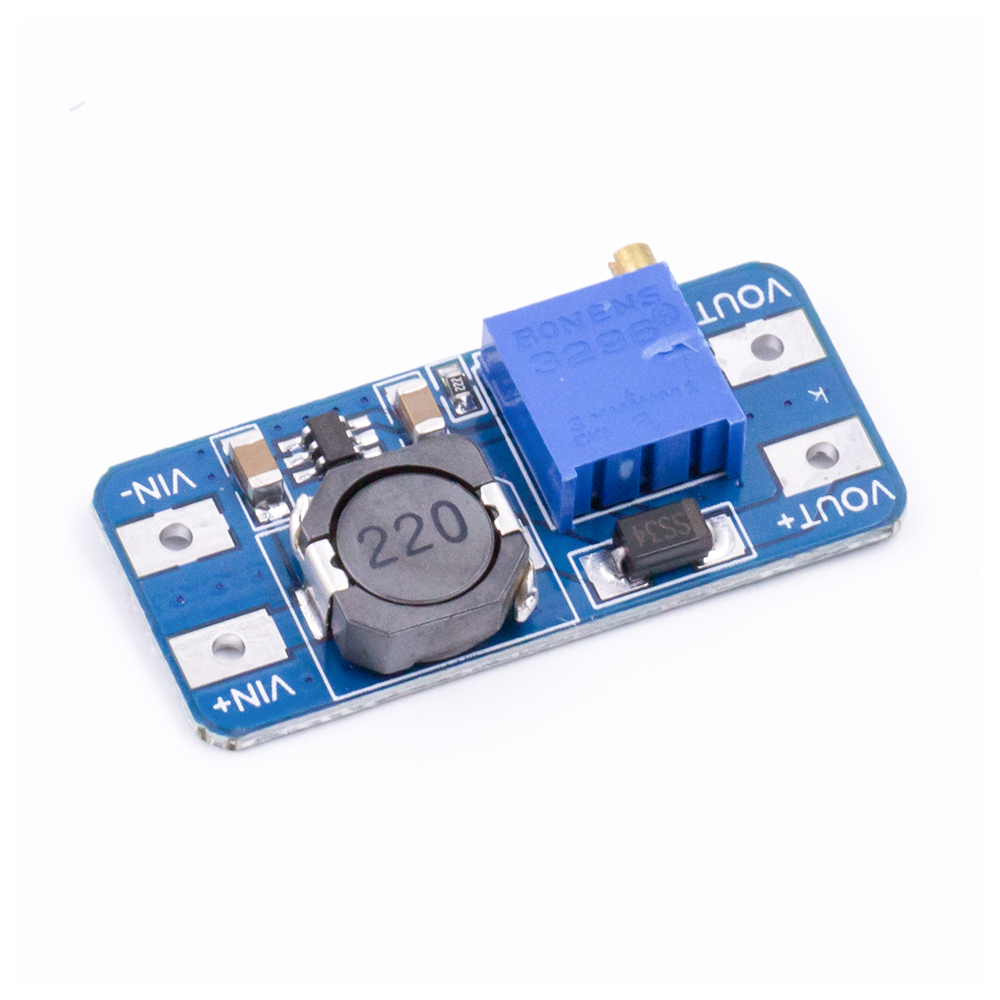

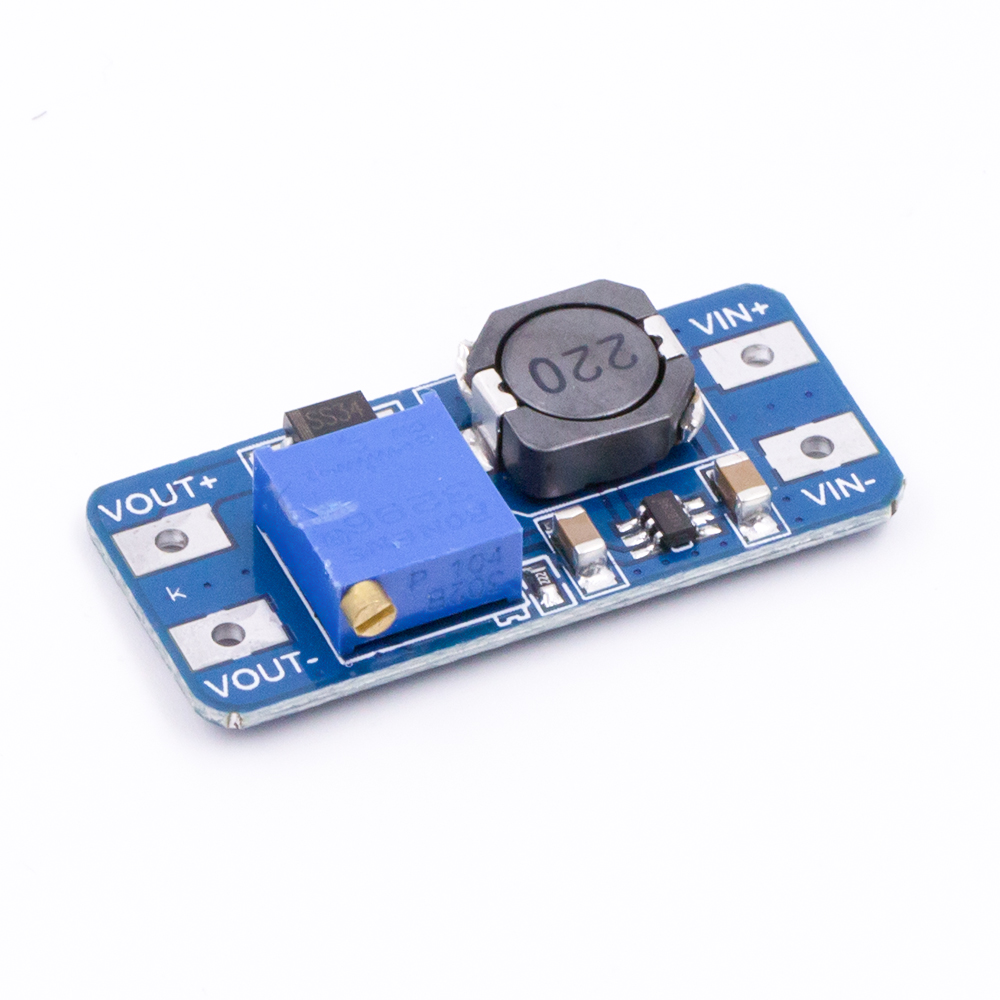

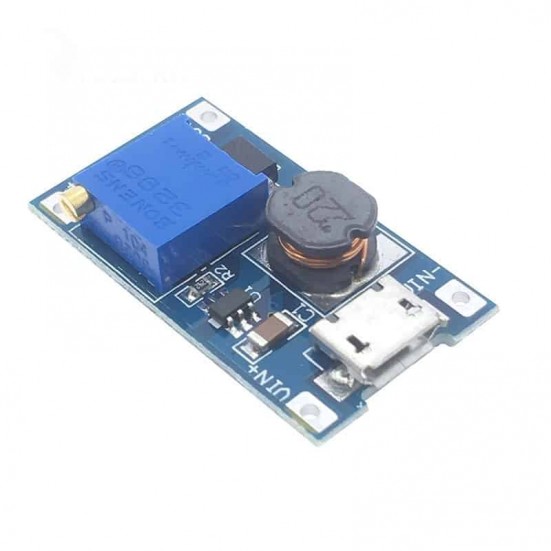

Wholesale MT3608 DC-DC Step Up Converter Booster Power Supply Module Boost Step-up Board MAX Output 28V 2A
Highlights:
The whole network smallest adjustable boost module can be easily installed in a variety of small equipment.
The module supports input, a USB charger or mobile power supply can easily get to it 9V, 12V, 15V, 18V, 24V, easy to use.
Wide input and output voltage, high conversion efficiency.
Property:
1) Maximum output current: 2A (recommended for use within 1A)
2) Input voltage: 2 v ~ 24 v
3) Maximum output voltage:> 28 v (recommended for use within 26V)
4) Efficiency:> 93%
5) Size: 30mm * 17mm * 14mm (L * W * H)
Precautions:
1) This module is a step-up module, the output voltage is greater than the input voltage.
2) peak current output current does not exceed 2A.
,
