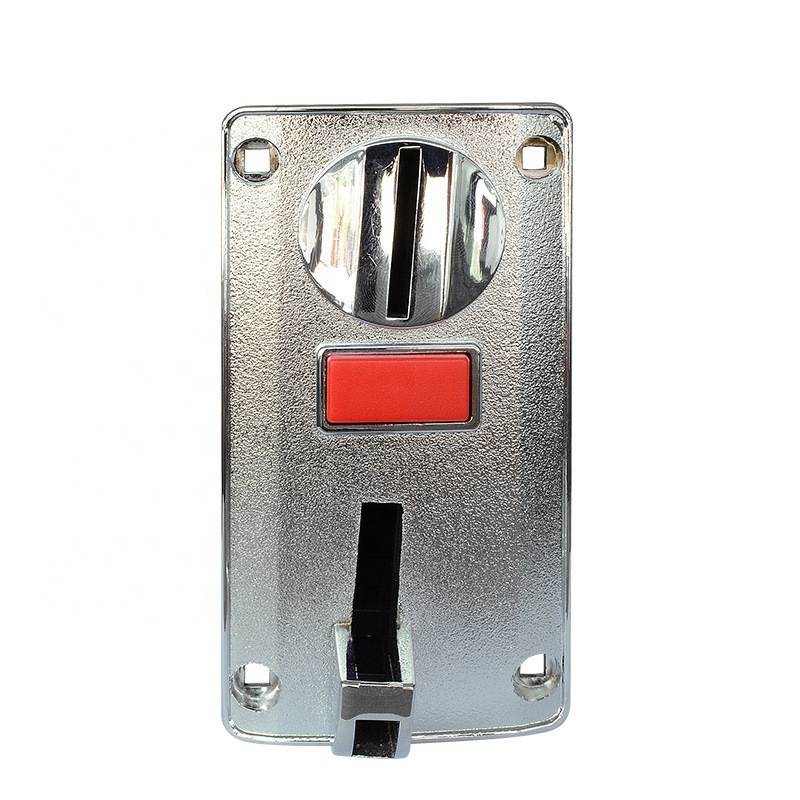

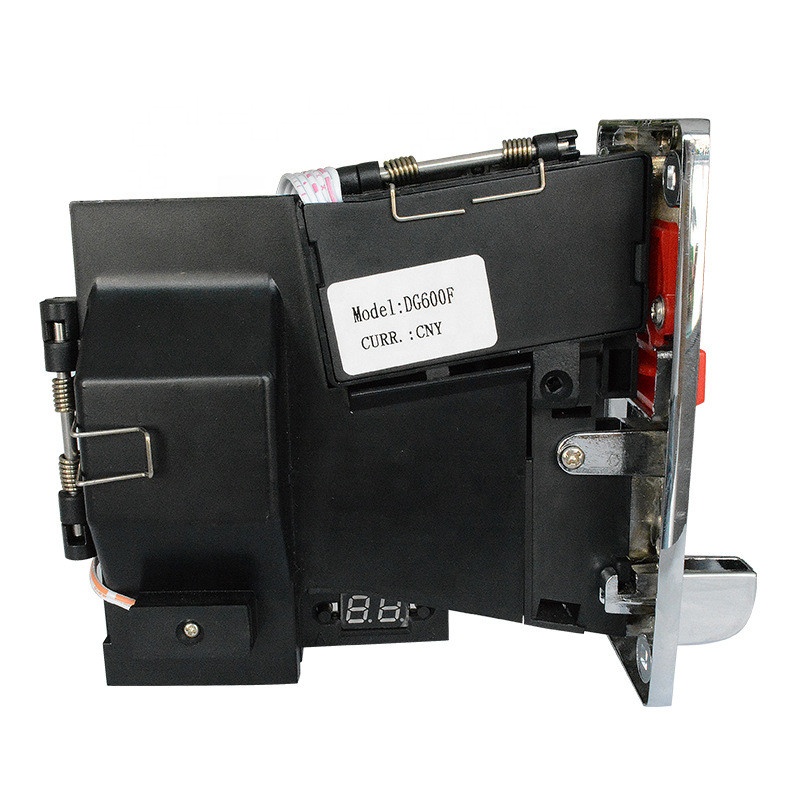

Multi Coin Acceptor Programable Alloy Panel (For Vending Machines) DG600F

Product
Multi-currency coin slot

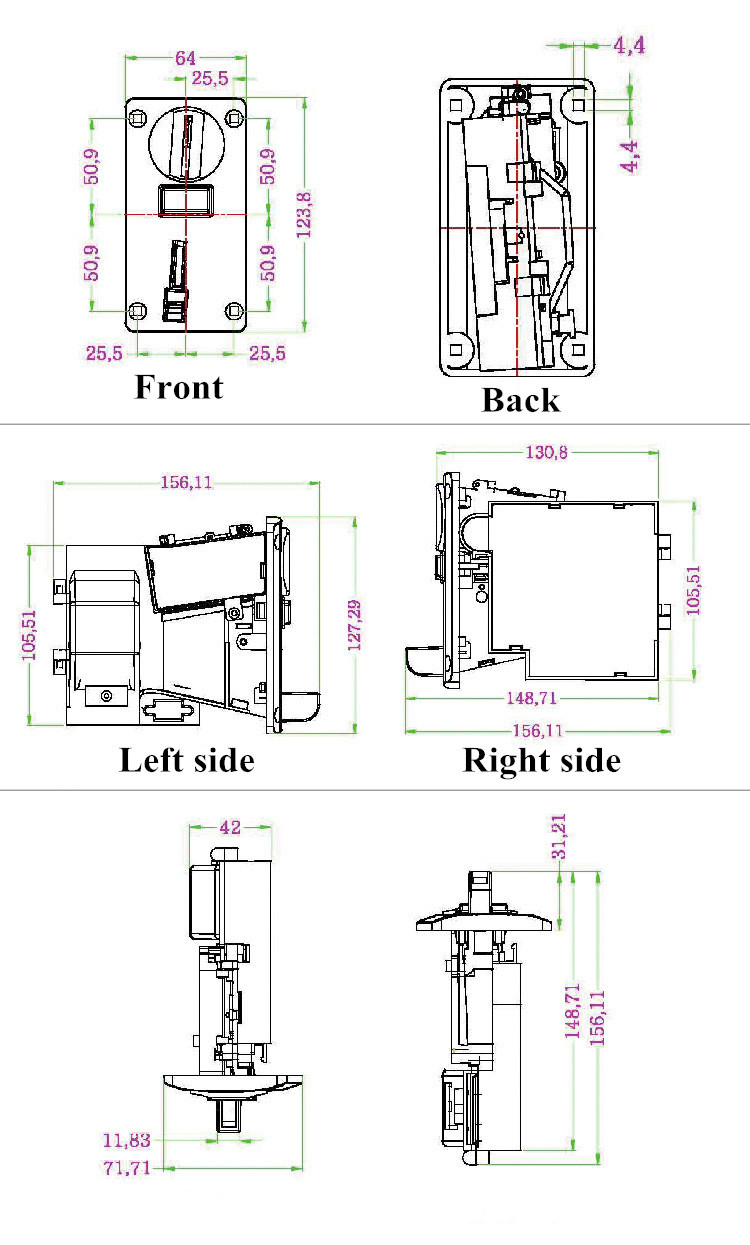

size
W63*D111*H123mm
weight
0.5kg
Interface Type
4PIN line
Scope of application
vending machines , Massager chairs , etc
The size of the coins can be used
diameter:12mm-29mm, thickness : 1mm-3mm
the coins can accept
Renminbi, Thai baht, Ukrainian currency, Euro, U.S. dollar, British pound, Taiwan dollar, Malaysian currency and other foreign
currencies
Features
1. Identify real and fake coins according to their material and diameter, with high accuracy.
2. Learning type. The currency can
be set at will, no need to clip sample coins for comparison, the CPU automatically memorizes the set samples
3. Up to 2 coins of
different specifications can be set (that is, 2 different coins can be recognized at the same time).
4. Three-stage pulse speed
signal output, N, 0. and N.C. output switch adjustment, set to Fan Guang. The signal output can be modified according to the need,
mode: pulse
5, can increase the counter signal output and time control function; can increase the prohibition of accepting coins
6. Good anti-fishing effect. The counter can be connected for easy sending.
7. Signal output mode: pulse

,
