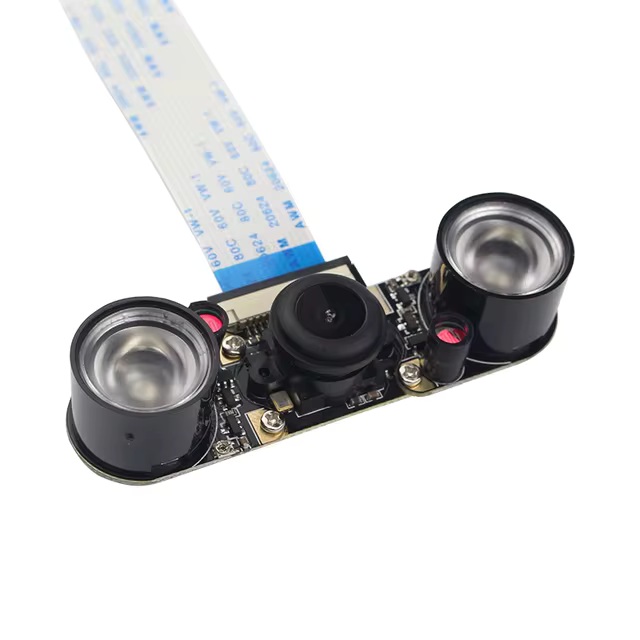

OV5647 Raspberry Pi Infrared Night Vision Camera (5MP, 130°FOV)

Product Overview

The OV5647 Raspberry Pi Infrared Night Vision Camera (5MP, 130°FOV) is a high-quality camera module designed for Raspberry Pi users who need excellent low-light and night vision performance. Equipped with a 5-megapixel sensor and a 130-degree field of view, this camera module ensures sharp image capture, making it ideal for surveillance, security, and automation applications.

Key Features

1. 5MP OV5647 Sensor: Delivers high-resolution images and video.
2. Infrared (IR) Night Vision: Includes IR LEDs for clear visibility in complete darkness.
3. 130° Wide Field of View (FOV): Covers a broader area for enhanced monitoring.
4. Compatible with Raspberry Pi: Works with all Raspberry Pi models supporting the CSI interface.
5. Easy Plug & Play: Connects directly to the Raspberry Pi CSI port for quick setup.
6. High-Quality Imaging: Supports resolutions up to 2592×1944 for images and 1080p video recording.
7. Compact & Lightweight: Ideal for embedded and mobile applications.
8. Versatile Applications: Perfect for security, wildlife monitoring, and robotics projects.

Technical Specifications

1. Sensor Model: OV5647
2. Resolution: 5 Megapixels (2592×1944)
3. Field of View (FOV): 130°
4. Infrared Night Vision: Yes (IR LEDs included)
5. Video Output: Supports 1080p@30fps, 720p@60fps, 480p@90fps
6. Interface: CSI (Camera Serial Interface)
7. Power Supply: 3.3V (from Raspberry Pi)
8. IR LED Power: External 3.3V/5V (if additional illumination is required)
9. Compatibility: Raspberry Pi 4, 3, 2, Zero, and other models with CSI interface
10. Dimensions: Compact design for easy integration

Benefits

1. Superior Low-Light Performance: Captures clear images even in complete darkness.
2. Wide Coverage: 130° FOV enhances monitoring and surveillance capabilities.
3. High Resolution: Produces sharp and detailed images with a 5MP sensor.
4. Easy to Use: Simple connection via the Raspberry Pi’s CSI port.
5. Flexible Mounting: Small and lightweight for various applications.
6. Multi-Purpose: Suitable for security systems, home automation, AI projects, and industrial use.

Usage Instructions

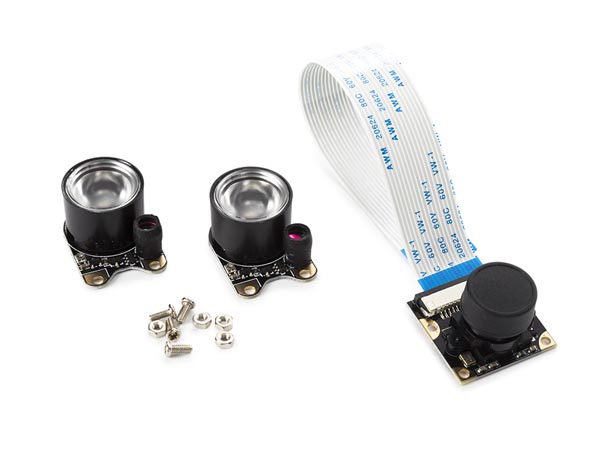

1. Connect the Camera: Attach the module to the Raspberry Pi’s CSI port using a ribbon cable.
2. Enable Camera Support: Access Raspberry Pi’s configuration settings (sudo raspi-config) and enable the camera module.
3. Power the IR LEDs (Optional): If needed, connect the IR LEDs to an external power source.
4. Test the Camera: Use raspistill or raspivid to capture images or record videos.
5. Adjust Settings: Modify brightness, contrast, and exposure for optimal performance.

Applications

1. Night Vision Surveillance & Security Systems
2. Wildlife & Outdoor Monitoring
3. Home Automation & Smart Monitoring
4. Robotics & AI Vision Projects
5. Machine Vision & Industrial Automation
6. DIY Raspberry Pi Night Vision Camera Projects

Why Choose the OV5647 Raspberry Pi Infrared Night Vision Camera?

This camera module is the perfect choice for Raspberry Pi users looking for reliable night vision capabilities. With its 5MP sensor, 130° wide-angle lens, and infrared support, it provides outstanding performance in low-light environments, making it ideal for security, surveillance, and advanced DIY projects.
