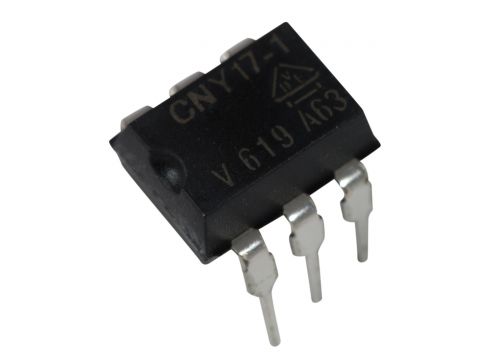

Photocoupler CNY17-1

Output Type: NPN Phototransistor
Number of Channels: 1 Channel
If – Forward Current: 10 mA
Maximum Collector Emitter Voltage: 70 V
Maximum Collector Current: 100 mA
Isolation Voltage: 5000 Vrms
Maximum Collector Emitter Saturation Voltage: 0.4 V
Vf – Forward Voltage: 1.65 V
Vr – Reverse Voltage: 6 V
Pd – Power Dissipation: 150 mW
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: – 55 C
Series: CNY
Packaging: Tube
Brand: Vishay Semiconductors
Collector-Emitter Breakdown Voltage: 70 V
Current Transfer Ratio: 80 %
Height: 3.81 mm
Length: 8.7 mm
Mounting Style: Through Hole
Factory Pack Quantity: 50
Width: 6.5 mm
