Specifications
-
-

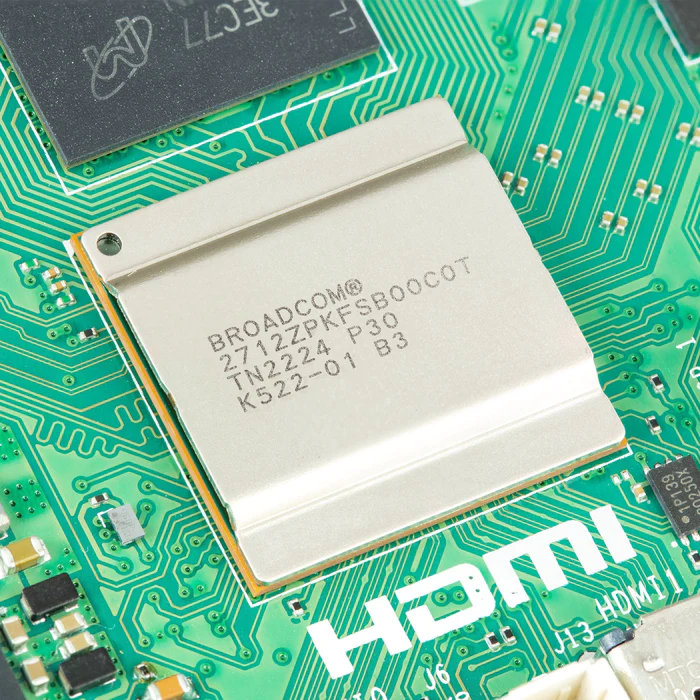

Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache
-
VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
-

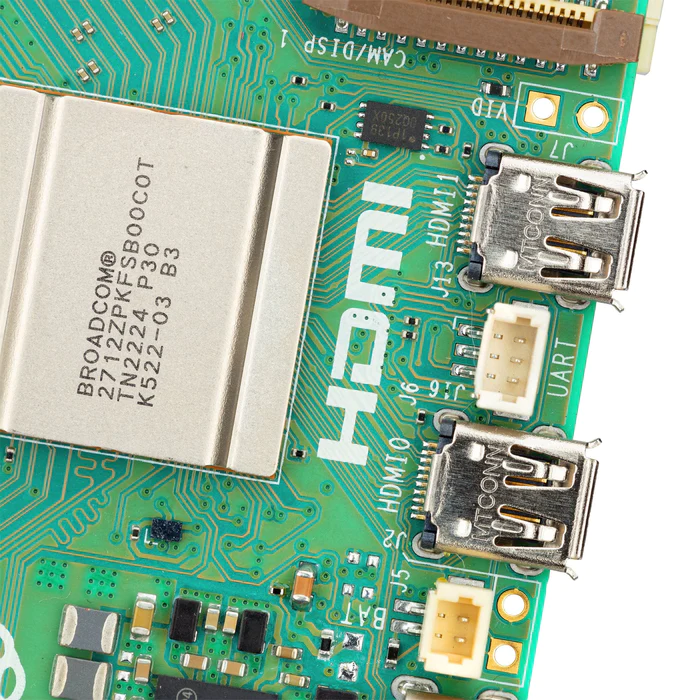

Dual 4Kp60 HDMI® display output with HDR support
-
4Kp60 HEVC decoder
-
LPDDR4X-4267 SDRAM 8GB
-
Dual-band 802.11ac Wi-Fi®
-
Bluetooth 5.0 / Bluetooth Low Energy (BLE)
-

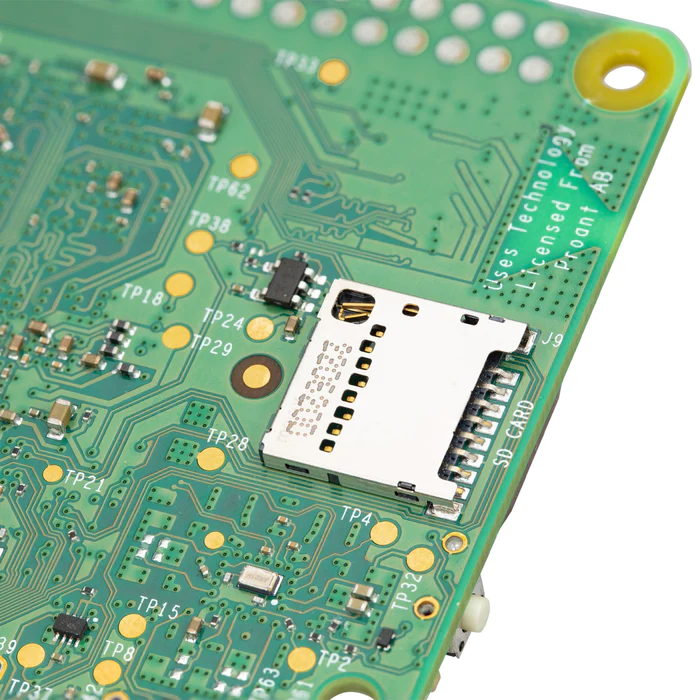

microSD card slot, with support for high-speed SDR104 mode
-
2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
-
2 × USB 2.0 ports
-
Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
-

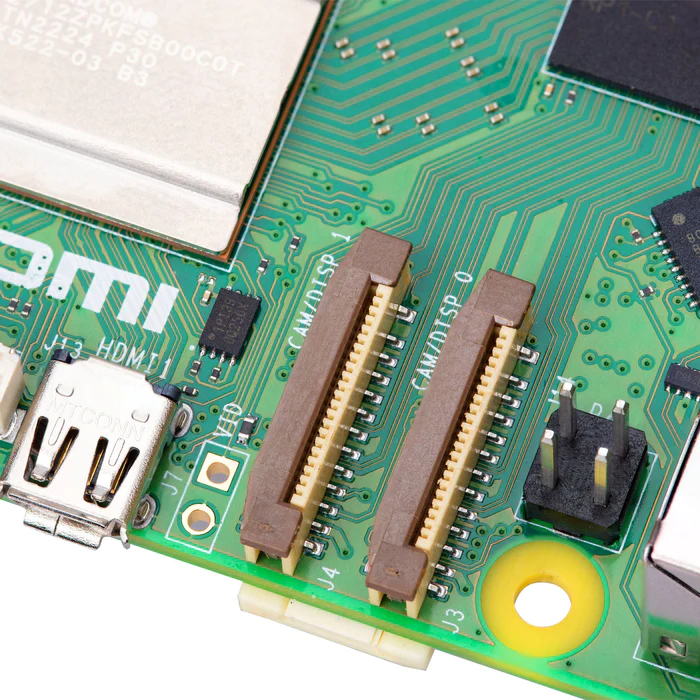

2 × 4-lane MIPI camera/display transceivers
-
PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
-
5V/5A DC power via USB-C, with Power Delivery support
-
Raspberry Pi standard 40-pin header
-
Real-time clock (RTC), powered from external battery
-

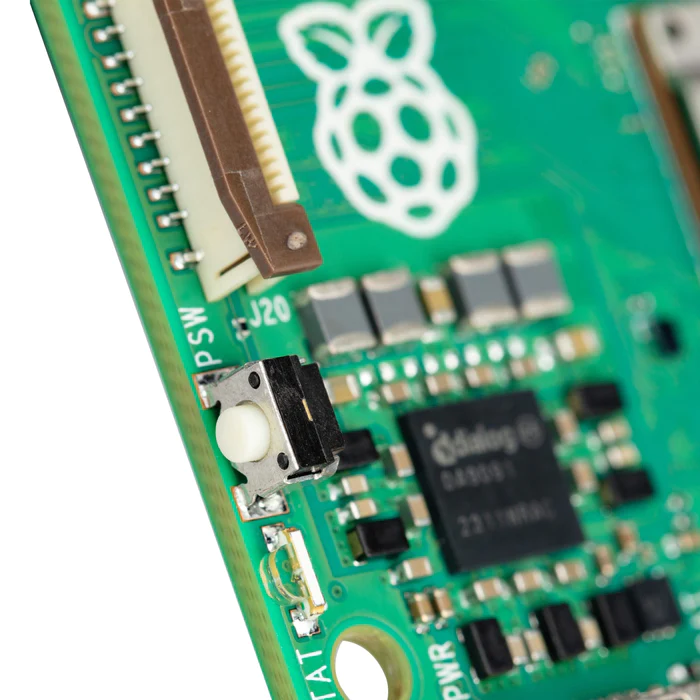

Power button
-
