Single-piece anodised aluminium heatsink

Heatsink-mounted, temperature-controlled blower fan attached by three screws

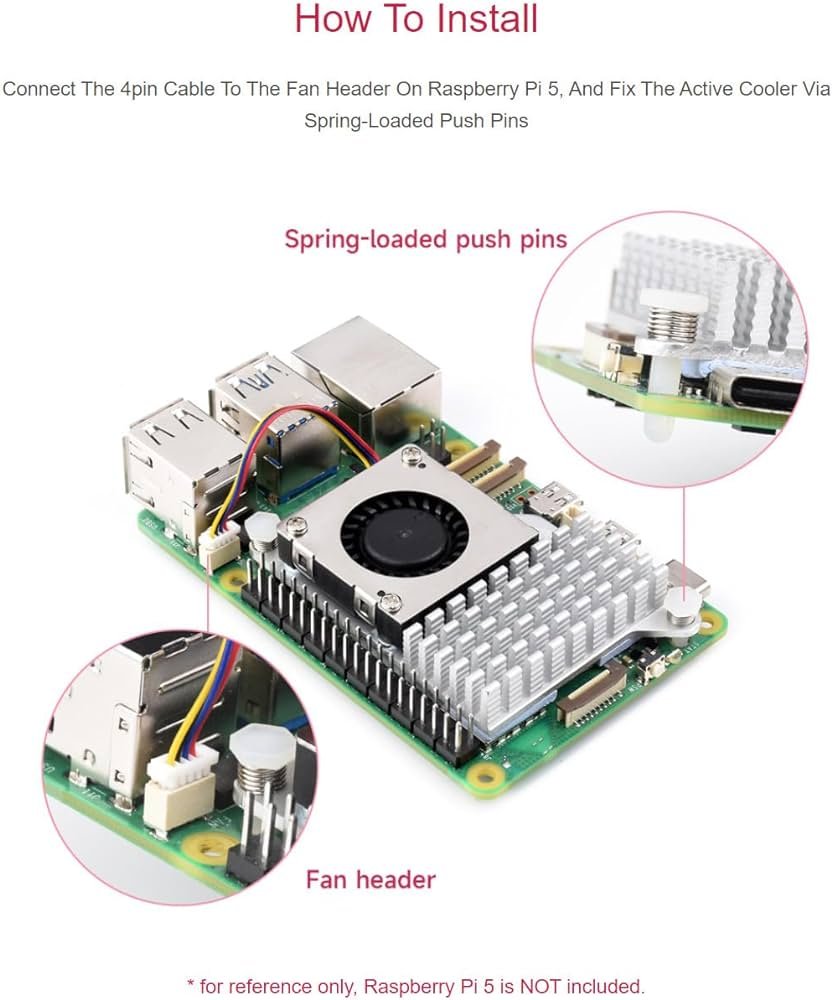

Spring-loaded push pins for mounting onto Raspberry Pi 5

Pre-applied thermal pads for heat transfer

We recommend that the Active Cooler is not removed once it is fitted to Raspberry Pi 5. Removal of the Active Cooler will cause the push pins and thermal pads to degrade and is likely to lead to product damage. Discontinue use of the Active Cooler if the push pins are damaged or deformed, or if they do not clip securely.

Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5

Fan speed control: Pulse width modulation control with tachometer

Maximum airflow: 1.09 CFM

Maximum fan speed: 8000 RPM +/- 15%

Product material: Anodised aluminium
