Overview of RAMPS 1.4 (RepRap Arduino Mega Shield)

The RAMPS 1.4 (RepRap Arduino Mega Pololu Shield) is a widely used control board designed specifically for 3D printers. It interfaces with the Arduino Mega microcontroller and provides a comprehensive solution for managing the various components of a 3D printing system.

Key Features

• Modular Design: The RAMPS 1.4 features a modular architecture that allows for easy integration of stepper motor drivers, such as the A4988 or DRV8825. This design facilitates straightforward upgrades and replacements of components as needed 1.
• Stepper Motor Control: It supports up to five stepper motor drivers, enabling control of the X, Y, Z axes, and an extruder, with an additional extruder option. This makes it suitable for multi-extruder setups.

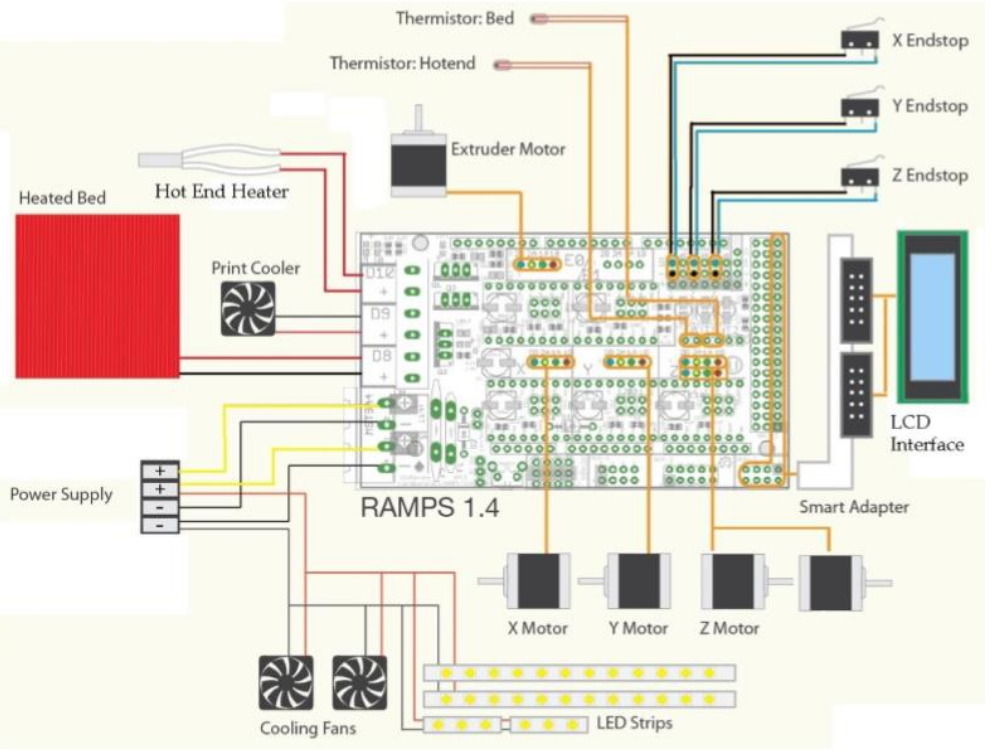

• Expansion Capabilities: The board includes multiple ports for connecting additional components, such as temperature sensors, fans, and LCD displays, providing flexibility for various 3D printing configurations.
• Temperature Control: RAMPS 1.4 supports thermistors for temperature monitoring, which is crucial for maintaining the correct temperatures for the hotend and heated bed during printing.
• Easy Assembly: The shield is designed to stack directly on top of the Arduino Mega, simplifying the assembly process. This allows users to quickly set up their 3D printer without extensive wiring 2.

Applications

The RAMPS 1.4 shield is primarily used in:

• 3D Printing: It is the backbone of many DIY 3D printers, providing the necessary control for motors, heating elements, and sensors.
• CNC Machines: With some modifications, it can also be adapted for use in CNC milling machines and laser engravers.
• Robotics Projects: Its capabilities can be leveraged in various robotics applications that require precise motor control.

Conclusion

In summary, the RAMPS 1.4 Arduino Mega Shield is an essential component for building and controlling 3D printers. Its modular design, support for multiple stepper motors, and ease of integration make it a popular choice among hobbyists and professionals alike, facilitating a wide range of applications in 3D printing and beyond.
