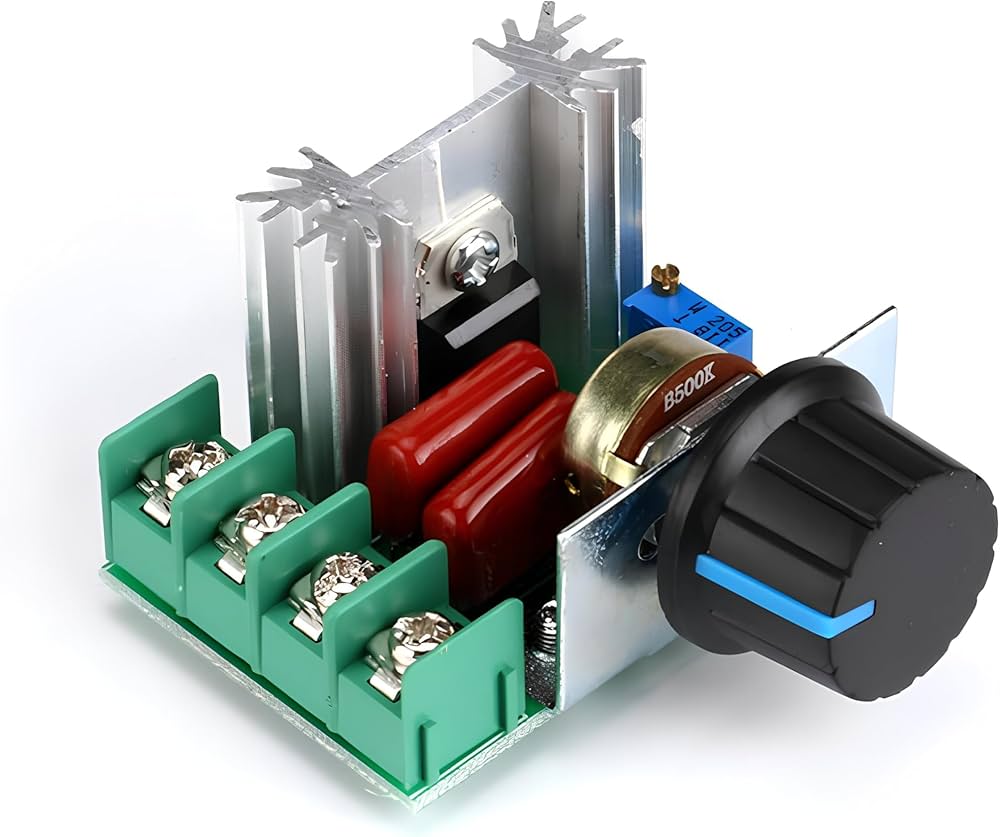

SCR Dimmer 2000W AC 220V

SCR (Silicon Controlled Rectifier) dimmer for controlling AC loads (like lights or heaters) is a common application for managing power across devices. A 2000W AC 220V SCR dimmer can typically be used for varying the brightness of incandescent lamps, controlling fan speeds, or adjusting heating elements.

Key Features of a 2000W AC 220V SCR Dimmer

1. Voltage Rating:
   • Designed to operate at 220V AC, which is standard in many countries.
2. Power Rating:
   • Capable of handling up to 2000Watts of load, ensuring it can dim high-wattage devices like lighting fixtures.
3. SCR Type:
   • Uses SCRs to control the power delivered to the load. SCRs are semiconductor devices that act like switches and can handle high voltages and currents.
4. Phase Control:
   • Most SCR dimmers use phase control (either leading or trailing edge) to adjust the voltage and current delivered to the load, thus dimming the lights or controlling the speed of a motor.
5. Control Method:
   • Many SCR dimmers come with a knob or slider to manually adjust the output, while more advanced types might use a microcontroller for digital control.
6. Protection Features:
   • Often include built-in protection mechanisms such as over-voltage, over-current, and thermal shutdown to ensure the device operates safely.

Basic Working Principle

SCR dimmers work by rapidly switching the AC power to the load on and off in a controlled manner. Here’s a simplified overview of how they function:

1. Phase Control: The SCR is triggered at a certain point in the AC cycle, which determines the amount of power delivered to the load:
   • Leading Edge Control: Turns on earlier in the AC cycle, delivering more power.
   • Trailing Edge Control: Turns off later in the AC cycle, effectively delivering less power.
2. Triac Operation: To effectively control AC loads, SCRs or Triacs can be used. When triggered, they maintain conduction until the current drops below a certain threshold (typically at the zero-crossing of the AC waveform).
3. Feedback Mechanism: Some dimmers have feedback control systems that monitor the load and adjust the SCR firing to maintain a set dimming level.

Applications

1. Lighting: Commonly used to dim incandescent, halogen, or certain types of LED lights.
2. Fans: Capable of controlling the speed of AC motors in fans and blowers.
3. Heating Elements: Can control resistance-based heating elements like toasters or space heaters.

Important Considerations

1. Compatibility with Loads: Ensure that the load can be dimmed. Dimming may not work with all types of bulbs (e.g., some LED bulbs require specific LED dimmers).
2. Heat Dissipation: SCRs can generate heat when controlling high power. Adequate heat sinking and ventilation must be ensured for safe operation.
3. Electrical Ratings: Always adhere to the specified electrical ratings of the dimmer to prevent overheating or damage.
4. Installation: Proper installation is vital for safety. If not experienced, consider hiring a qualified electrician for installation.
5. Noise: It may introduce electrical noise in circuits, particularly when used with sensitive devices. Additional filtering may be required.
