Round Plastic On/Off Button Switch 2PINPBS-11A 12MM

Model number 12mm PBS series

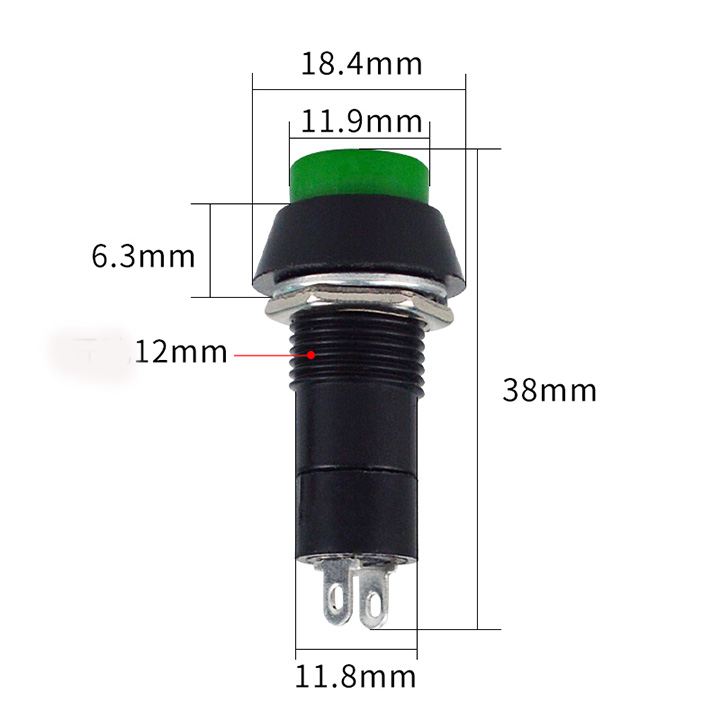

Mounting dimensions φ12
Contact resistance 50mΩ max
Insulation resistance 100MΩ min
Dielectric strength 2000Vac, 50Hz for 1min
Mechanical Life 2×105 cycles
Electrical life 5×104 cycles
IP degree IP40
Terminals 2 pin
Operation temperature -25 to 55℃
Operation humidity 45 to 85% RH, no-condensation
