Product Overview

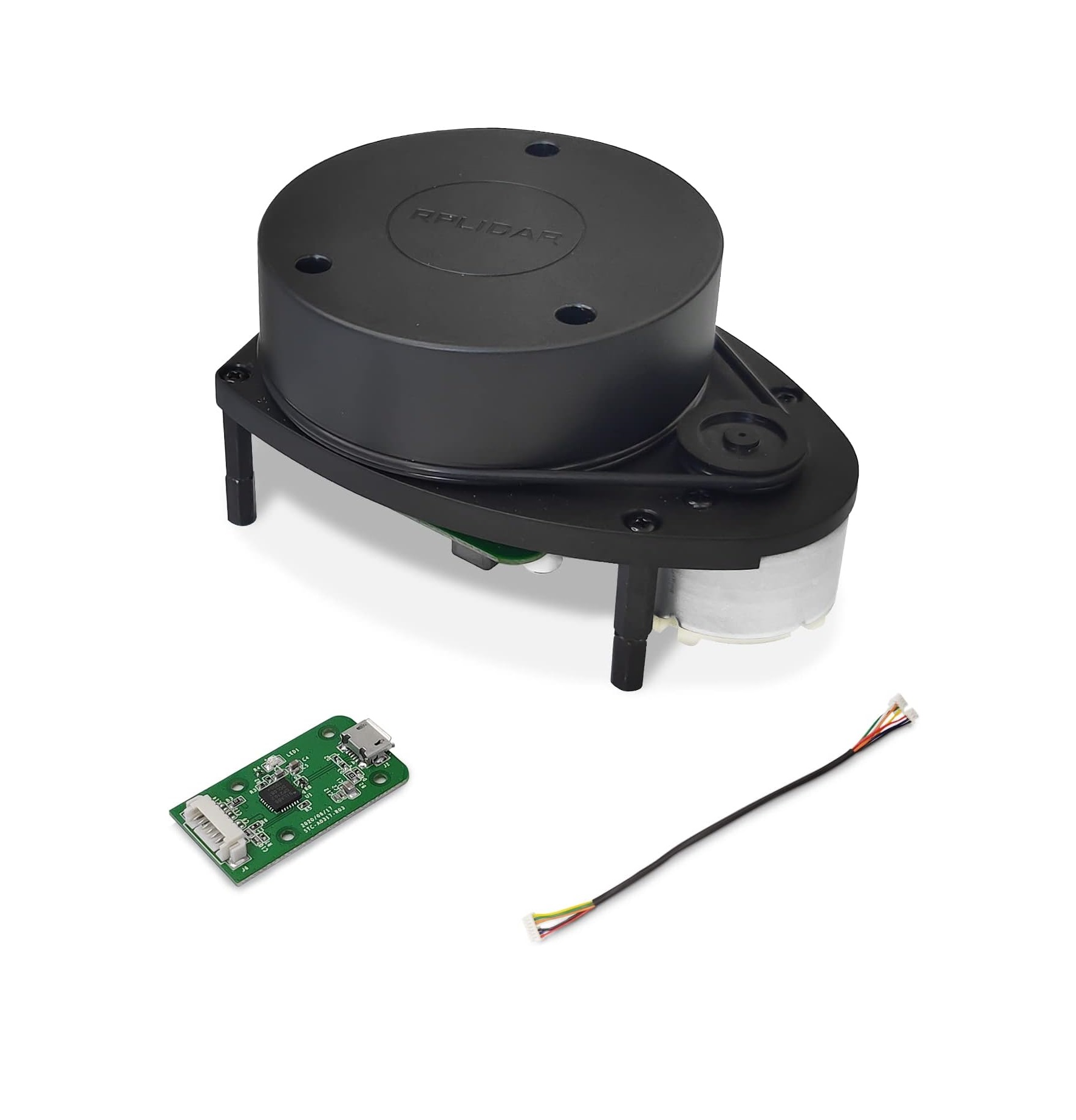

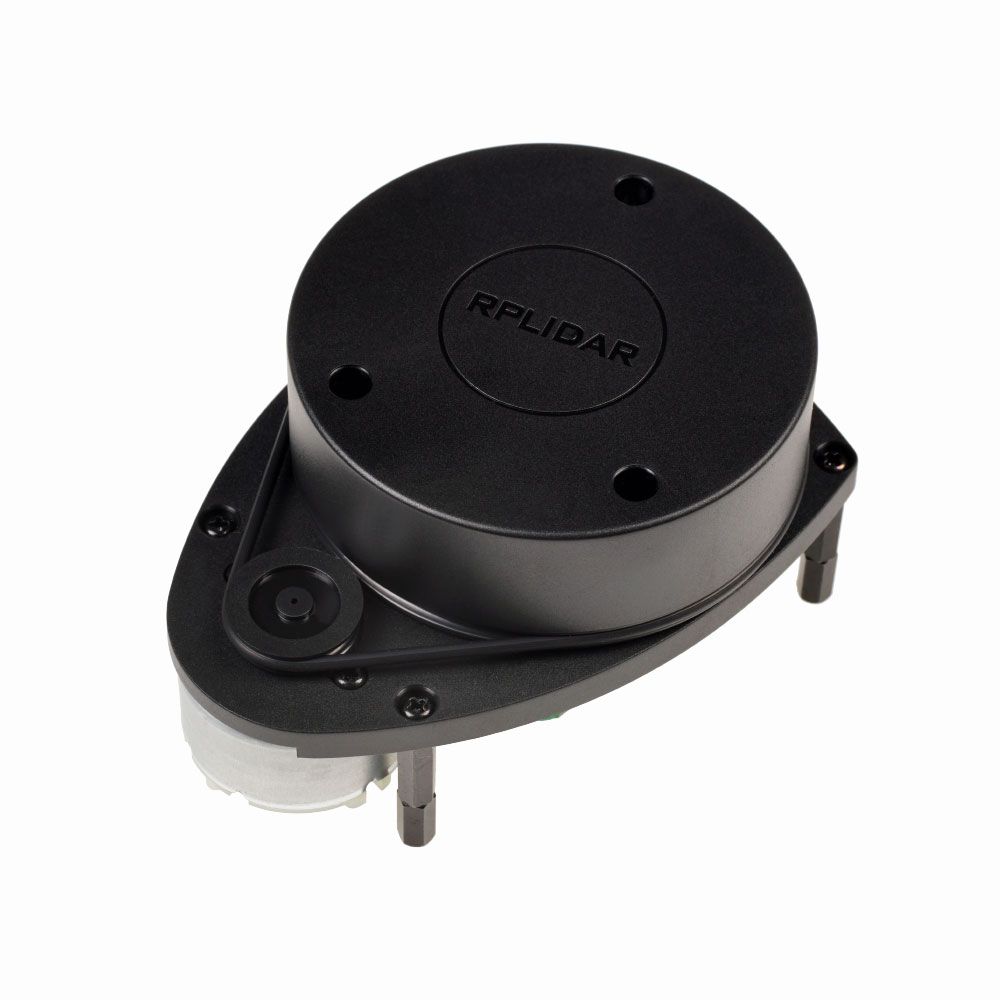

The Slamtec RPLIDAR 360° A1-M8-2D Laser Range Scanner is a high-performance LiDAR sensor designed for 360-degree scanning. Ideal for robotics, automation, and 3D mapping applications, it provides accurate distance measurements with a wide scan range. With its compact size and efficient scanning capabilities, it can be easily integrated into various projects that require precise spatial awareness. The device uses advanced 2D laser scanning technology to deliver reliable data in a wide environment.
Key Features
- 360° Scanning: Provides a full 360-degree scanning capability, capturing data from all directions for a comprehensive overview of the environment.
- Range: Offers a scanning range of up to 12 meters, suitable for a wide variety of applications.
- High Precision: Delivers accurate distance measurements with a high level of precision, ideal for navigation and mapping.
- Compact Design: Lightweight and compact, making it easy to integrate into robotic systems and other automated devices.
- Fast Scanning Speed: Capable of performing rapid scans, making it effective in real-time applications and dynamic environments.
- Integration with ROS: Supports Robot Operating System (ROS), allowing seamless integration with robotic systems and related software.
- Robust Performance: Designed for stable operation in various environments, including indoor and outdoor applications.
Technical Specifications
- Scanning Type: 2D Laser Range Finder
- Scan Range: 0.12 meters to 12 meters
- Scan Speed: 5.5 Hz (revolutions per second)
- Accuracy: ±2 cm at 1m
- Field of View: 360° with 8-meter range
- Resolution: 1° angular resolution
- Power Supply: 5V DC
- Interface: TTL UART / ROS (Robot Operating System)
- Weight: Approximately 220g
- Dimensions: 68 mm (diameter) x 45 mm (height)
Benefits
- Accurate 360° Mapping: Provides a complete 360-degree map of the environment, making it ideal for navigation and obstacle avoidance.
- Compact and Lightweight: Its small size and lightweight design allow easy integration into compact robotic systems.
- Wide Range of Applications: Perfect for mobile robots, drones, automated vehicles, and indoor/outdoor mapping tasks.
- Real-Time Data: Delivers real-time data for dynamic environments, ensuring timely and reliable measurements.
- Enhanced Precision: High accuracy allows for detailed mapping and precise measurements essential for various robotic tasks.
- Easy Integration: With support for ROS and standard communication interfaces, integrating the sensor into existing robotic systems is straightforward.
Usage Instructions
- Power the Device: Connect the Slamtec RPLIDAR to a 5V DC power supply.
- Connect to Computer: Use the TTL UART or ROS interface to connect the sensor to a computer or robot controller.
- Install Drivers and Software: Install the necessary drivers and software on the computer, ensuring compatibility with ROS.
- Start Scanning: Activate the device and start the scanning process, capturing real-time distance measurements.
- Analyze Data: Process the scanned data for various applications such as 2D mapping, object detection, and obstacle avoidance.
Applications
- Robotics: Used for robot navigation, mapping, and localization tasks.
- Autonomous Vehicles: Essential for obstacle detection and avoidance in autonomous vehicle systems.
- Drones: Provides detailed mapping and range data for drones in dynamic environments.
- Indoor and Outdoor Mapping: Ideal for creating accurate 2D maps of both indoor and outdoor environments.
- Industrial Automation: Can be used in automated systems for monitoring and navigation in warehouses and factories.
Why Choose the Slamtec RPLIDAR 360° A1-M8-2D Laser Range Scanner?
The Slamtec RPLIDAR 360° A1-M8-2D Laser Range Scanner offers a perfect blend of high performance, compact size, and ease of integration, making it an ideal choice for anyone involved in robotics, automation, or mapping projects. Its ability to scan 360 degrees and provide accurate range measurements in real-time makes it an invaluable tool for creating detailed environmental maps and enabling intelligent navigation in dynamic systems.
