Product Overview

The STM32F103C6T6 (No Debugging Function) STM32 Development Board is a compact and cost-effective board designed for embedded applications, prototyping, and educational purposes. Based on the powerful STM32F103C6T6 microcontroller with an ARM Cortex-M3 core (running up to 72 MHz), this board delivers reliable performance for various projects. It is ideal for applications where integrated debugging is not required, enabling developers to focus on implementing core functionalities while using external debugging tools if needed.

Key Features:

• Powerful Microcontroller:
  • Powered by the STM32F103C6T6, featuring an ARM Cortex-M3 core with a clock speed of up to 72 MHz.
• Cost-Effective Design:
  • Lacks an onboard debugging interface, which reduces cost and simplifies the board for projects that use external debugging solutions.
• Versatile I/O Options:
  • Provides a range of digital I/O pins, analog-to-digital converter (ADC) channels, PWM outputs, and communication interfaces (UART, I2C, SPI) to support various embedded applications.
• Compact Form Factor:
  • Designed for easy integration into small-scale projects, making it suitable for DIY electronics and rapid prototyping.
• Low Power Consumption:
  • Optimized for energy efficiency, ideal for battery-powered applications.
• Educational & Prototyping Use:
  • A great platform for learning embedded system programming and developing custom applications.

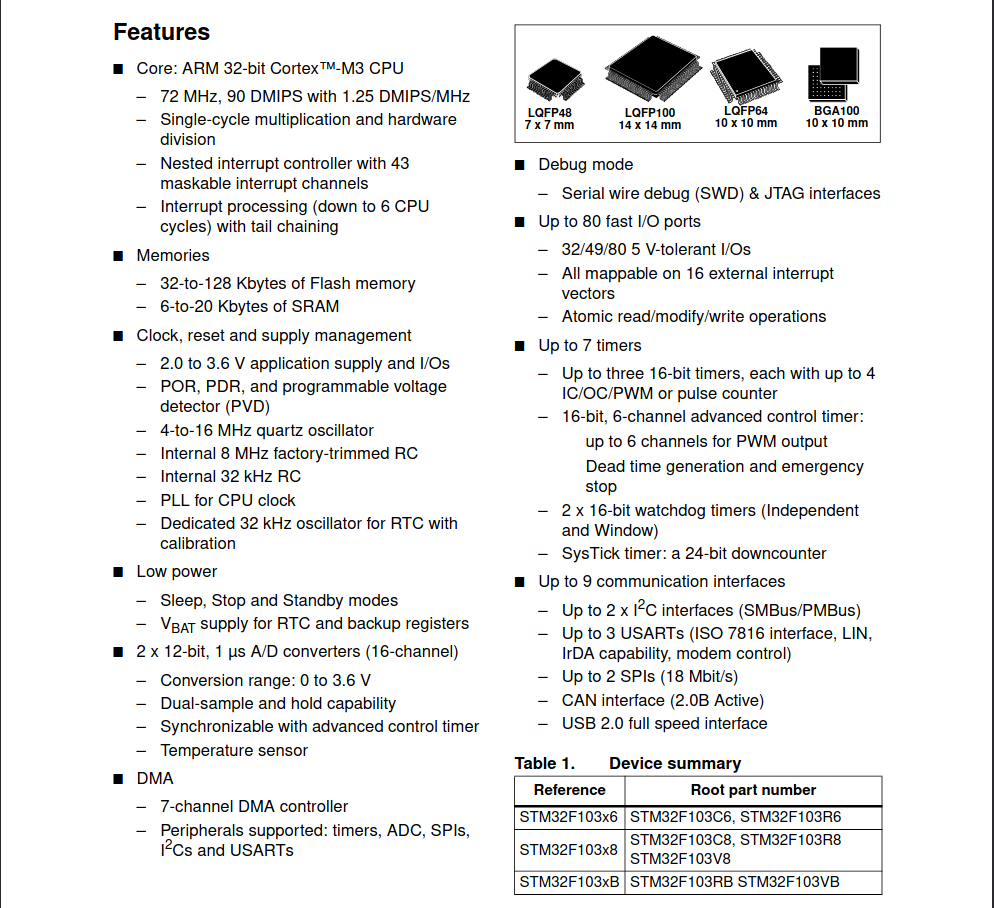

Technical Specifications:

• Microcontroller: STM32F103C6T6 (ARM Cortex-M3)
• Clock Speed: Up to 72 MHz
• Flash Memory: 64 KB
• SRAM: 20 KB
• Operating Voltage: 3.3V
• I/O Interfaces: Digital I/O, ADC channels, PWM, UART, I2C, SPI
• On-Board LED: Yes (for basic status indication)
• Debugging: No onboard debugging function; external tools required for debugging
• Form Factor: Compact design suitable for prototyping (exact dimensions vary by manufacturer)

Applications:

• Embedded system prototyping
• Educational projects and training in ARM Cortex-M programming
• DIY electronics and hobby projects
• Industrial control systems and IoT devices
• Custom applications where a cost-effective, low-power microcontroller solution is required

Why Choose This STM32 Development Board?

The STM32F103C6T6 (No Debugging Function) STM32 Development Board provides a robust, low-cost platform that delivers high performance and versatile I/O capabilities. Its streamlined design makes it an excellent choice for projects that do not require built-in debugging, allowing developers and learners to focus on core application development using external debugging solutions as needed.
