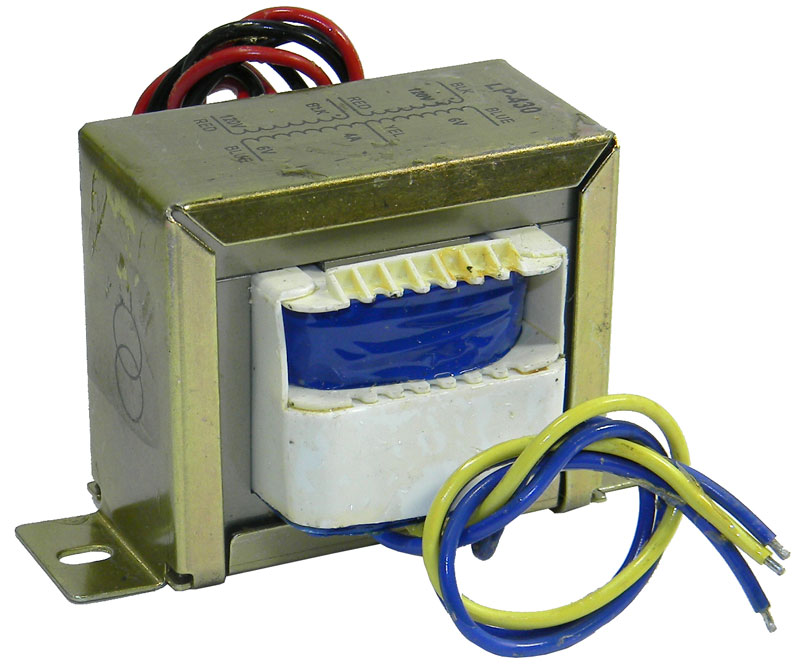

Transformer 220V 6-0-6V (1A)

Specifications

1. Primary Voltage:
   • The primary winding is designed to connect to a 220V AC power source, commonly found in many regions around the world.
2. Secondary Voltage:
   • The transformer has a center-tapped secondary output that provides two 6V outputs relative to a common center tap (0V). This means that you have two 6V outputs (6V and -6V) that can be used for powering circuits that require dual polarity.
3. Current Rating:
   • The transformer has a maximum output current rating of 1A from the secondary side. This allows it to supply a maximum of 1 ampere of current without overheating or causing damage.

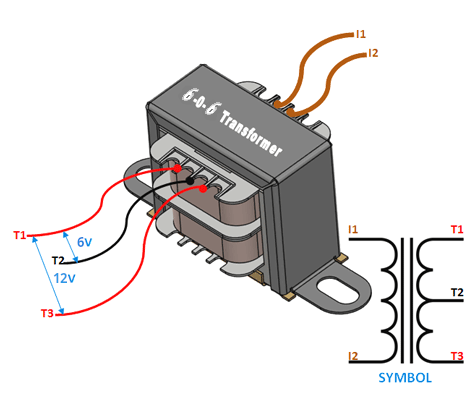

4. Winding Configuration:
   • The transformer consists of three connections at the secondary: one at the center tap (0V) and two outer connections (6V and -6V). This center-tapped configuration is beneficial for applications that require both positive and negative voltage supplies.
5. Core Material:
   • Typically constructed with a laminated silicon steel core or ferrite core, which enhances efficiency by minimizing losses due to heat.
6. Physical Design:
   • Available in various forms, including encapsulated models for enhanced safety or open-frame designs for integration into custom circuits.
7. Safety Features:
   • Provides electrical isolation between the primary and secondary windings, which is important for safety in applications involving low voltage.

Applications

• Audio Equipment: Commonly used in audio amplifiers and mixers that require dual voltage rails for operational amplifiers.
• Power Supplies: Ideal for constructing linear power supplies where both positive and negative voltage outputs are needed, particularly in analog circuits.
• Signal Processing Circuits: Useful for powering circuits that require differential inputs or outputs, like instrumentation amplifiers and ADCs.
• Hobby Electronics: An excellent option for electronics enthusiasts and hobbyists who need a reliable power source for various low-voltage projects.
• Testing and Measurement Equipment: Frequently used in test equipment that requires both positive and negative voltages for accurate readings.

Important Considerations

• Load Limitations: It is important to ensure that the total load connected across either of the 6V outputs does not exceed 1A to prevent overheating and potential failure.
• Thermal Management: Adequate ventilation must be provided during operation, especially when the transformer is used near its maximum rating for extended periods.
• Voltage Regulation: Consider additional voltage regulation components in circuits requiring stable and precise voltage levels, as variations may occur depending on load conditions.
• Compliance and Safety: Always confirm that the transformer adheres to local electrical codes and safety standards, especially in professional applications.

This 220V to 6-0-6V transformer is a versatile component useful in various electronic applications requiring dual-polarity power supplies, making it an essential part of many circuits in audio, signal processing, and testing applications.
