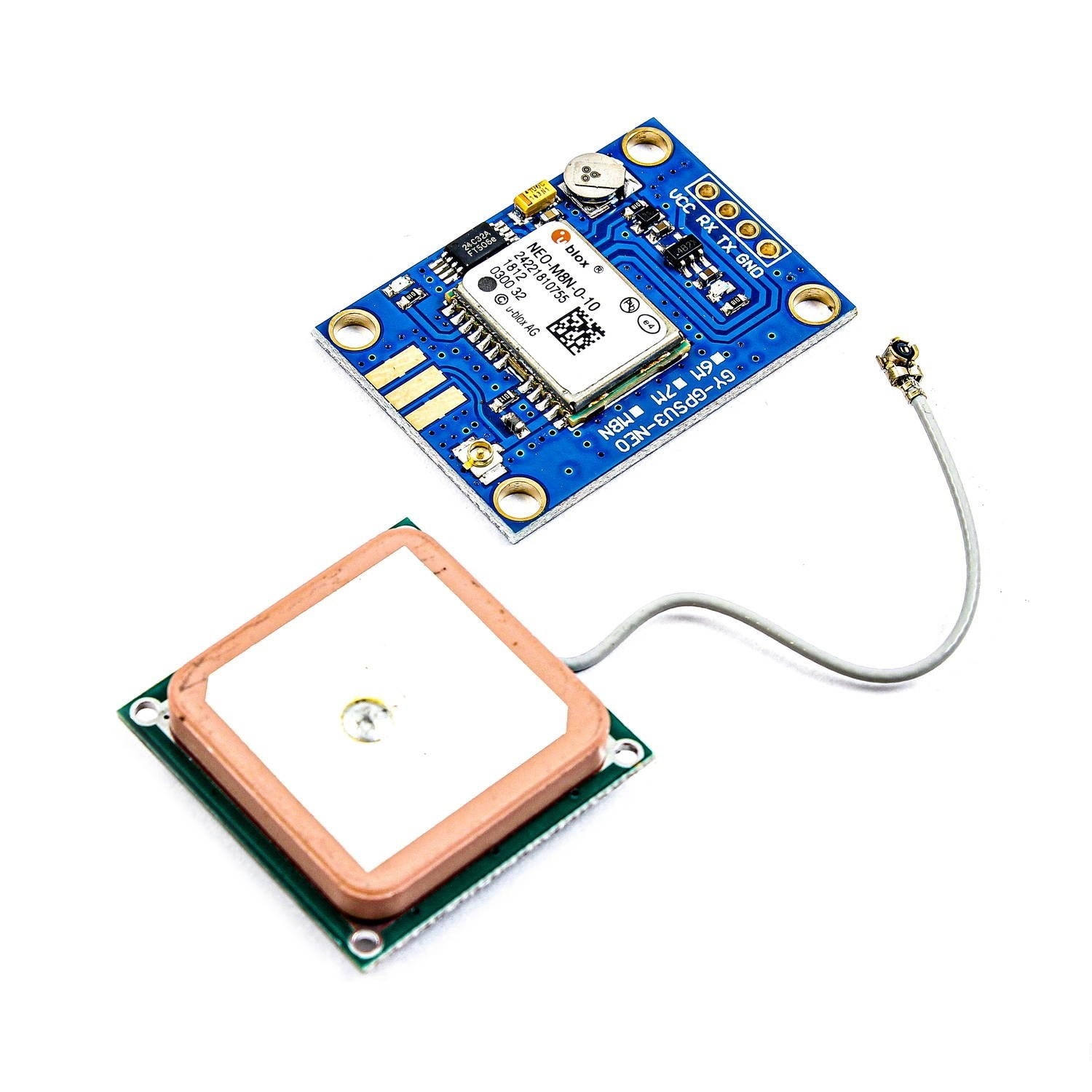

Ublox NEO-8M GPS Module with Antenna

Product Overview

The Ublox NEO-8M GPS Module with Antenna is a high-performance GPS receiver designed for accurate positioning and navigation applications. Featuring high sensitivity, low power consumption, and fast signal acquisition, it is ideal for drones, robotics, IoT projects, and vehicle tracking. The module comes with an external antenna to ensure reliable satellite reception even in challenging environments.

Key Features

1. High Accuracy GPS: Supports precise positioning with a high-performance Ublox NEO-8M chipset.
2. External Active Antenna: Enhances signal reception and ensures stable operation.
3. Multiple GNSS Support: Compatible with GPS, GLONASS, Galileo, and BeiDou.
4. Built-in EEPROM: Stores configuration settings for quick startup and seamless integration.
5. Low Power Consumption: Optimized for battery-powered applications.
6. High Sensitivity: Quickly acquires satellite signals even in low-signal environments.
7. UART Communication: Easily interfaces with Arduino, Raspberry Pi, and other microcontrollers.

Technical Specifications

1. Chipset: Ublox NEO-8M
2. Supported Systems: GPS, GLONASS, Galileo, BeiDou
3. Operating Voltage: 3.3V – 5V DC
4. Communication Interface: UART (TX, RX)
5. Baud Rate: Default 9600 bps (adjustable)
6. Position Accuracy: Up to 2.5 meters
7. Cold Start Time: ≤26 seconds
8. Hot Start Time: ≤1 second
9. Antenna Type: Active external antenna (included)
10. Operating Temperature: -40°C to 85°C
11. Dimensions: 25mm x 25mm x 8mm

Benefits

1. Fast & Accurate Positioning: Provides real-time tracking with high precision.
2. Reliable Signal Reception: External active antenna ensures stable operation even in weak signal areas.
3. Easy to Integrate: Works with Arduino, Raspberry Pi, ESP8266, and other development boards.
4. Wide Compatibility: Supports multiple GNSS systems for global coverage.
5. Low Power Operation: Ideal for portable and IoT applications.

Usage Instructions

1. Wiring:
   • VCC → 3.3V or 5V
   • GND → Ground
   • TX → Microcontroller RX
   • RX → Microcontroller TX
2. Configuration: Use software like U-Center to configure baud rates and communication settings.
3. Testing: Monitor GPS data using serial communication on a computer or microcontroller.
4. Integration: Implement location-based applications with GPS coordinates output via UART.

Applications

1. Drones & UAV Navigation
2. Vehicle Tracking & Fleet Management
3. Geographical Mapping & Surveying
4. Smart Agriculture & IoT Projects
5. Personal GPS Tracking Devices

Why Choose Ublox NEO-8M GPS Module?

With its superior accuracy, external active antenna, and multi-GNSS support, the Ublox NEO-8M GPS Module is an excellent choice for reliable and precise location tracking. It is easy to integrate into various projects, ensuring optimal performance for navigation and positioning applications.
