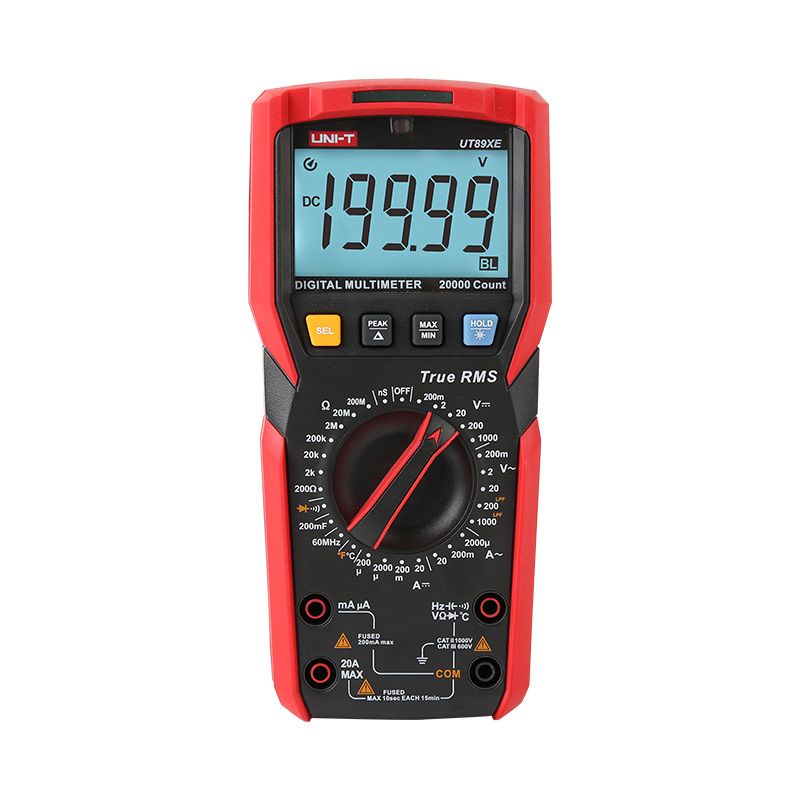

UNI-T UT89XE Digital Multimeter

The UNI-T UT89XE is a high-performance digital multimeter designed for professionals and enthusiasts who require precise measurements in various electrical applications. This multimeter combines advanced features with user-friendly functionality, making it a reliable tool for a wide range of tasks.

Key Specifications

• Display:
  • Type: 3 5/6 digit LCD
  • Maximum Display: 20,000 counts
  • Sampling Rate: 3 times per second
• Measuring Ranges:
  • DC Voltage: Up to 1000V
  • AC Voltage: Up to 1000V (True RMS)
  • DC Current: Up to 20A
  • AC Current: Up to 20A (True RMS)
  • Resistance: Up to 60MΩ
  • Capacitance: Up to 200μF
  • Frequency: Up to 10MHz
  • Temperature: -20°C to 1000°C (with appropriate thermocouple)

Features

• True RMS Measurement: Ensures accurate readings for both AC and DC signals, particularly for non-sinusoidal waveforms, which is essential for modern electrical applications.
• Manual Range Selection: Allows users to select the appropriate measurement range for enhanced accuracy and flexibility.
• Non-Contact Voltage (NCV) Detection: Quickly identifies live wires without direct contact, enhancing safety during electrical work.
• Data Hold Function: Freezes the current reading on the display for easier analysis.
• MAX/MIN Function: Records the maximum and minimum values during measurements for better monitoring.
• Audible and Visual Alarms: Alerts users to specific conditions, such as continuity or voltage presence.
• Auto Power Off: Conserves battery life by automatically shutting down after a period of inactivity.
• Diode and Continuity Testing: Built-in functions for testing diodes and checking circuit continuity, essential for troubleshooting.

Build and Design

• Durable Construction: The UT89XE is designed to withstand tough working conditions, making it suitable for field use.
• Compact and Lightweight: Easy to carry and handle, ideal for both professional and personal use.
• User-Friendly Interface: Simple layout and controls make it accessible for users of all skill levels.

Applications

• Electrical Maintenance: Ideal for electricians and technicians for troubleshooting and repair tasks.
• Electronics Testing: Useful for hobbyists and professionals in electronics design and testing.
• Industrial Use: Suitable for various industrial applications requiring reliable measurements.

Conclusion

The UNI-T UT89XE digital multimeter is a powerful and versatile tool that meets the needs of a wide range of users. With its advanced features, robust design, and accurate measurement capabilities, it is an excellent choice for anyone involved in electrical and electronic work. Whether you’re performing routine measurements or troubleshooting complex systems, the UT89XE is equipped to deliver reliable performance.
