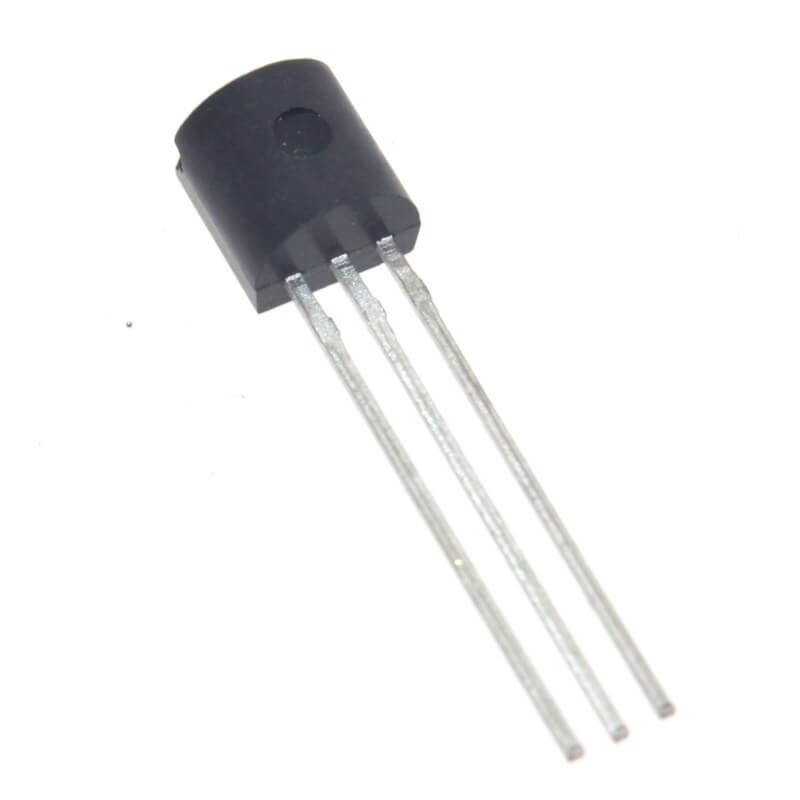

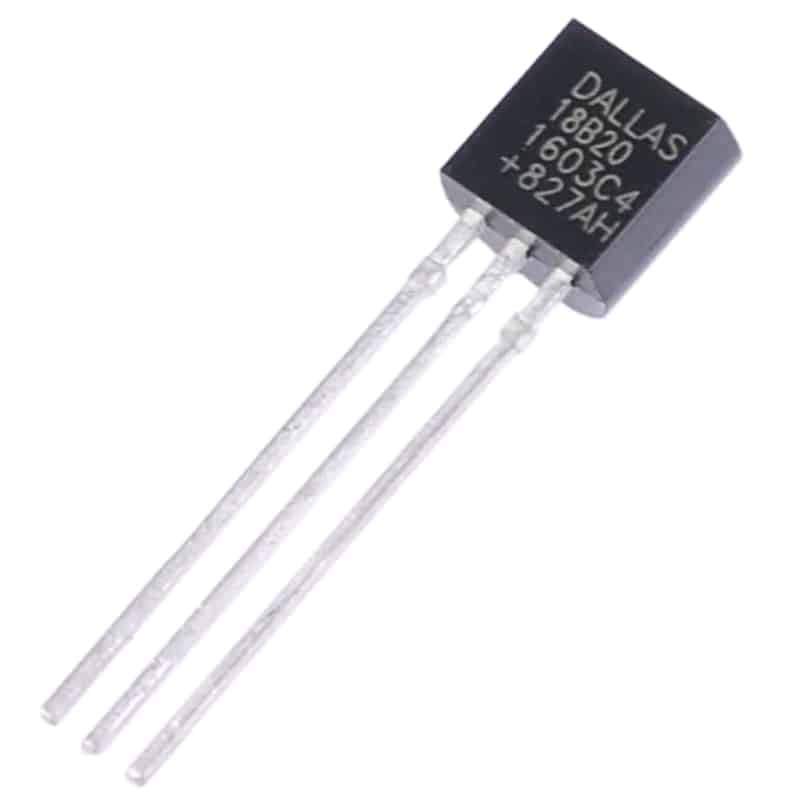

DS18B20 Digital Temperature Sensor Original

DS18B20
DS18B20 TO92 Sensor 18B20 TO-92 Digital Thermometer
Part Number

DS18B20

Sensor Type : Digital, Local
Sensing Temperature – Local :-55°C ~ 125°C
Sensing Temperature: – Remote –
Voltage – Supply :3 V ~ 5.5 V
Resolution : 11 b
Features Output Switch, Programmable Limit, Programmable Resolution
Accuracy – Highest (Lowest): ±0.5°C (±2°C)
Test Condition: -10°C ~ 85°C (-55°C ~ 125°C)
Operating Temperature: -55°C ~ 125°C
Package / Case: TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package: TO-92-3
