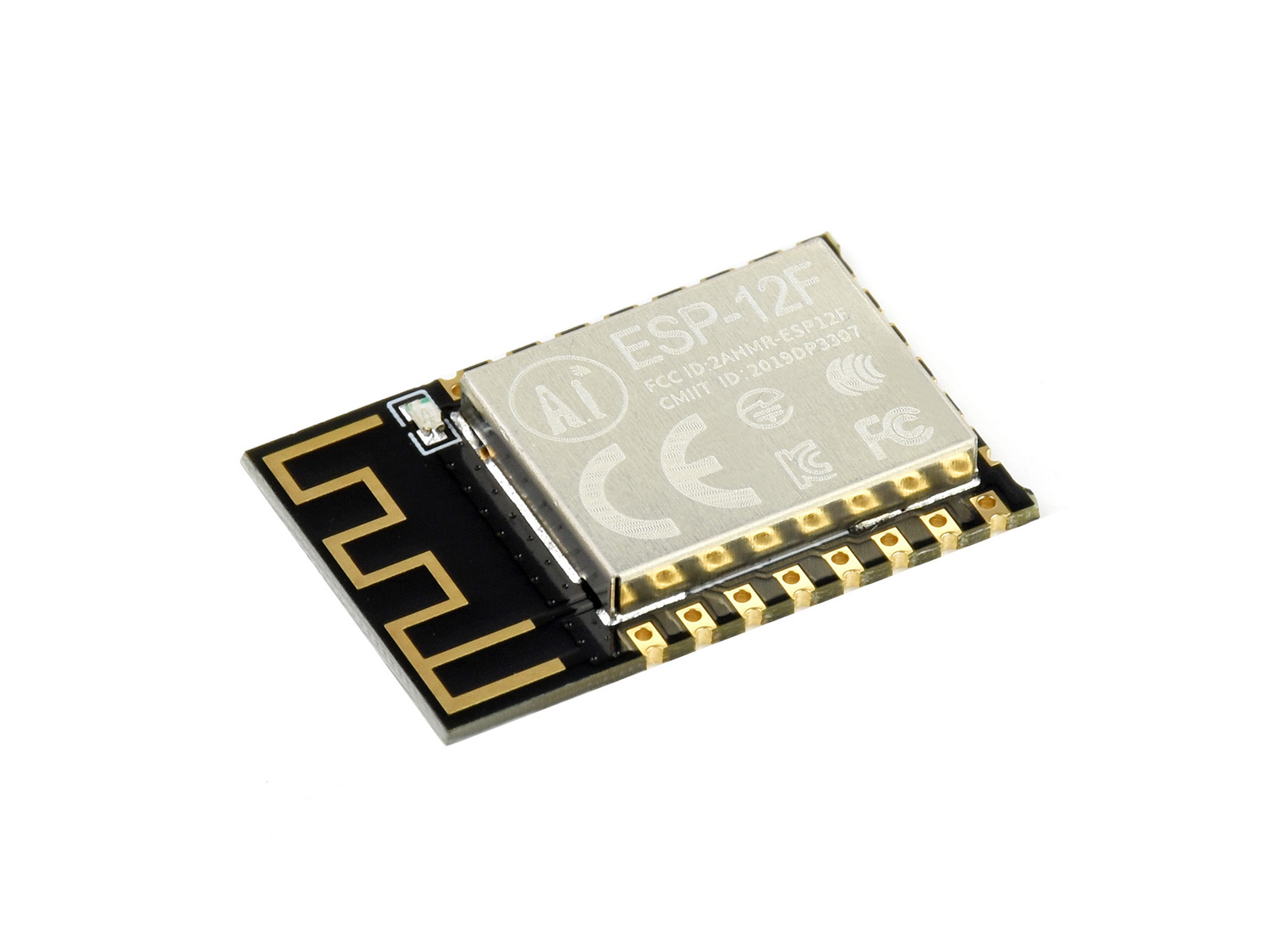

The ESP8266 ESP-12F is a powerful and versatile WiFi module that is widely used in IoT (Internet of Things) applications. It is based on the ESP8266 chip developed by Espressif Systems, which integrates a microcontroller with WiFi capabilities.
Key Features
- Processor: The ESP8266 operates at 80 MHz and includes a full WiFi front-end, functioning both as a client and an access point. It also has a built-in TCP/IP stack with DNS support, making it suitable for various networking tasks 1.
- Memory: The module comes with 32Mbit (4MB) of flash memory, allowing for ample space to store firmware and applications.
- Antenna: It features an onboard PCB antenna, which enhances its wireless performance. The antenna design in the ESP-12F is optimized compared to its predecessor, the ESP-12E, providing better RF performance 2.
- Package: The ESP-12F is available in a compact SMD22 package, making it easy to integrate into various projects.
Pin Configuration
The ESP-12F module has multiple GPIO (General Purpose Input/Output) pins, which can be used for various functions, including digital input/output, PWM, and ADC (Analog to Digital Conversion). It typically includes:
- 11 GPIO pins
- 1 ADC pin for analog input
- Power Supply: Operates at 3.3V, with a maximum current draw of around 500mA during transmission.
Applications
The ESP8266 ESP-12F is suitable for a wide range of applications, including:
- Home Automation: Control lights, appliances, and security systems remotely via WiFi.
- IoT Projects: Connect sensors and devices to the internet for data collection and monitoring.
- Wearable Technology: Integrate into smart wearables for health monitoring and connectivity.
- Robotics: Use in robotic systems for remote control and data transmission.
Programming and Development
The ESP-12F can be programmed using various platforms, including the Arduino IDE, which makes it accessible for hobbyists and developers. It supports multiple programming languages and frameworks, allowing for flexibility in development.
Conclusion
The ESP8266 ESP-12F WiFi module is a robust solution for creating connected devices and applications. Its combination of processing power, memory, and wireless capabilities makes it a popular choice for developers looking to build innovative IoT solutions. If you have any specific questions or need further details, feel free to ask!
