Overview

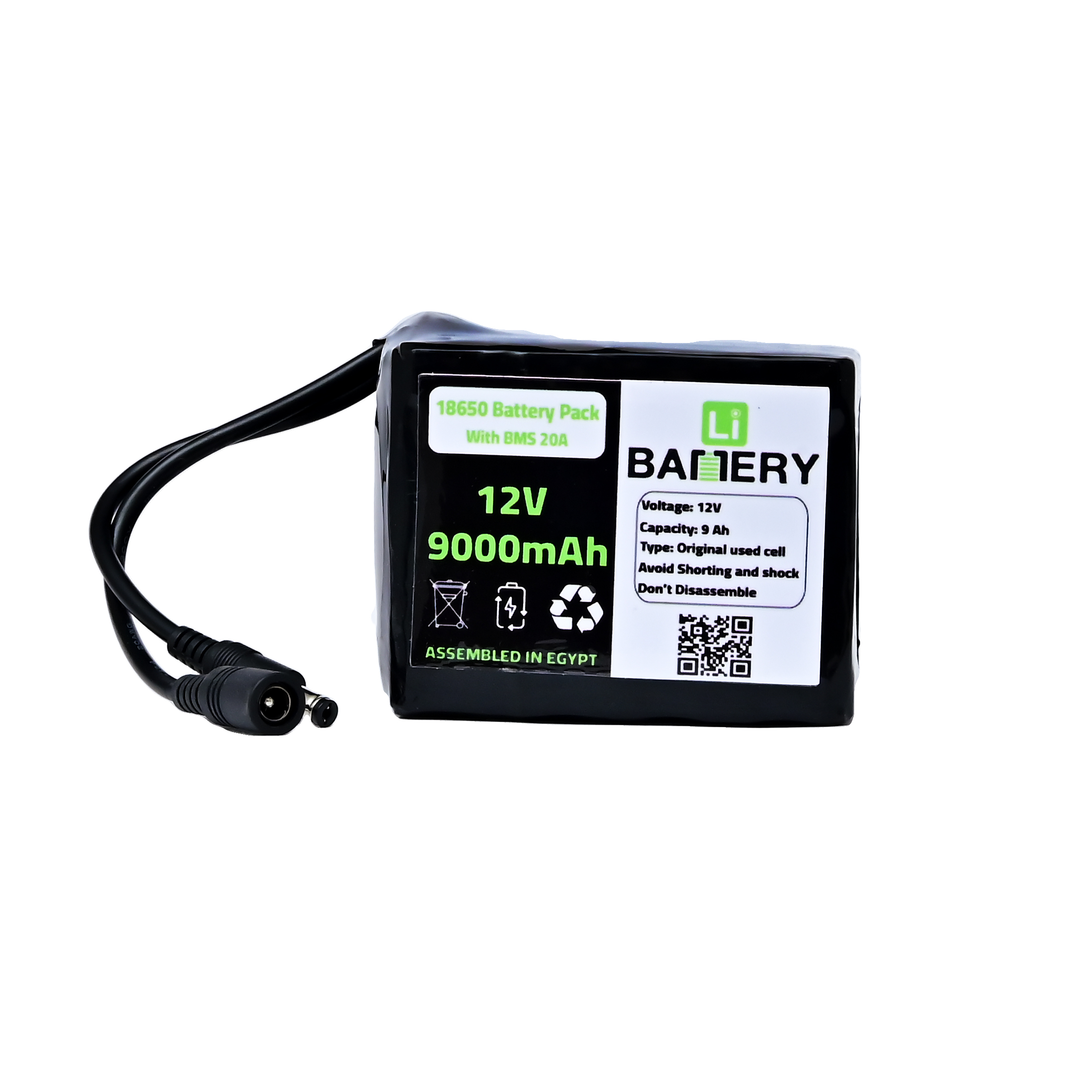

This Li-ion Rechargeable Battery Pack has a nominal voltage of 12.6 volts and is a 3s4p battery pack. The 12V lithium-ion battery pack contains 12 cells connected in series and parallel, giving it a capacity of 9000mAh.
The battery pack has a built-in BMS that protects the battery from overcharging, over-discharging and short circuit.

Recommended Charger – Charging Time

*12.6v 1.5A Lithium Battery Charger – 5Hrs.
*12.6v 2A Li-ion Battery Charger – 3 Hrs. 30Min.
*12.6v 3A Li-ion Battery charger – 2Hrs 30Min.
*12.6v 5A Lithium Battery Charger – 1 Hr 30Min.

Specification

Charging Voltage- 12.6V
Charging Current- 3.6A
Nominal Pack Voltage- 11.1V
Max. Discharge Current- Tested for 7.2A

Protection (Included BMS)
Short Circuit Protection
Overvoltage cut-off- 12.8
Undervoltage cut-off- 9.2V

Warranty Terms:

This battery pack comes with 1 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.

Applications:

•


  Small scale UPS Battery





•


  Battery for GPS Tracking – Vehicle Tracking – Asset Tracking





•


  Wi-Fi Modem or Router Battery for backup





•


  12V Remote CCTV Camera





•


  PSP





•


  Industrial Machines





•


  Emergency Lights





•


  Robotics and RC cars





•


  Music Players and Audio Systems




Warning

Note: Lithium batteries can become unstable, if not handled properly, resulting in heat or fire. Safety precautions and prior knowledge is advised.
