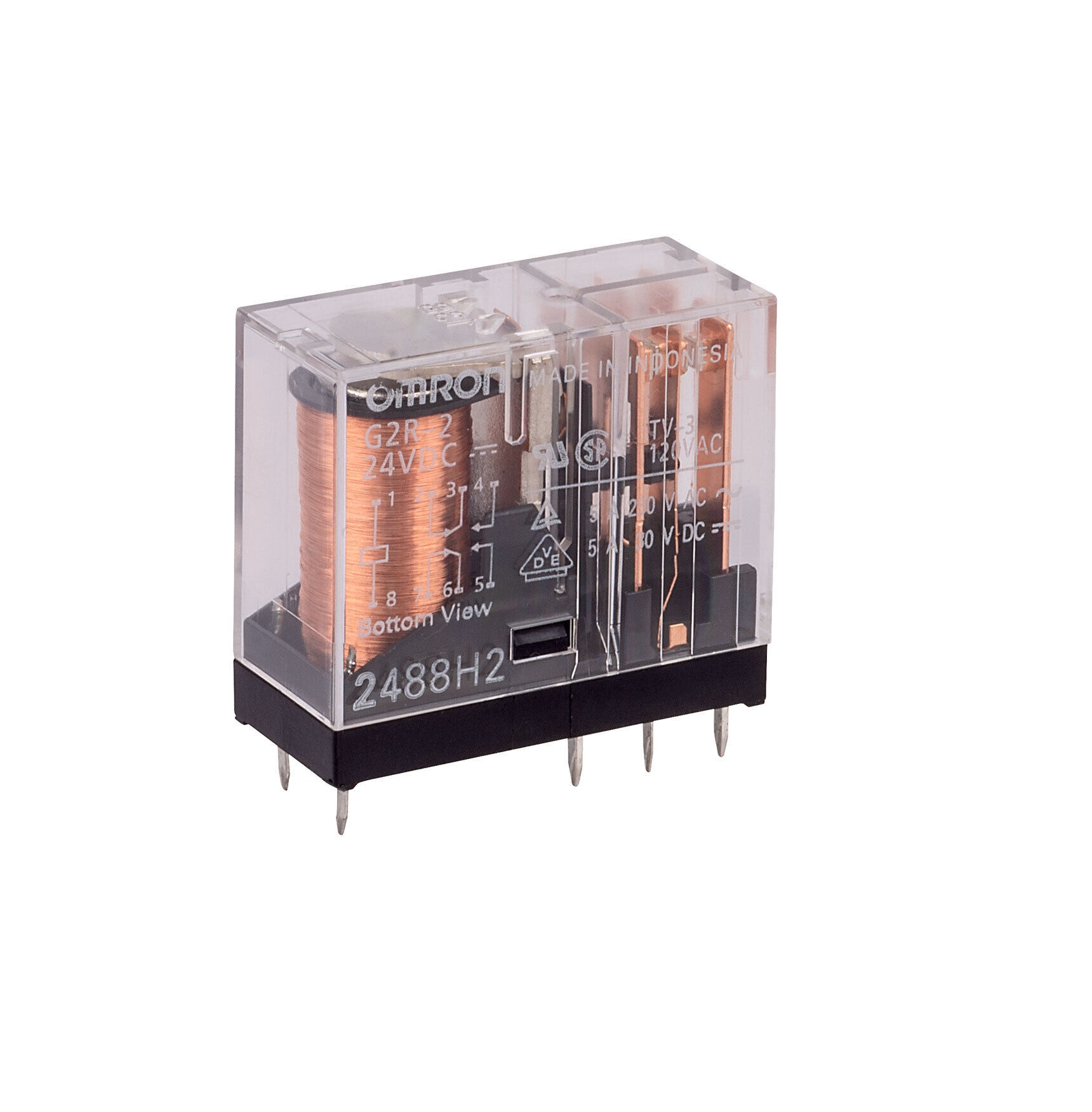

ريلاي طاقة أومرون 24 فولت 5 أمبير 8 أطراف موديل: G2R-2

Omron G2R-2 Power Relay – 24V DC Coil, 5A Contact, 8-Pin

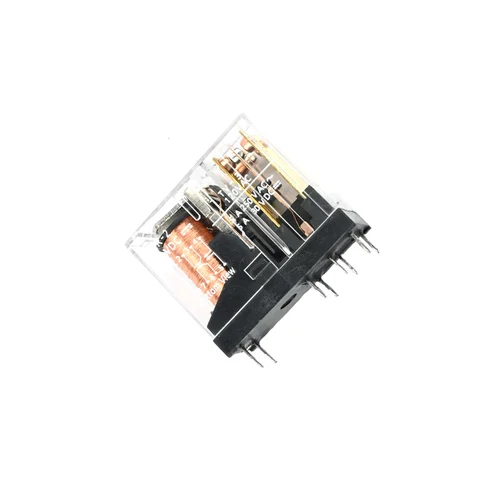

The Omron G2R-2 is a high-quality general-purpose power relay featuring a transparent housing, DPDT (Double Pole Double Throw) contact configuration, and robust switching capacity. With a 24V DC coil and 5A contact rating, it’s ideal for control panels, automation systems, HVAC equipment, and industrial electronics.

🔧 Key Features

•


  Model: G2R-2





•


  Coil Voltage: 24V DC





•


  Contact Rating: 5A at 250V AC / 30V DC





•


  Contact Type: DPDT (2 Form C)





•


  Pin Configuration: 8-pin plug-in (standard relay socket compatible)





•


  Transparent Case: For visual confirmation of contact operation





•


  LED Indicator(on some models): For coil status monitoring




📐 Technical Specifications

•


  Number of Poles: 2 (Double Pole)





•


  Switching Type: Double Throw (NO + NC)





•


  Maximum Switching Voltage: 250V AC / 30V DC





•


  Maximum Switching Current: 5A per contact





•


  Insulation Resistance: >100 MΩ at 500V DC





•


  Dielectric Strength: 2000V AC (coil to contact)





•


  Coil Power Consumption: Approx. 400 mW





•


  Operating Temperature: –40°C to +70°C





•


  Mounting Type: Socket mount or solderable pins for PCB use





•


  Dimensions: ~29 × 13 × 25.5 mm




🛠️ Applications

•


  Industrial control systems





•


  Programmable logic controllers (PLC)





•


  Electrical panels and automation equipment





•


  HVAC control circuits





•


  Home appliances and security systems




✅ Advantages

•


  Compact and reliable design suitable for tight spaces





•


  Clear casing allows easy inspection of relay status





•


  Universal socket compatibility simplifies installation





•


  Long electrical and mechanical life with Omron’s trusted quality
