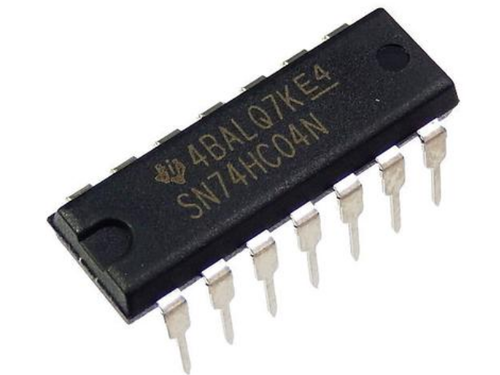

آي سي 7404 (بوابة NOT سداسية)

The SN74HC04N is a 1-input 14-pin Hex Inverter made of CU NIPDAU CU SN lead/ball finish. This device contains six independent inverters. It performs the Boolean function Y = A in positive logic. It features 20µA maximum ICC low power consumption, ±4mA output drive at 5V and 1µA maximum low input current. Outputs can drive up to 10 LSTTL loads. Logic Family / Base Number: 74HC04, Logic Type: Inverter, Output Current: 5.2mA, No. of Inputs: 1, Supply Voltage Min: 2V. Supply Voltage Max: 6V; No. of Pins: 14Pins; Logic IC Family: 74HC; Logic IC Base Number: 7404. Package Include 5 x 7404 IC
