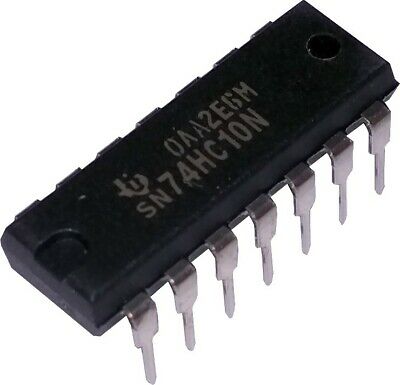

آي سي 7410 (بوابة NAND ثلاثية بثلاثة مداخل)

TRIPLE 3-INPUT POSITIVE-NAND GATES

Logic IC Type: NAND GATE
Sub Category: Gates
Family: TTL/H/L
Load Capacitance (CL): 15.0 pF
Max I(ol): 0.016 Amp
Number of Functions: 3
Number of Inputs: 3.0
Number of Terminals: 14
Operating Temperature-Min: 0.0 Cel
Operating Temperature-Max: 70.0 Cel
Package Body Material: PLASTIC/EPOXY
Power Supply Current-Max (ICC) 16.5 mA
Prop. Delay@Nom-Sup: 22.0 ns
Propagation Delay (tpd): 22.0 ns
Supply Voltage-Nom (Vsup): 5
Supply Voltage-Min (Vsup): 4.75 V
Supply Voltage-Max (Vsup): 5.25 V
Temperature Grade: COMMERCIAL
Technology: TTL
CLASS: TTL / CLEAR
