آي سي 74107 (فليب فلوب J-K مزدوج)

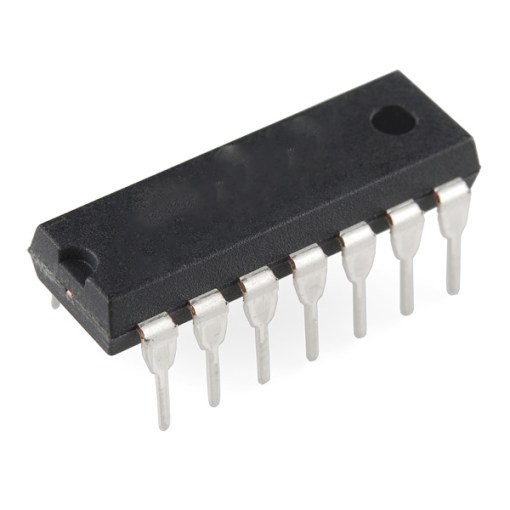

Dual J-K Flip-Flop with Reset 74HCT107 IC

Mfr Package Description: DIP-14
Logic IC Type: J-K FLIP-FLOP
Sub Category: FF/Latches
Family: HCT
fmax-Min: 19.0 MHz
Load Capacitance (CL): 50.0 pF
Max Frequency@Nom-Sup: 1.9E7 Hz
Max I(ol): 0.004 Amp
Number of Bits: 2
Number of Functions: 2
Number of Terminals: 14
Operating Temperature-Min: -55.0 Cel
Operating Temperature-Max: 125.0 Cel
Output Polarity: COMPLEMENTARY
Package Body Material: PLASTIC/EPOXY
Package Code: DIP
Propagation Delay (tpd): 65.0 ns
Supply Voltage-Nom (Vsup): 5
Supply Voltage-Min (Vsup): 4.5 V
Supply Voltage-Max (Vsup): 5.5 V
Technology: CMOS
Temperature Grade: MILITARY
Trigger Type: NEGATIVE EDGE
CLASS: CMOS / HCT
