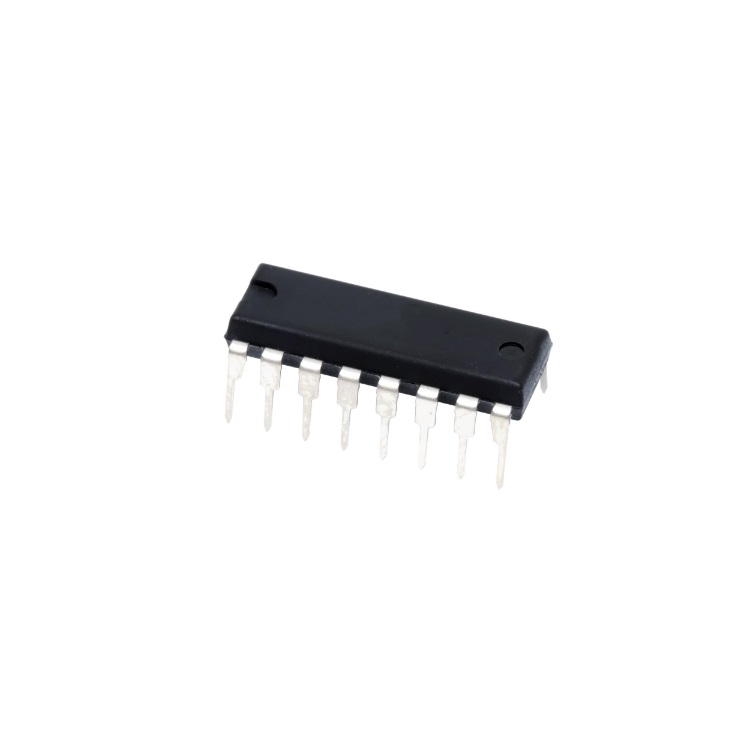

آي سي 74158 (ملتيبلكسر رباعي بمدخلين)

Mfr Package Description: PLASTIC, DIP-16
Status: Discontinued
Logic IC Type: MULTIPLEXER
Sub Category: Multiplexer/Demultiplexers
Family: LS
Load Capacitance (CL): 15.0 pF
Max I(ol): 0.008 Amp
Number of Functions: 4
Number of Inputs: 2.0
Number of Outputs: 1.0
Number of Terminals: 16
Operating Temperature-Min: 0.0 Cel
Operating Temperature-Max: 70.0 Cel
Output Polarity: INVERTED
Package Body Material: PLASTIC/EPOXY
Package Code: DIP
Power Supplies (V): 5
Power Supply Current-Max (ICC): 8.0 mA
Prop. Delay@Nom-Sup: 24.0 ns
Propagation Delay (tpd): 24.0 ns
Supply Voltage-Nom (Vsup): 5
Supply Voltage-Min (Vsup): 4.75 V
Supply Voltage-Max (Vsup): 5.25 V
Technology: TTL
Temperature Grade: COMMERCIAL
CLASS: TTL / LS
