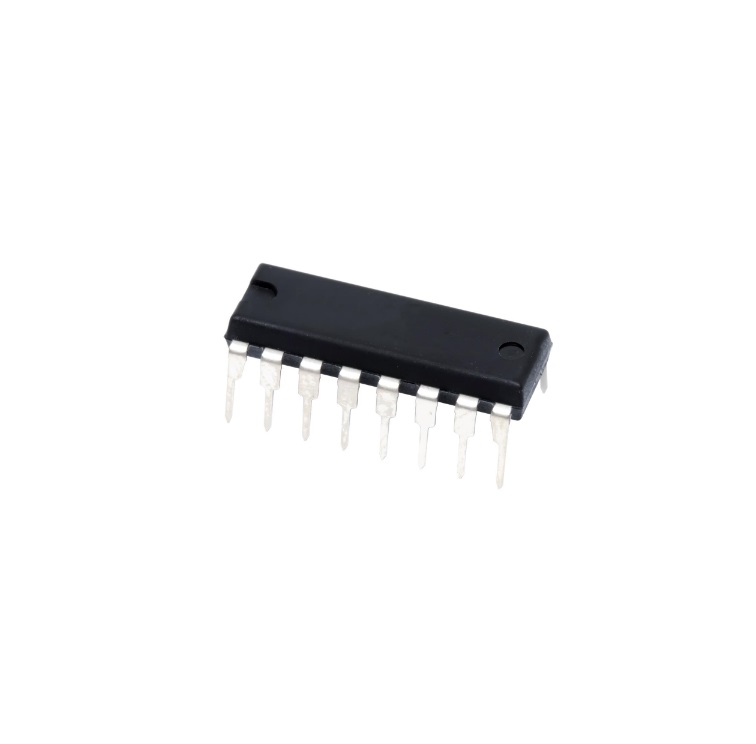

74256 IC Dual 4 Bit Addressable Latch

Mfr Package Description: PLASTIC, DIP-16
Status: Discontinued
Logic IC Type: D LATCH
Sub Category: FF/Latches
Family: LS
Load Capacitance (CL): 15.0 pF
Max I(ol): 0.008 Amp
Number of Bits: 2
Number of Functions: 1
Number of Terminals: 16
Operating Temperature-Min: 0.0 Cel
Operating Temperature-Max: 70.0 Cel
Output Polarity: TRUE
Package Body Material: PLASTIC/EPOXY
Package Code: DIP
Power Supply Current-Max (ICC): 30.0 mA
Prop. Delay@Nom-Sup: 30.0 ns
Propagation Delay (tpd): 24.0 ns
Supply Voltage-Nom (Vsup): 5
Supply Voltage-Min (Vsup): 4.75 V
Supply Voltage-Max (Vsup): 5.25 V
Technology: TTL
Temperature Grade: COMMERCIAL
Trigger Type: LOW LEVEL
Additional Feature: TWO 1:4 DMUX FOLLOWED BY LATCH; RESET ACTIVE ONLY WHEN LATCH ENABLE IS HIGH
CLASS: TTL / CLEAR
