شريط روزيتة حاجز أبيض 30 أمبير 380 فولت

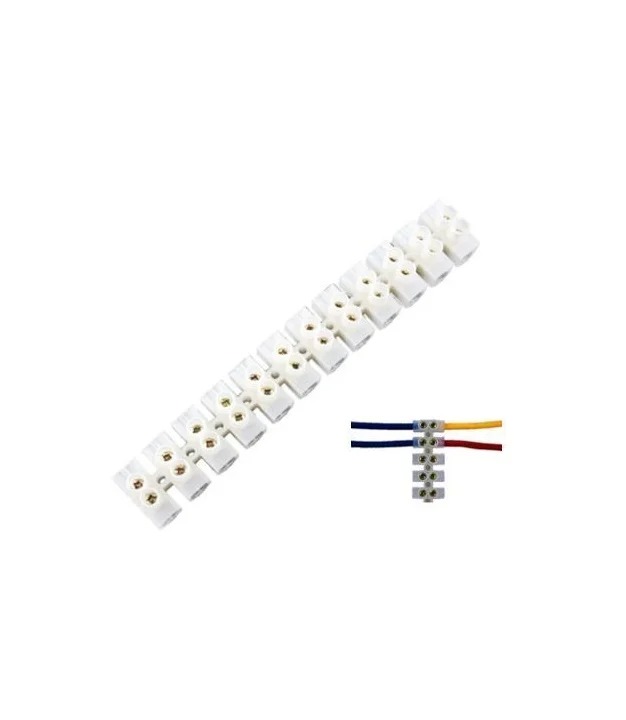

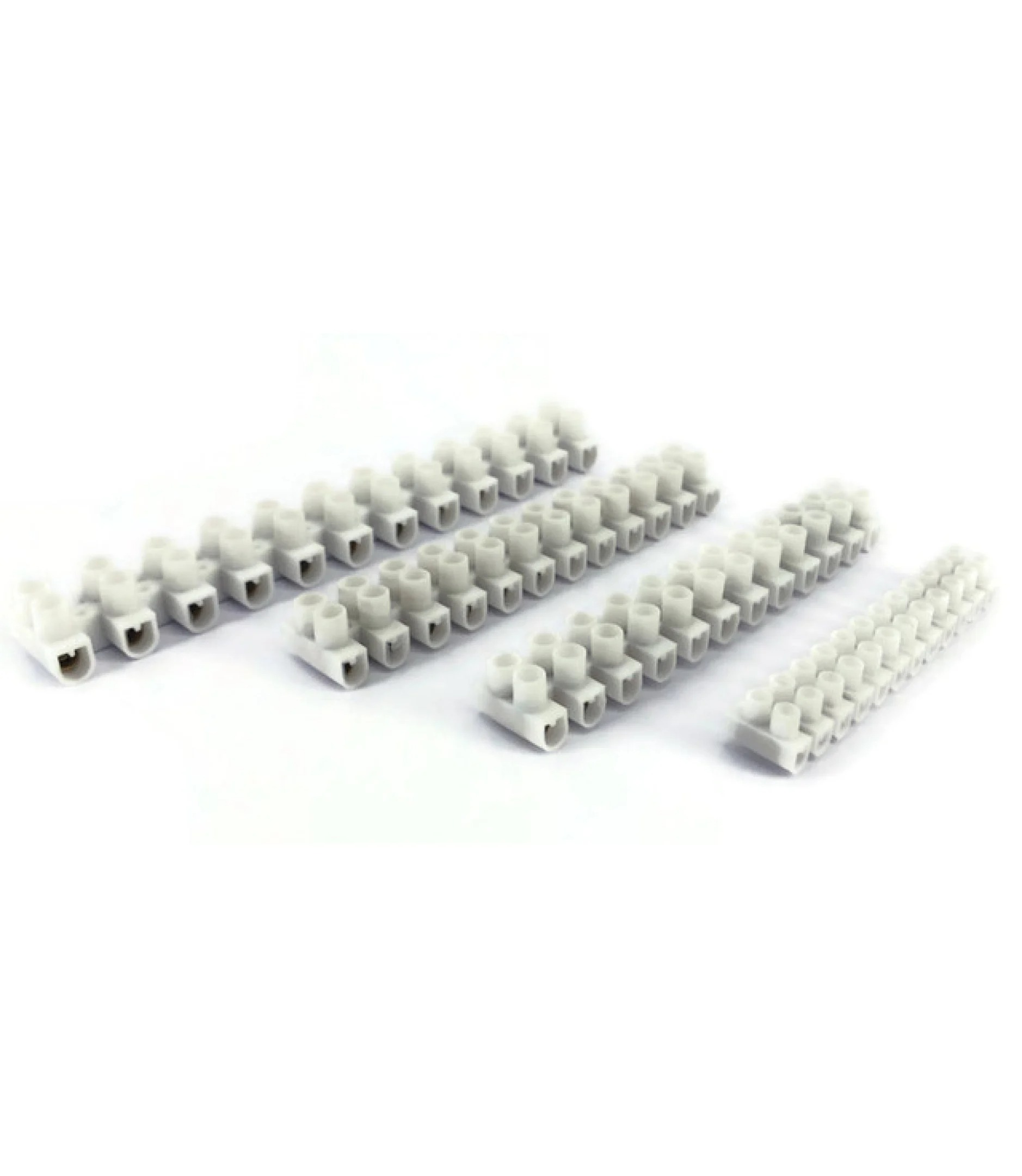

12-Position U-Type Barrier Terminal Block (380V / 30A)

The 12-Position U-Type Barrier Strip is a robust electrical connector designed for safely managing high-current and high-voltage wiring. Constructed with a flame-retardant PE insulating shell and high-conductivity brass internals, it allows for the secure connection of up to 12 pairs of wires. The "U-Type" open structure and wide terminal pitch make it exceptionally user-friendly for industrial panels and heavy-duty power distribution.

Key Features

•


  High Power Capacity: Rated for 380V and 30A, making it suitable for industrial machinery and commercial power systems.





•


  U-Type Open Layout: The open-base design allows for straightforward wire routing and easy access for screwdrivers during installation.





•


  Large Wire Capacity: Accommodates conductors up to 16mm², ensuring secure connections even for thick, heavy-duty cables.





•


  Short-Circuit Prevention: The high-barrier partition design effectively isolates each terminal, preventing accidental contact and electrical shorts.





•


  Durable Construction: Made from corrosion-resistant PE plastic and high-quality brass conductors for long-term reliability in harsh environments.





•


  Easy Maintenance: A 14mm pitch between terminals provides ample space for wire insertion, labeling, and maintenance.




Technical Specifications

Installation & Mounting

•


  Mounting Style: Through-hole panel mounting. The block can be secured to a surface or control panel using screws through the pre-drilled holes.





•


  Customization: The plastic strip is flexible and can be easily cut with a utility knife or wire cutters if you need a shorter block (e.g., a 3-position or 6-position strip).




Applications

•


  Industrial Control Panels: Organizing complex wiring in automated systems.





•


  Power Distribution Units (PDUs): Splitting main power lines into multiple branch circuits.





•


  HVAC Systems: Connecting heavy-duty fans, compressors, and heating elements.





•


  Renewable Energy: Wiring solar arrays and battery banks.





•


  Lighting Systems: Managing high-wattage commercial lighting circuits.
