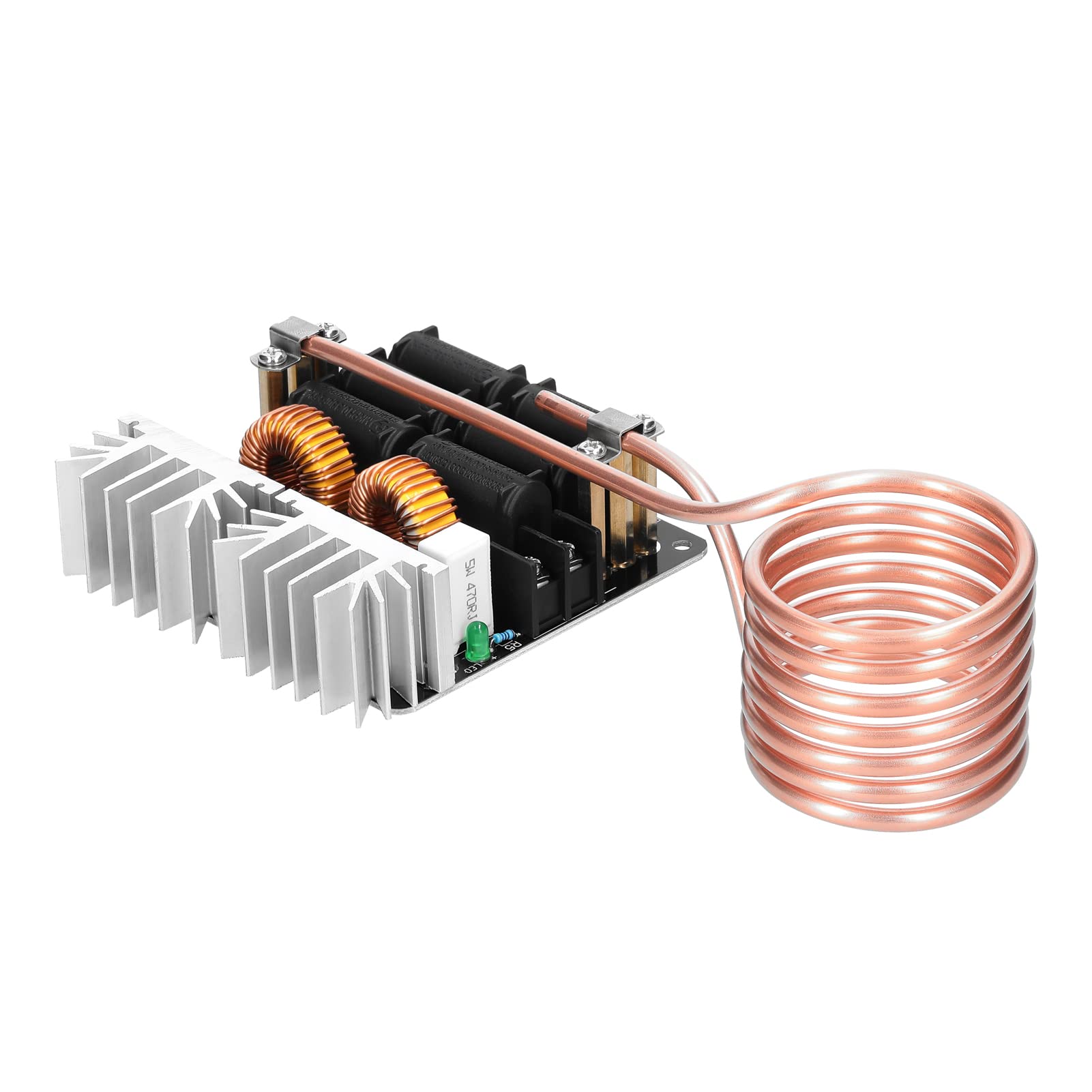

لوحة تسخين بالحث ZVS 12 إلى 48 فولت DC 1000 وات 20 أمبير مع ملف

Main parameters:

Voltage: DC voltage 12-48V
Size: 185X83MM
Current: 6-8A (standby)

Fan: DC voltage 24V
Protection: No
Max Power: 2000W

Recommended power supply: Voltage: DC voltage 48V Current: 50A Power: 2400W
(Can't more than 50A can't less then 10A)

Pay attention to the heating coil: The induction heating power supply must be at least 24V10A

Notice: Buyer need Welding thick copper wire On the Output Terminal and the Copper Tube

1:     buyer need self-provided power and water cooling device

2:    The use of switching power supply, Please note that due to high power are generally slow start function, which just opened machine output voltage is slowly rising, while it is turned on before the induction heating circuit if the voltage rises to 12V, because start insufficient voltage can not afford to vibration, resulting in two simultaneous conduction mos tube so burned components.

3. The volume of heated objects cannot be more than 1/10 of the heating coil internal volume (that is, the heating cylinder diameter more than 1/3 heating coil diameter), otherwise it may because of overload and burned circuit or the power supply
