إنكودر دوار ضوئي 360 نبضة/لفة DC من 5 إلى 24 فولت

360/600 Pulse Incremental Photoelectric Elevator Rotary Encoder DC5-24V AB Two-phase 360/600Ppr LPD3806-360/600BM-G5-24C

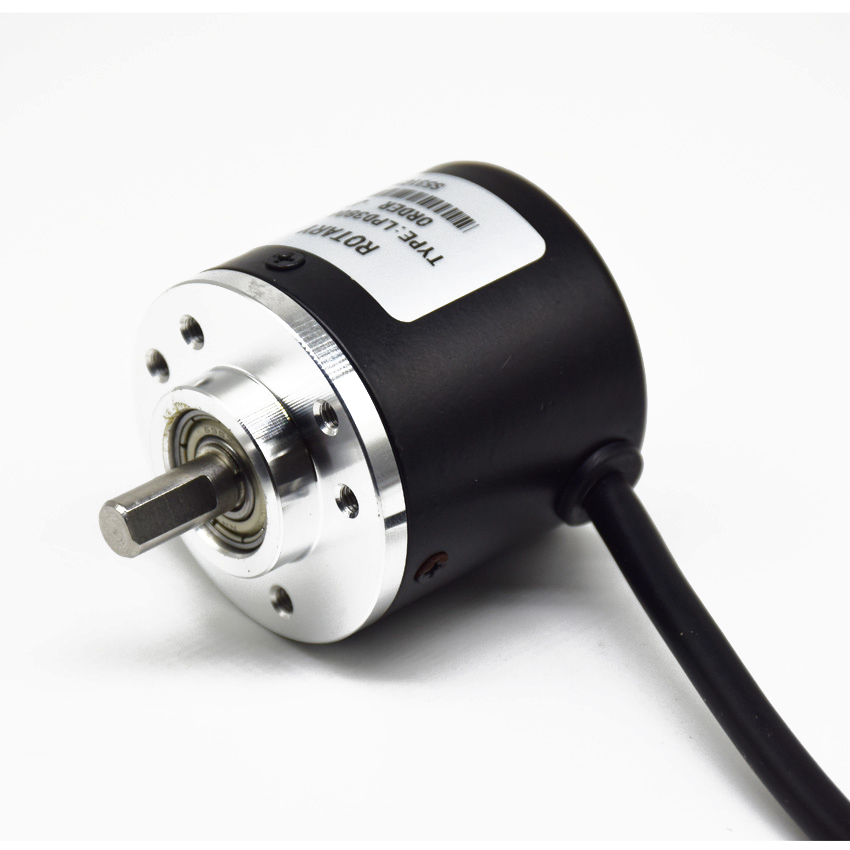

AB two phase incremental optical encoder

New design
360/600 pulses, two light modes: NPN open collector output or output voltage. with aluminum coupling standard 1.5 m cable.Model: 360/600,P / R incremental encoder, AB two-phase performance: 360/600 pulse / Rev.operating voltage: DC5-24V ,maximum mechanical speed 5000 rev / min, the electrical response frequency 20 K / sec, integrated speed 2000 rev / min.

Measure:

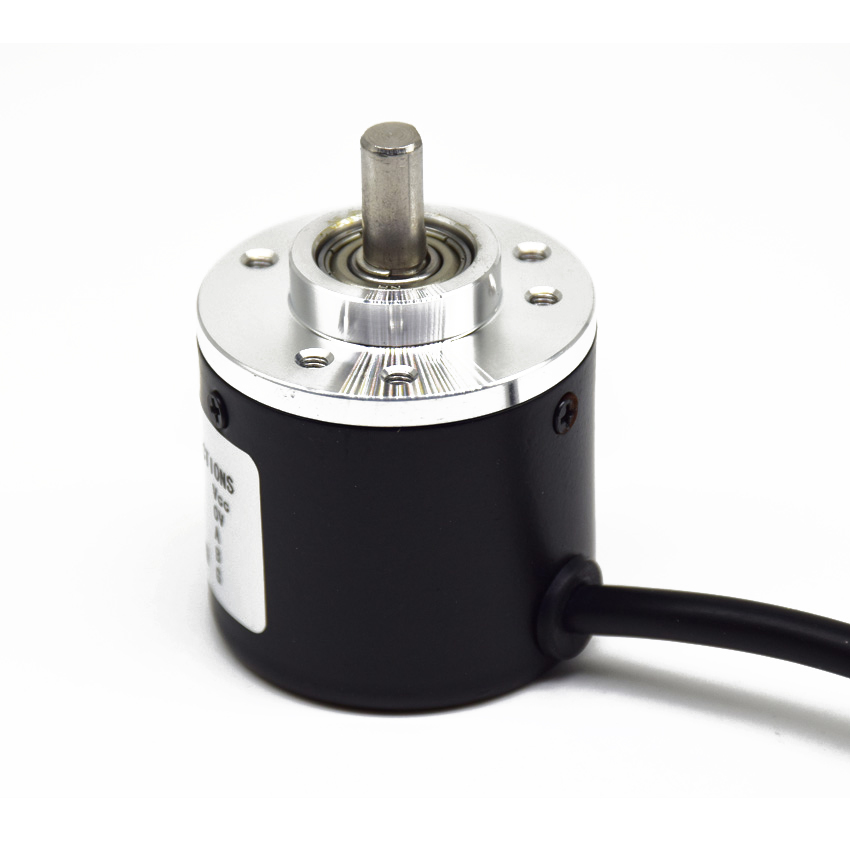

encoder main body: φ38mm;shaft φ6 × 13mm;axis platform: High 5mm, φ20mm;mounting holes: M3 screws, three mounting holes on the circle 30, and the other three mounting holes on the circle 28; side wire leads out.wiring: Green = Single phase, white = B phase, red = Vcc positive supply, black = V0 accept wiring as above with metal shielding low interference.

Output: AB rectangular two-phase quadrature pulse output circuit output NPN open collector output type, this output type can be used with internal pull-up resistor directly on the microcontroller or PLC, such as 51 MCU or Mitsubishi PLC (PLC input must switch to receive 0 V work ), note: if the encoder is not connected to the device can not directly oscilloscope oscilloscope (opencollector output when no pull-up resistor, there is no output voltage) to oscilloscope in the AB two-phase output plus two pull-up resistor;

Uses: for measuring the rotational speed of the object, angle, acceleration, and length measurements.

Usage: Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machine, steel fixed-length cutting controller, civil measured height, human scale, college game with robots.

Features: small size, light weight, easy installation, high cost of major advantages.
Note: A phase and B phase output lines must not be directly on VCC, otherwise the output will burn audion.
