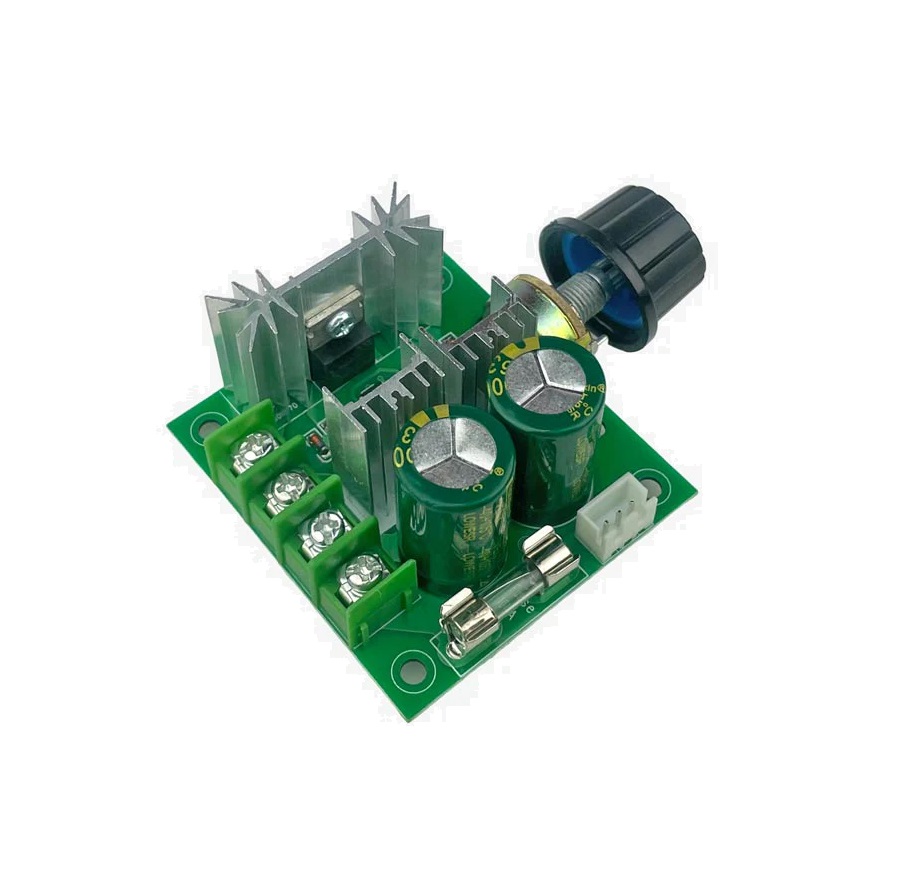

DC Motor PWM Speed Controller 10-60V 20A

Product Overview

The DC Motor PWM Speed Controller 10-60V 20A is a high-performance module designed for precise speed control of DC motors. Utilizing pulse-width modulation (PWM) technology, it efficiently adjusts the speed of your motor by varying the duty cycle. With an operating voltage range from 10V to 60V and a continuous current capacity of up to 20A, this controller is ideal for a wide range of applications including robotics, electric vehicles, industrial machinery, and DIY projects.

Key Features:

• Wide Voltage Range: Operates efficiently between 10V and 60V DC, accommodating various power sources.
• High Current Handling: Supports continuous current up to 20A, suitable for high-power motor applications.
• PWM Control: Provides smooth, adjustable speed control via a variable duty cycle.
• Built-In Protections: Equipped with overcurrent and thermal protection features to ensure safe operation and prolong the lifespan of both the controller and motor.
• Easy Integration: Compact design with standard connectors, making it simple to integrate into existing systems and projects.

Technical Specifications:

• Operating Voltage: 10-60V DC
• Continuous Current: Up to 20A
• PWM Frequency: Typically adjustable (commonly in the range of 1 kHz to 20 kHz; specifics depend on the model)
• Efficiency: High, with low power loss
• Control Interface: Adjustable potentiometer for manual speed control or external PWM signal input
• Dimensions: Compact design (exact dimensions vary by manufacturer)
• Cooling: May include heatsinks to manage thermal performance under high loads

Applications:

• Robotics and Automation: Precise speed control for robotic arms, mobile robots, and automated machinery.
• Electric Vehicles: Controls motor speed in scooters, e-bikes, and other small electric vehicles.
• Industrial Equipment: Ideal for conveyor belts, pumps, and fans where variable speed operation is needed.
• DIY Projects: Suitable for hobbyists and makers building custom motor-driven projects.

Why Choose This Speed Controller?

The DC Motor PWM Speed Controller 10-60V 20A provides a reliable and efficient solution for managing DC motor speeds. Its robust design, combined with essential safety features and flexible control options, makes it an excellent choice for both professional and hobbyist applications where precise motor control is crucial.
