لوحة تطوير ESP32-S2 ويموس S2 ميني

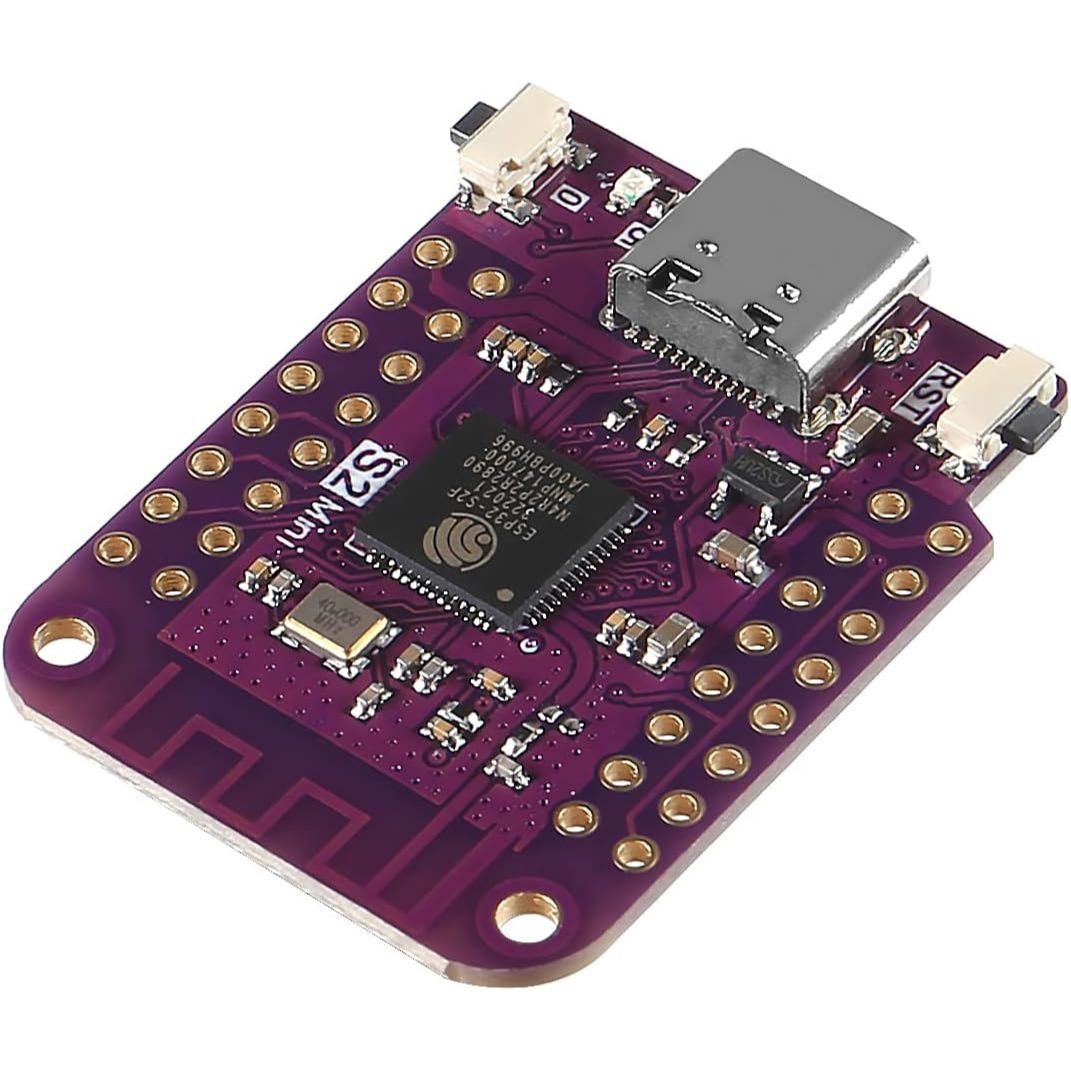

ESP32-S2 WEMOS S2 Mini Development Board

The S2 Mini is a powerful, compact development board designed for high-performance IoT projects. Built on the ESP32-S2 single-core processor, it serves as a significant upgrade to the classic WEMOS D1 Mini. It maintains a similar small footprint but nearly doubles the available GPIO pins and adds advanced features like native USB OTG and 2MB of PSRAM for memory-intensive applications.

Key Features

•


  Powerful Processing: Running at 240MHz, the ESP32-S2 provides ample speed for complex computations and real-time tasks.





•


  Enhanced Memory: Includes 4MB Flash for your code and 2MB PSRAM, which is essential for projects involving image processing, large data buffers, or complex web servers.





•


  Native USB Type-C: Features a modern Type-C connector for power and programming. The ESP32-S2 has an internal USB-to-Serial converter, simplifying the hardware design.





•


  High I/O Count: Despite its "Mini" size, it offers 27 GPIO pins, providing massive flexibility for sensors, displays, and actuators.





•


  Shield Compatibility: Designed to be compatible with most LOLIN D1 Mini shields, allowing you to use existing expansion boards for relay control, environmental sensing, and more.




Technical Specifications

Peripheral Support

The S2 Mini is packed with hardware interfaces to support almost any embedded application:

•


  Communication: UART, SPI, I2C, I2S.





•


  Analog: 20x ADC channels and 2x DAC (Analog Output) channels.





•


  Advanced: USB OTG (On-The-Go), LED PWM (up to 8 channels), and RMT (Remote Control peripheral).




Pin Out

Dimensions (in mm)

Software Compatibility

The board is highly versatile and supports multiple programming environments:

•


  MicroPython: (Default firmware pre-installed)





•


  Arduino IDE: Use the ESP32 board manager.





•


  CircuitPython: Great for rapid prototyping.





•


  ESP-IDF: For professional, low-level C/C++ development.




Applications

•


  IoT Hubs: Acting as a gateway for smart home sensors.





•


  Wearables: Its small size and light weight (2.4g) make it perfect for portable tech.





•


  Automation: Industrial monitoring and smart agriculture systems.





•


  Education: An excellent tool for learning modern 32-bit microcontroller programming.

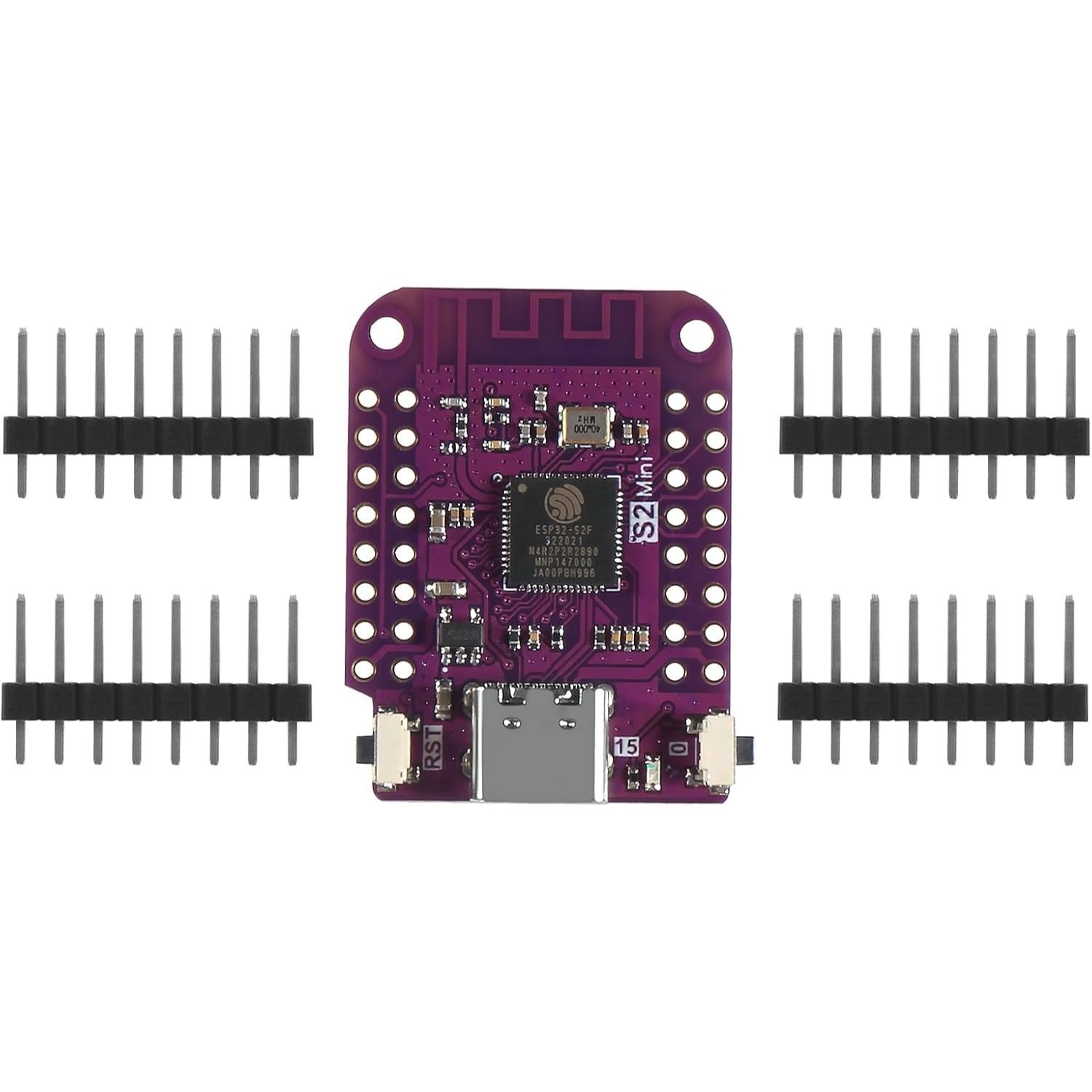

Package Contents

•


  1x ESP32-S2 WEMOS S2 Mini Board





•


  4x 8-pin Male Headers (un-soldered for mounting flexibility)
