أفوميتر ديجيتال فلوك 101

Name: أفوميتر ديجيتال فلوك 101
Brand: Fluke
SKU: 58413
Price: 6250.00 EGP
Availability: InStock

☆☆☆☆☆ 0.0 (مفيش تقييمات) رمز المنتج: 58413

6,250 ج.م

متاح للطلب

الكمية:

اسألنا - نرد عليك على واتساب

يوصلك خلال 72 ساعة

دفع آمن. نقبل: بطاقة بنكية محفظة إلكترونية الدفع عند الاستلام إنستا باي

يُشترى معاً عادةً

هذا المنتج

أفوميتر ديجيتال فلوك 101

6,250 ج.م

الإجمالي

10,510 ج.م

الوصف المواصفات التقييمات (0) الأسئلة الشائعة (0)

عن هذا المنتج

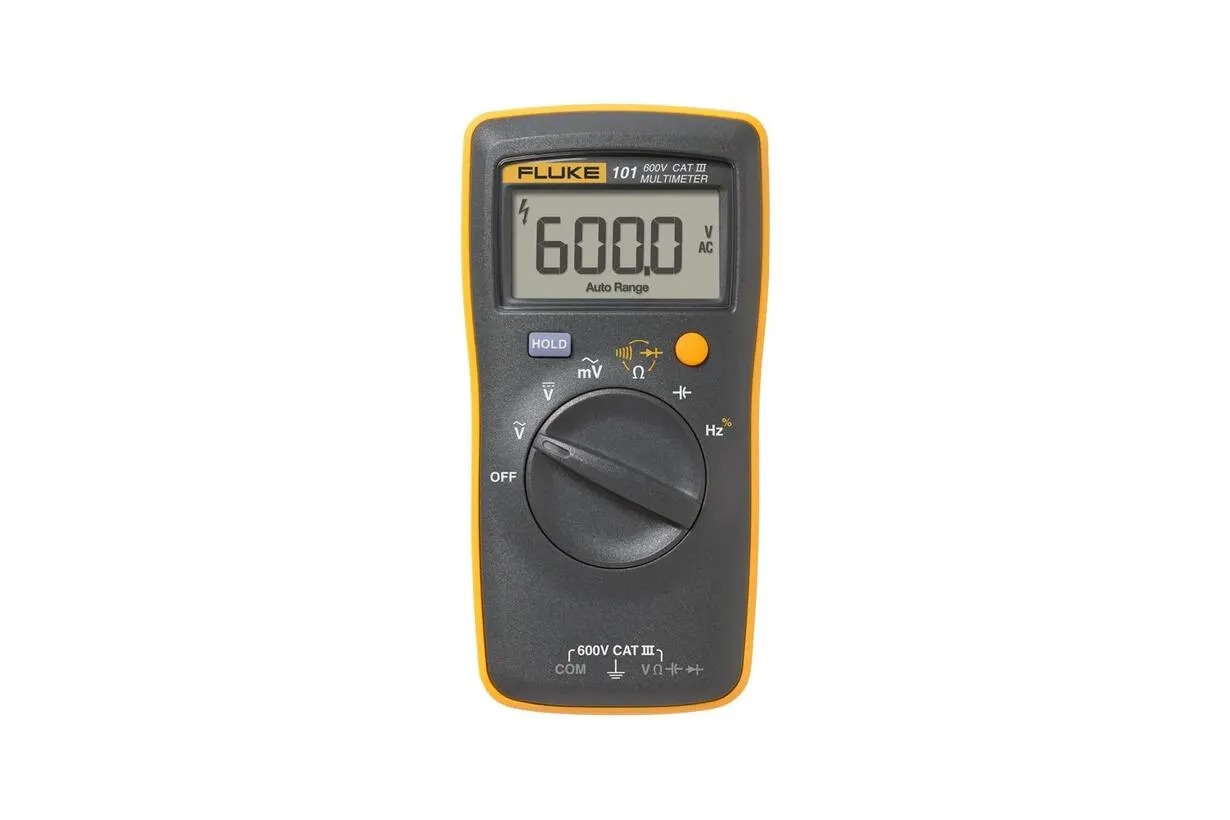

Product overview: Fluke 101 Digital Multimeter

Designed for basic electrical tests, the Fluke 101 digital multimeter offers reliable measurements for residential/commercial electricians and heating and air conditioning technicians. This small, lightweight multimeter fits comfortably in your hand but is rugged enough to withstand daily use for years to come. When it comes to professional-grade affordable multimeters, the Fluke 101 digital multimeter is your best choice.

Key features

Basic dc accuracy 0.5%

CAT III 600 V safety rated

Diode and continuity test with buzzer

Small lightweight design for one-handed use

Rugged, durable design

Automatic shutdown

Battery is easy to replace

Specifications: Fluke 101 Digital Multimeter

Electrical Specifications
V AC (40-500Hz)	Range	600.0 mV 6.000 V 60.00 V 600.0 V
Resolution	0.1 mV 0.001 V 0.01 V 0.1 V
Accuracy	3.0%±3 digit 1.0%±3 digit
V DC	Range	6.000 V 60.00 V 600.0 V
Resolution	0.001 V 0.01 V 0.1 V
Accuracy	0.5%±3 digit
Resistance Ohms	Range	400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ
Resolution	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ
Accuracy	0.5 %±3 digit 0.5 %±2 digit 0.5 %±2 digit 0.5 %±2 digit 0.5 %±2 digit 1.5%±3 digit
Capacitance	Range	50.00 nF 500.0 nF 5.000 μF 50.00 μF 500.0 μF 1000.0 μF
Resolution	0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF
Frequency (10 Hz – 100 kHz)	Range	50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz
Resolution	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz
Duty Cycle	Range	0.1 % to 99.9 %
Resolution	0.1 %
General Specifications
CAT Rating	CAT III 600 V
V AC Range	600.0 V
V DC Range	600.0 V
Ohms Range	40.00 MΩ
Auto Shutoff	Y
Continuity	Y
Capacitor	100.0 μF
Frequency	100.0 kHz
Hold	No
Duty Cycle	Yes
Size	130 mm x 65 mm x 27mm
Weight	160 g
Battery	Two AAA
Warranty	1 year
Environmental Specifications
Operating Temperature	0 °C to +40 °C
Storage Temperature	-30 °C to +60 °C
Operating Humidity	Non condensing (<10 °C) <=90% RH (at 10 °C to 30 °C) <=75% RH (at 30 °C to 40 °C) (Without Condensation)
Operating Humidity, 40 MΩ	80% RH 10 °C to 30 °C, 70% RH 30 °C to 40 °C
Operating Altitude	2,000 meters
Storage Altitude	12,000 meters
IP Rating	IP 40 per IEC 60529
Vibration Requirements	MIL-PRF-28800F, Class 2
Drop Test Requirements	-10°C and 1 meter to surface, per IEC-61010-1, and Fluke SOP 39.1 for portable Hand-held equipment Shipping container drop per Fluke SOP 39.
EMI, RFI, EMC	Must meet all applicable requirements in IEC/EN 61326-1
Absorption/Corrosion	Per Fluke SOP 39.1
Temperature Coefficients	Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 ºC
