أفوميتر (مالتي ميتر) وكلامب ميتر

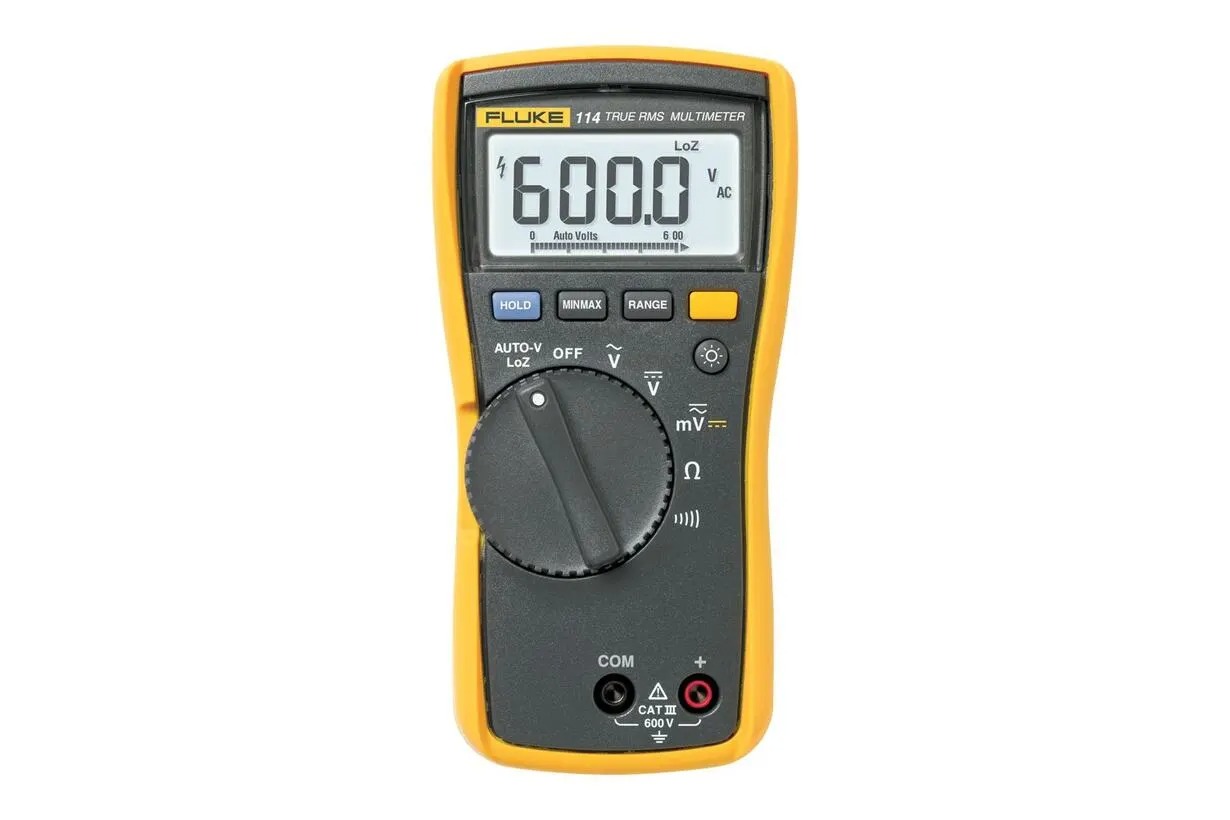

أفوميتر ديجيتال فلوك 114

Name: أفوميتر ديجيتال فلوك 114
Brand: Fluke
SKU: 58438
Price: 14940.00 EGP
Availability: InStock

☆☆☆☆☆ 0.0 (مفيش تقييمات) رمز المنتج: 58438

14,940 ج.م

متاح للطلب

الكمية:

اسألنا - نرد عليك على واتساب

يوصلك خلال 72 ساعة

دفع آمن. نقبل: بطاقة بنكية محفظة إلكترونية الدفع عند الاستلام إنستا باي

يُشترى معاً عادةً

هذا المنتج

أفوميتر ديجيتال فلوك 114

14,940 ج.م

الإجمالي

19,200 ج.م

الوصف المواصفات التقييمات (0) الأسئلة الشائعة (0)

عن هذا المنتج

Product overview: Fluke 114 Electrical Multimeter

Fluke 114 digital multimeter is the ideal choice for go/no-go testing

Designed for easy one-handed operation, the compact Fluke 114 True RMS digital multimeter is the perfect troubleshooting tool for go/no go testing. Its AutoVolt capability automatically switches to measure AC or DC voltage, whichever is present. And you can use the LoZ function to identify so-called ghost voltage and prevent false readings.

The Fluke 114 displays True-RMS voltage and current readings with 6000 count resolution, and tests frequency, continuity and resistance. A large white LED backlight aids work in poorly lit areas. And its easy-open battery access door makes battery changes easy.

A great choice for everyday troubleshooting, the Fluke 114 Electrical Multimeter is CAT III 600 V safety rated and is a compact True-RMS meter.

Fluke 114 multimeters are independently tested for safe use in CAT III 600V environments

Key Features

Ideal Digital Multimeter for “go/no-go” testing

Features AutoVolt automatic AC/DC voltage selection

Includes low input impedance to help prevent false readings due to ghost voltage

Presents a large white LED backlight for working in poorly lit areas

Measures resistance and continuity

Provides Min/Max/Average with elapsed time to record signal fluctuations

Other useful features:

Features a compact ergonomic design for one-handed operation

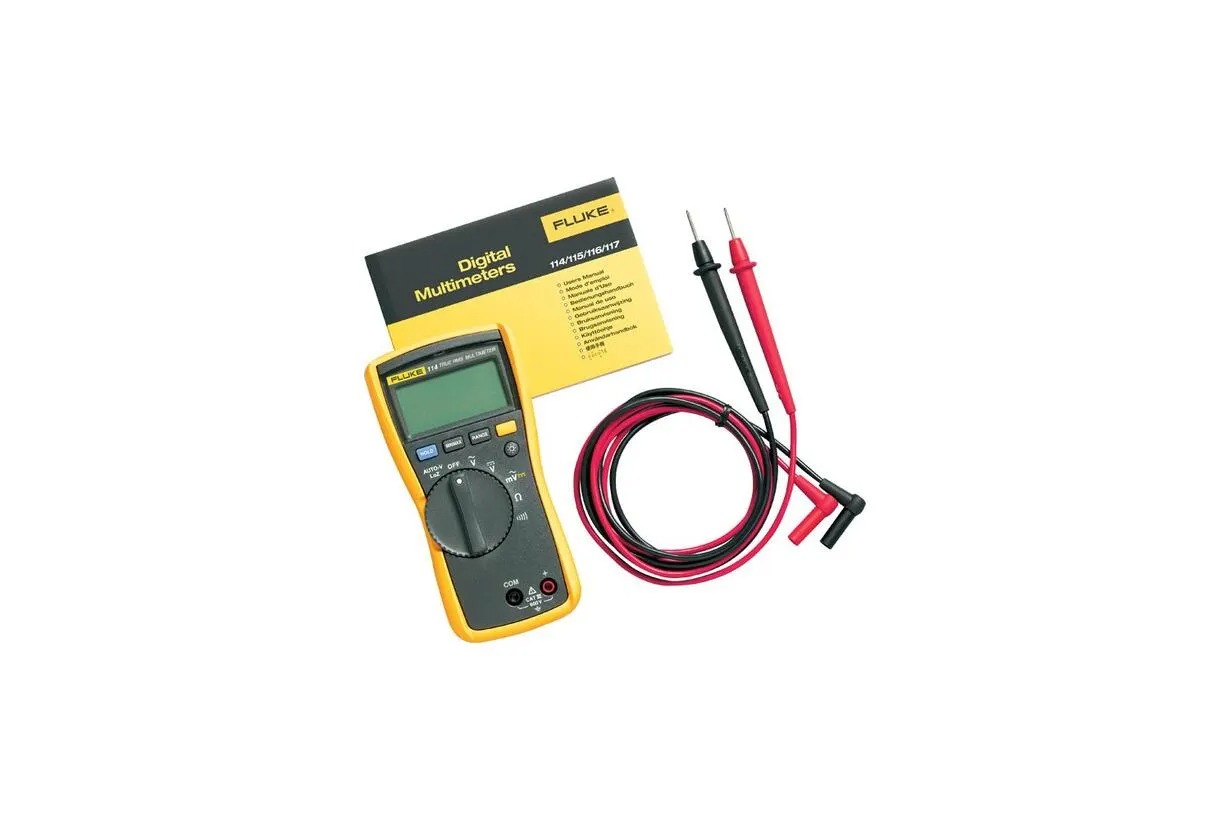

Comes with an holster with probe holders for easy storage

Features manual and automatic ranging

Safety rates CAT III 600 V

Fits into optional ToolPak™ magnetic hanger for hands-free operation

Specifications: Fluke 114 Electrical Multimeter

Specifications
Maximum voltage between any terminal and earth ground	600 V
Safety	IEC 61010-1: Pollution Degree 2 IEC 61010-2-033: CAT III 600V
Display	Digital: 6,000 counts, updates 4 per second
Bar graph	33 segments, updates 32 per second
Operating temperature	-10°C to + 50°C
Storage temperature	-40°C to + 60°C
Battery type	9 volt Alkaline, IEC 6LR61
Battery life	400 hours typical, without backlight
Accuracy specifications
DC millivolts	Range/resolution	600.0 mV / 0.1 mV
Accuracy	± ( + ): 0.5% + 2
DC volts	Range/resolution	6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 V
Accuracy	± ( + ): 0.5% + 2
Auto volts	Range/resolution	600.0 V / 0.1 V
Accuracy	2.0% + 3 (DC, 45 Hz to 500 Hz) 4.0% + 3 (500 Hz to 1 kHz)
AC millivolts1 True RMS	Range/resolution	600.0 mV / 0.1 mV
Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
AC volts1 True RMS	Range/resolution	6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 V
Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
Continuity	Range/resolution	600 Ω / 1 Ω
Accuracy	Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer.
Ohms	Range/resolution	600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ
Accuracy	0.9% + 1
Range/resolution	40.00 MΩ / 0.01 MΩ
Accuracy	5% + 2
1. All ac voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V. 2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. 2. Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage. Frequency is dc coupled, 45 Hz to 5 kHz for ac current. 2. Temperature Range/Resolution: -40°F to 752°F / 0.2°F.
Mechanical & General Specifications
Size	167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
Weight	550 g

Download the product manual

Download the data sheet
