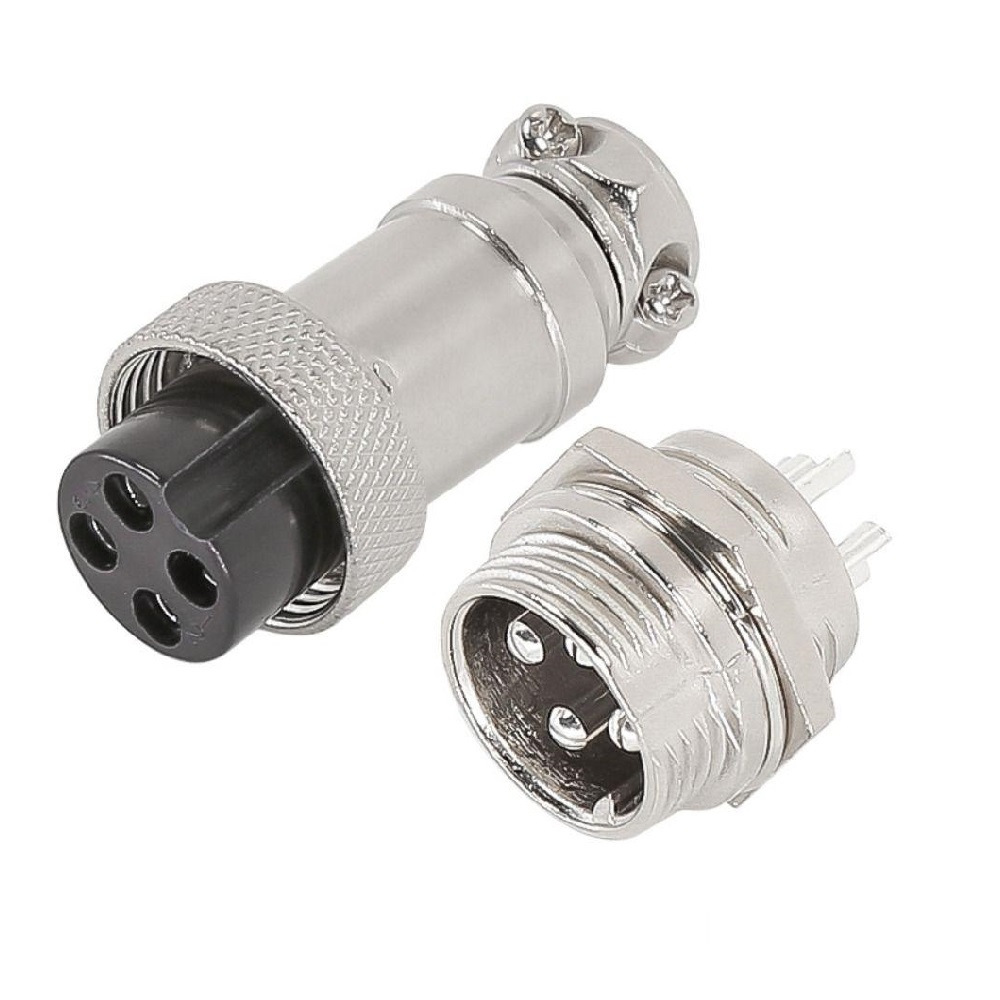

GX16 Connector 4 Pin Male & Female

Overview of GX16 Connector 4 Pin Male & Female

The GX16 Connector is a reliable and versatile 4-pin aviation connector designed for secure electrical connections in various applications, including industrial and aviation environments. This connector features both male and female components, allowing for easy pairing and dependable connectivity.

Key Specifications

• Configuration: The GX16-4 connector consists of a male and female pair, facilitating a secure connection between four wires.
• Size: The connector has a diameter of 16mm, making it compact yet robust for various applications.
• Rated Voltage and Current: It typically supports a rated voltage of 250V and a current capacity of 5A to 7A, depending on the specific model and application 1.
• Insulation Resistance: The connectors often feature high insulation resistance, typically around 1500 MΩ or more, ensuring safety and reliability in electrical connections.

Features

• Metal Construction: The GX16 connectors are made from high-quality zinc alloy and copper alloy, providing durability and resistance to environmental factors.
• Threaded Coupling: The threaded design ensures secure connections, preventing accidental disconnections during operation.
• Easy Installation: The connectors are designed for straightforward installation, with options for panel mounting or cable mounting, enhancing versatility in various setups.

Applications

• Industrial Equipment: Commonly used in machinery and equipment where secure electrical connections are critical.
• Aviation: Ideal for aviation applications due to their robust design and reliability under various conditions.
• DIY Projects: Suitable for hobbyists and DIY enthusiasts looking to create custom electrical connections in their projects.

Conclusion

The GX16 Connector 4 Pin Male & Female is an excellent choice for anyone needing a reliable and efficient solution for electrical connections. With its durable construction, ease of use, and versatility, it serves well in both professional and DIY applications, ensuring secure and efficient connectivity in a variety of environments.
