موتور دي سي جيرد مع إنكودر JGY-370 12 فولت 150 دورة/دقيقة 3 كجم.سم

JGY-370 DC Geared Motor with Encoder (12V / 150 RPM / 3 kg.cm)

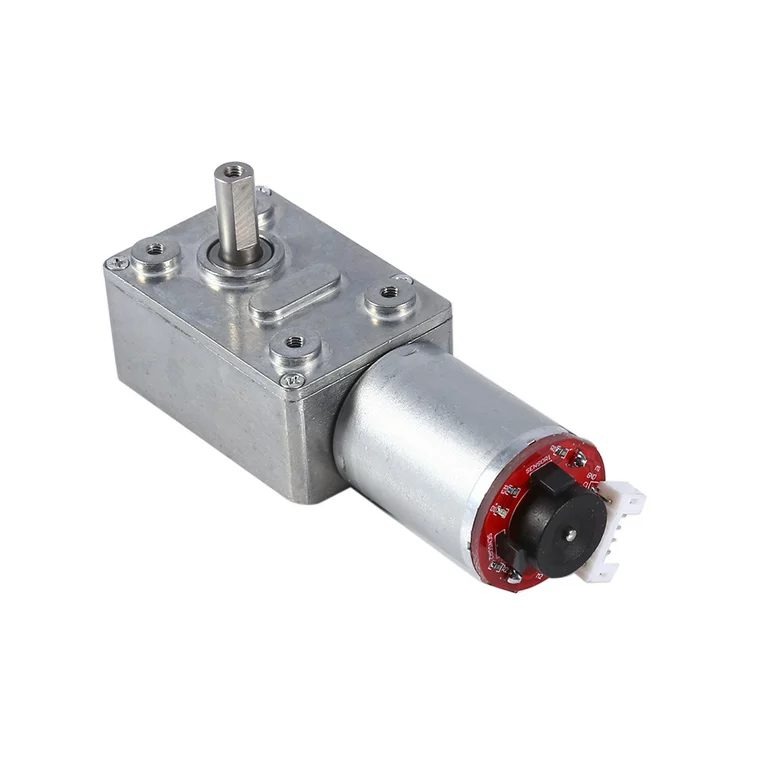

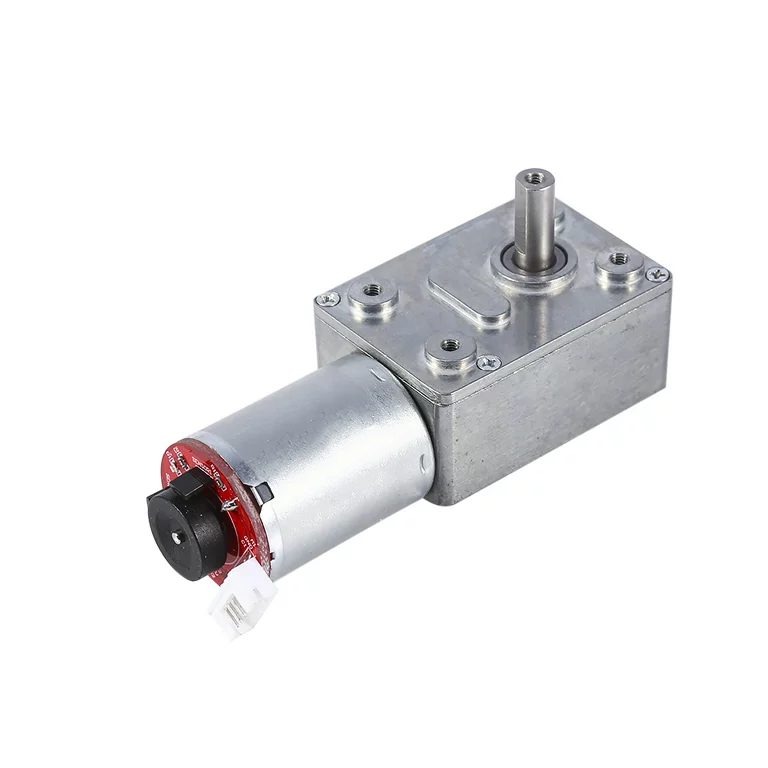

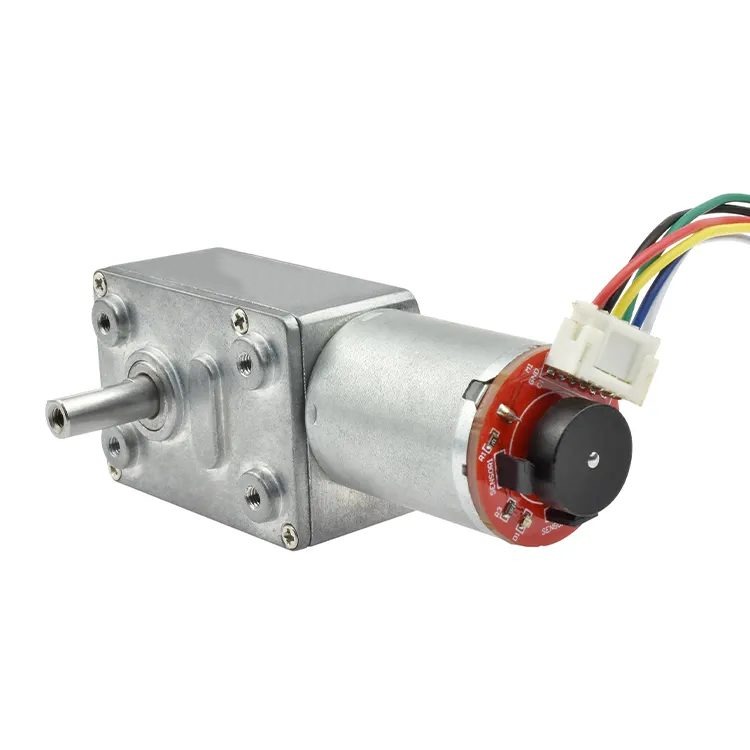

The JGY-370 is a specialized high-torque worm gear motor featuring a dual-channel Hall effect encoder. Its defining characteristic is the self-locking worm gear mechanism, which ensures the output shaft remains locked in place when power is removed—preventing back-driving under load. With an integrated encoder for real-time speed and position feedback, this motor is a premier choice for high-precision robotics and automated lifting systems.

Key Features

•


  Self-Locking Worm Gear: The internal gear geometry ensures the motor cannot be forced to turn by external loads when stationary, providing essential safety for vertical movements.





•


  Precision Closed-Loop Control: The integrated encoder provides A and B phase signals, allowing microcontrollers to calculate speed, direction, and exact shaft position.





•


  High Torque in Compact Size: Delivers a consistent 3 kg.cm of rated torque, making it powerful enough for robotic grippers and small actuators.





•

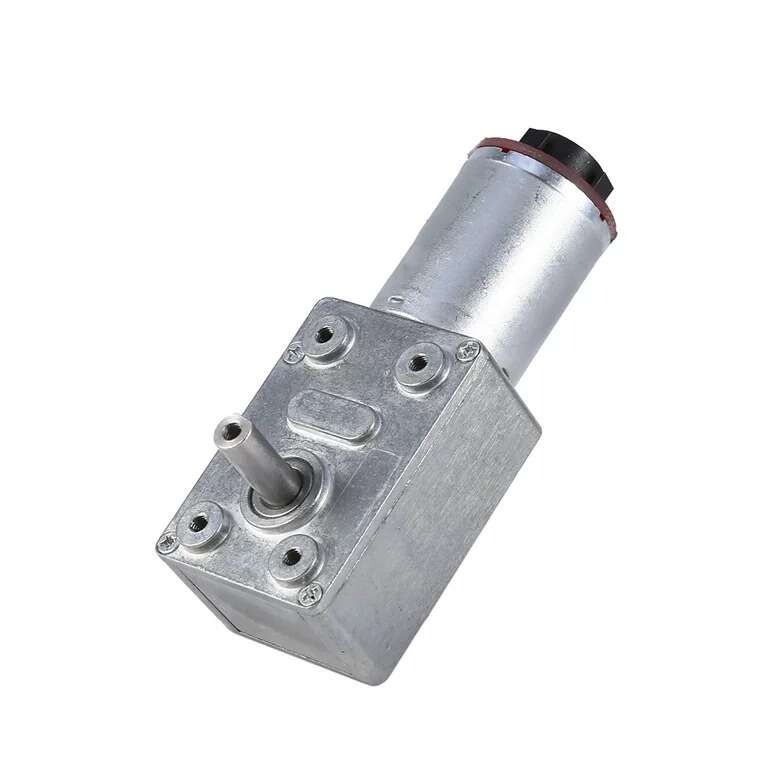

  Right-Angle Output: The 90-degree shaft orientation allows for low-profile installations where space for a straight-line motor is unavailable.





•


  Durable Metal Housing: Built to withstand industrial-level stress with a robust all-metal gearbox.




Technical Specifications

Dimensions

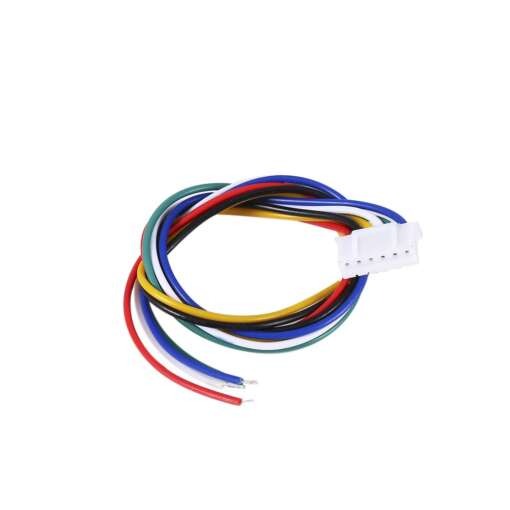

Encoder Pinout Guide

Applications

•


  Precision Robotics: Closed-loop drive systems, robotic arm joints, and mobile robots requiring precise odometry.





•


  Vertical Mechanisms: Hoists, elevators, and grippers that must hold their position when power is cut.





•


  Smart Home: Motorized window blinds, smart locks, and automatic curtain systems.





•


  Industrial Automation: Small-scale conveyor belts, sorting gates, and valve control.
