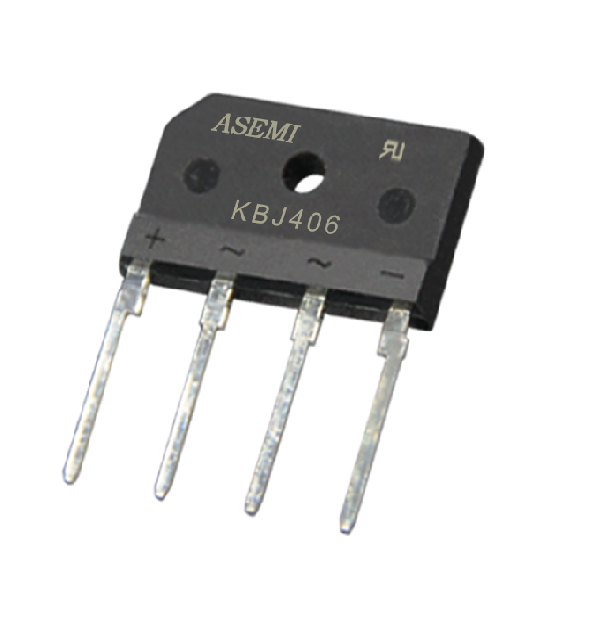

KBJ406 Bridge Rectifier 600V – 4A

Product Overview

The KBJ406 Bridge Rectifier is a high-efficiency, high-voltage rectifier designed for AC to DC conversion in power supplies and electronic circuits. With a 600V voltage rating and 4A current capacity, it is ideal for applications requiring reliable and stable DC power output. The compact KBJ package allows for efficient heat dissipation and easy PCB mounting, making it suitable for power adapters, battery chargers, and industrial power supplies.

Key Features:

• High Voltage Handling – Supports up to 600V for a wide range of applications.
• 4A Current Capacity – Suitable for medium-power rectification.
• Low Forward Voltage Drop – Reduces power loss and improves efficiency.
• Surge Overload Protection – Withstands high inrush currents.
• Compact KBJ Package – Ensures efficient heat dissipation and easy installation.
• Reliable Performance – Provides stable DC output with minimal ripple.

Technical Specifications:

• Maximum Reverse Voltage: 600V
• Maximum Forward Current: 4A
• Peak Surge Current: 150A
• Forward Voltage Drop: ~1.1V per diode
• Operating Temperature: -55°C to +150°C

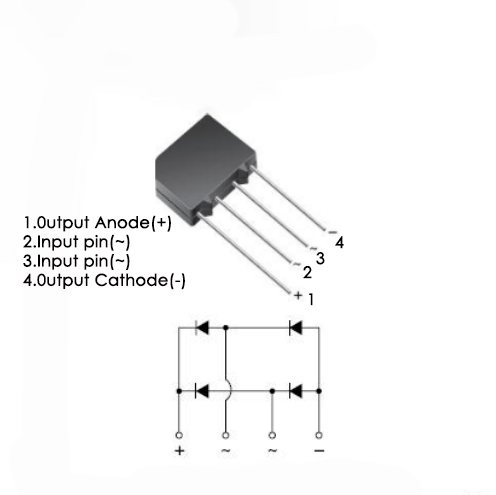

• Package Type: KBJ-4
• Mounting Type: Through-hole / PCB mount

Applications:

• AC to DC Conversion – Used in power supplies, adapters, and chargers.
• Industrial Power Supplies – Ensures stable DC output for industrial equipment.
• Battery Charging Circuits – Efficiently rectifies AC for battery chargers.
• LED Drivers & Lighting Systems – Provides reliable DC power for LED applications.
• Household Appliances & Audio Systems – Used in TVs, amplifiers, and electronic devices.

Why Choose KBJ406 Bridge Rectifier?

The KBJ406 Bridge Rectifier offers high voltage and current capacity, low power loss, and compact design, making it an excellent choice for efficient AC to DC conversion in various power supply and electronic applications.
