بطارية 18650 3.7 فولت 2600 مللي أمبير موديل: LGEBM26

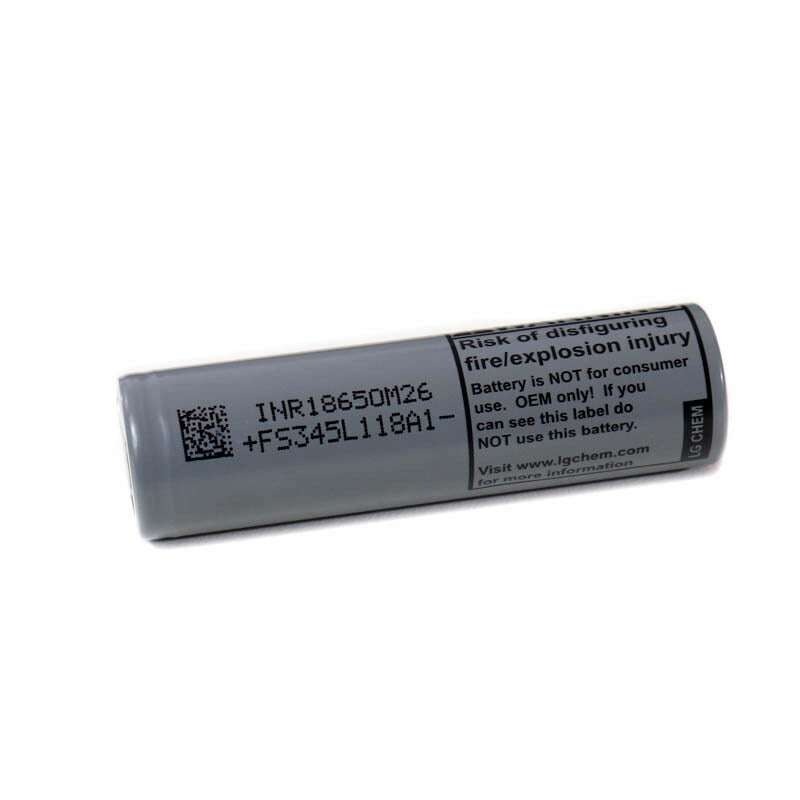

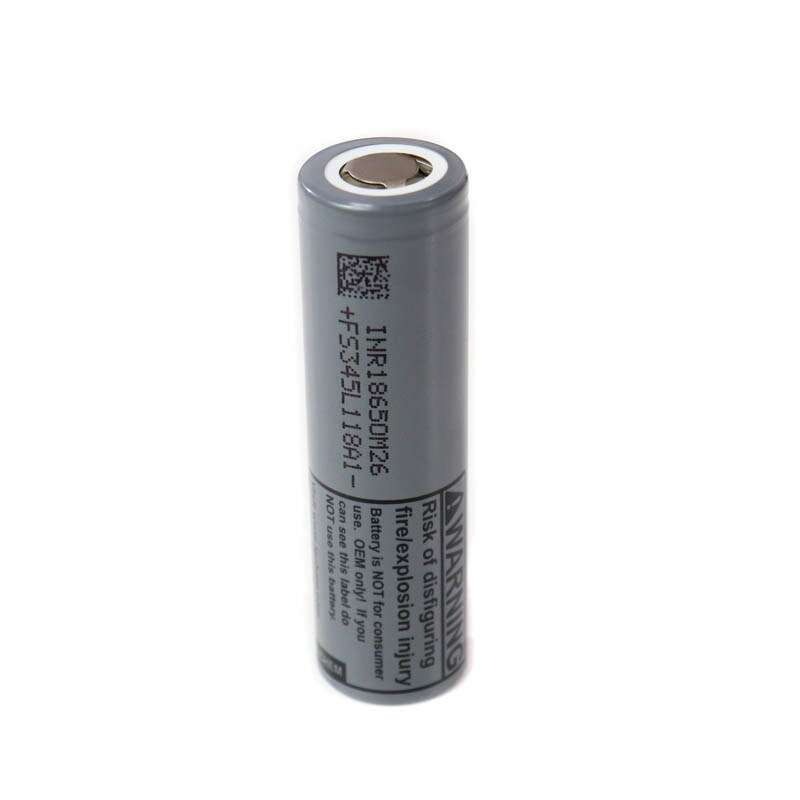

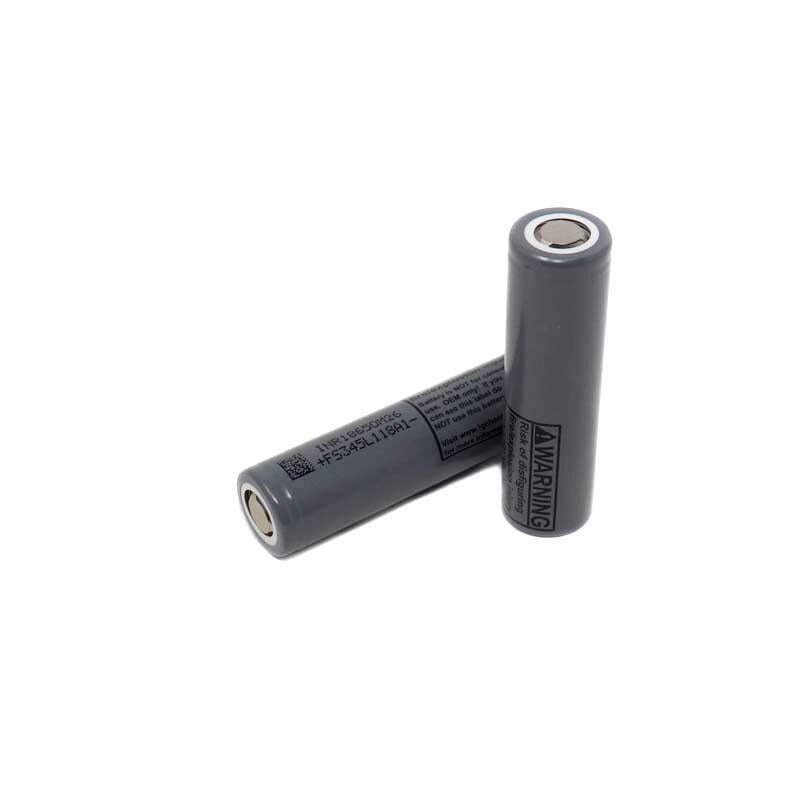

LG M26 18650 Li-ion Battery (3.7V / 2600mAh)

The LG M26 (INR18650-M26) is a high-quality, industrial-grade rechargeable lithium-ion cell designed for a balanced mix of energy density and discharge capability. With a 2600mAh capacity and a continuous discharge rating of 10A, it is a versatile "workhorse" cell. It is widely used in everything from high-output flashlights to custom battery packs for electric mobility and portable power tools.

Key Features

•


  Reliable 10A Discharge: Capable of handling up to 10A continuous current, making it snappy under load for power tools and small motors.





•


  Flat-Top Design: Optimized for spot-welding with nickel strips, making it easy to build into series or parallel battery packs.





•


  Stable Chemistry: Uses INR (Nickel-rich) chemistry for a smooth discharge curve and safe operation when managed correctly.





•


  High Cycle Life: Rated for up to 500 cycles, offering a long-term cost-effective power solution.





•


  Wide Temperature Window: Reliable discharge performance from -20°C to 60°C, suitable for outdoor industrial use.




Technical Specifications

Applications

•


  E-Mobility: Building sub-packs for electric scooters and e-bikes.





•


  Robotics: High-capacity power source.





•


  Power Tools: Rebuilding packs for cordless drills, saws, and grinders (BMS required).





•


  IoT & Infrastructure: UPS buffers, IoT gateways, and portable test equipment.





•


  Lighting: High-output LED panels and professional-grade flashlights.




Package Contents

•


  1x LG M26 18650 Li-ion Battery (Single Cell)




⚠️ Safety & Handling

•


  BMS Required: Always use a Battery Management System (BMS) for over-voltage (OVP), under-voltage (UVP), and over-current (OCP) protection.





•


  No Direct Soldering: Do not solder directly to the battery terminals; use a spot-welder with nickel tabs to prevent internal thermal damage.





•


  Polarity: Ensure the + and – terminals are correctly oriented; reversed insertion can cause fire or explosion.





•


  Storage: Store in a cool, dry place at approximately 30%–50% charge if not in use for long periods.
