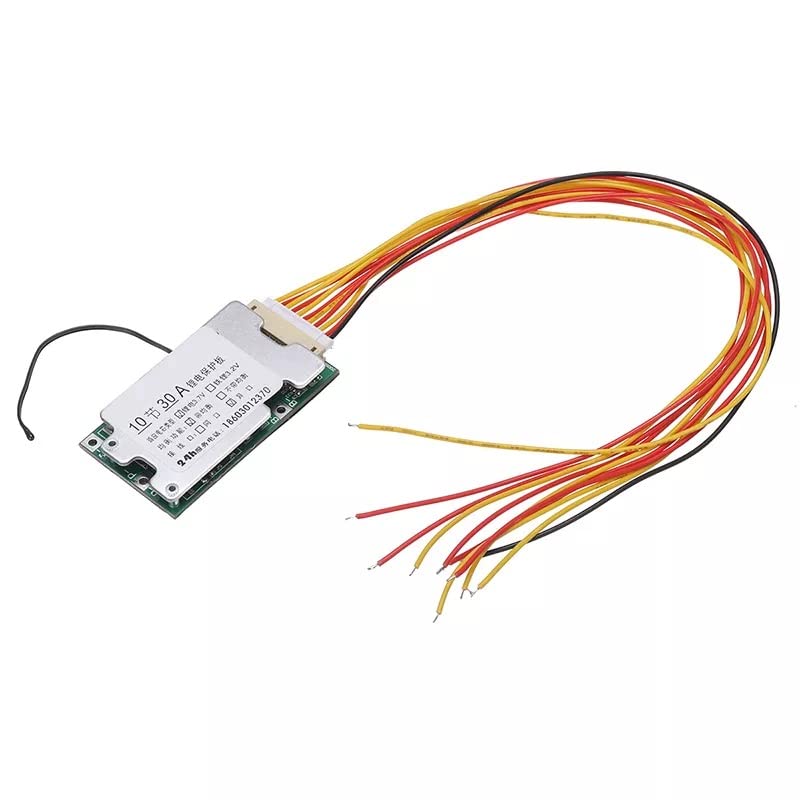

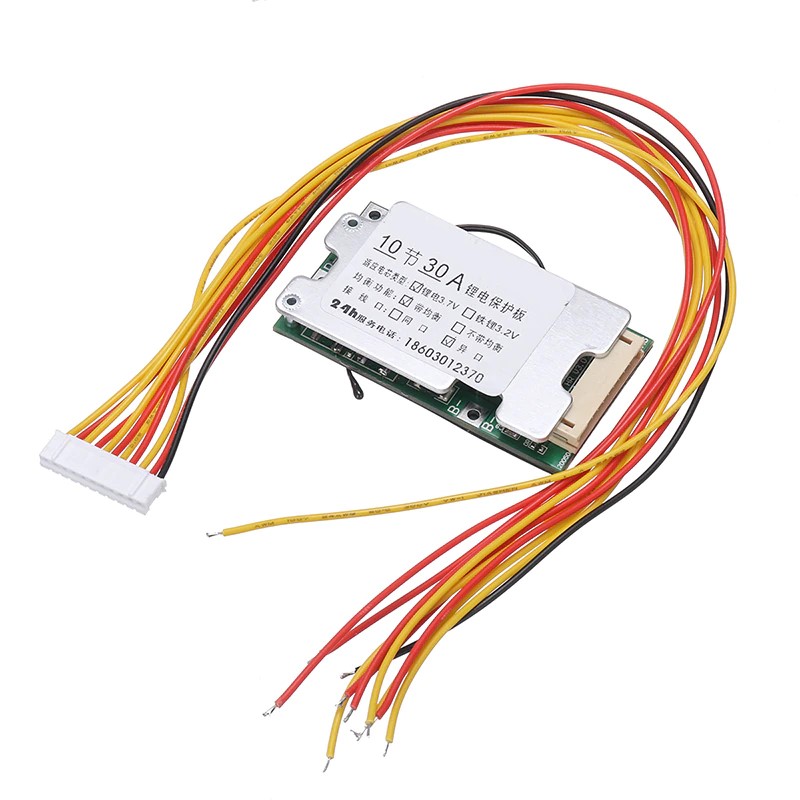

موديول حماية وشحن بطارية BMS 10S (36 فولت 30 أمبير)

10S Lithium Battery Charger Protection Module (BMS) – 36V 30A

The 10S BMS (Battery Management System) is designed for 10-cell lithium-ion or lithium-polymer battery packs connected in series (10S = 36V nominal, 42V when fully charged). With a continuous discharge rating of 30A, it is well-suited for high-power applications like electric bikes, scooters, solar storage systems, and DIY energy packs.

🔧 Key Features

•


  Battery Configuration: 10S (10 cells in series)





•


  Nominal Voltage: 36V





•


  Max Charging Voltage: 42.0V (4.2V × 10 cells)





•


  Continuous Discharge Current: 30A





•


  Charging Current: Typically 10A–15A





•


  Protection Functions:






  •


    Overcharge protection





  •


    Over-discharge protection





  •


    Overcurrent protection





  •


    Short-circuit protection





  •


    Temperature protection (if sensor included)





  •


    Optional cell balancing









•


  High-efficiency MOSFETs for stable operation





•


  Compact and durable PCB with heat-dissipating features




📐 Technical Specifications

•


  Overcharge Detection Voltage: ~4.25V ± 0.05V per cell





•


  Over-discharge Detection Voltage: ~2.8V ± 0.1V per cell





•


  Overcurrent Protection: ~60A (instantaneous limit, auto cut-off)





•


  Short-circuit Protection: Yes





•


  Self-recovery: Auto-reset or manual reconnect depending on model





•


  Working Temp: –40°C to +85°C





•


  Typical Size: ~80 × 50 × 5 mm





•


  Terminals: B+, B–, B1 to B10 (battery taps), P+, P–




🛠️ Wiring Guide for 10S Battery Pack

🔋 Battery Tap Connections:

⚡ Load/Charging Terminals:

•


  P+ → Positive to load/charger





•


  P– → Negative to load/charger




⚠️ IMPORTANT: Always connect the battery terminals (B– to B10) in order before applying power or load. Incorrect wiring may cause permanent damage.

✅ Applications

•


  36V lithium battery packs (10S 18650, Li-ion, or Li-Po)





•


  E-bikes, e-scooters, hoverboards





•


  Portable energy storage systems





•


  Solar-powered battery banks





•


  Electric tools and mobility systems




💡 Benefits

•


  Reliable high-current output (30A continuous)





•


  Extends battery life with full safety protections





•


  Compact size for integration in custom battery packs





•


  Ideal for high-drain, rechargeable lithium systems





•


  Auto-recovery system in case of fault protection triggering
